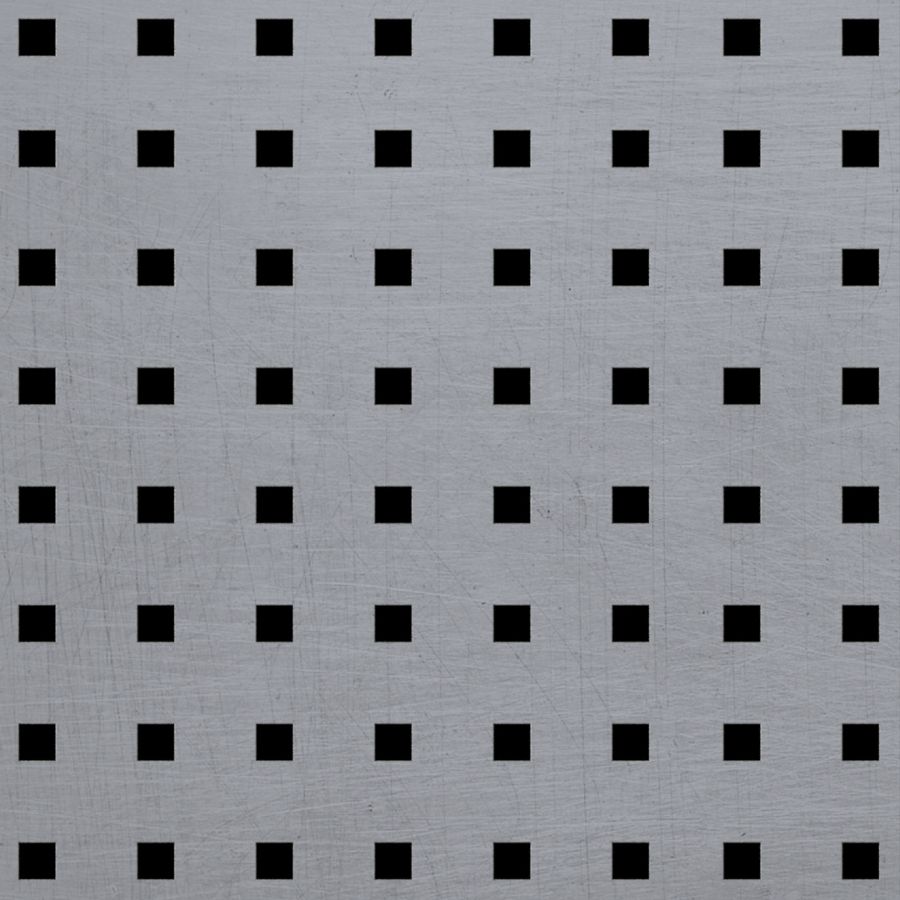

  4. McNICHOLS® Perforated Metal Square, Aluminum, Alloy 5052-H32, .0320" Thick (20 Gauge), 1/4" Square on 3/4" Straight Centers, 11% Open Area
McNICHOLS® Perforated Metal Square, Aluminum, Alloy 5052-H32, .0320" Thick (20 Gauge), 1/4" Square on 3/4" Straight Centers, 11% Open Area, 17257532M7

McNICHOLS® Perforated Metal

Square, Aluminum, Alloy 5052-H32, .0320" Thick (20 Gauge), 1/4" Square on 3/4" Straight Centers, 11% Open Area
McNICHOLS® Perforated Metal, Square, Aluminum, Alloy 5052-H32, Mill Finish, .0320" Thick (20 Gauge), 1/4" Square on 3/4" Straight Centers, 1/2" Bar Width, 1.78 Holes Per Square Inch (HPSI), Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 11% Open Area

ITEM 17257532M7 - 48" x 24"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 17257532M7
Product Line Perforated Metal
Hole Type Square
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 5052-H32 (5052H32)
Material Finish Mill Finish
Gauge/Thickness .0320" Thick (20 Gauge)
Hole Pattern 1/4" Square on 3/4" Straight Centers
Hole Size 1/4"
Hole Centers 3/4"
Bar Width 1/2"
Hole Arrangement Straight Centers
Holes Per Square Inch (HPSI) 1.78
Straight Rows Parallel to Width and Length of Sheet
Margins Parallel to Width Sheared Through Both Ends
Margins Parallel to Length Minimum Solid Both Sides
End Pattern Sheared Through Both Ends
Percent Open Area 11%
Weight 0.42 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length) 48" x 24"; 48" x 120"
