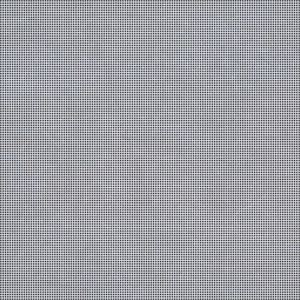

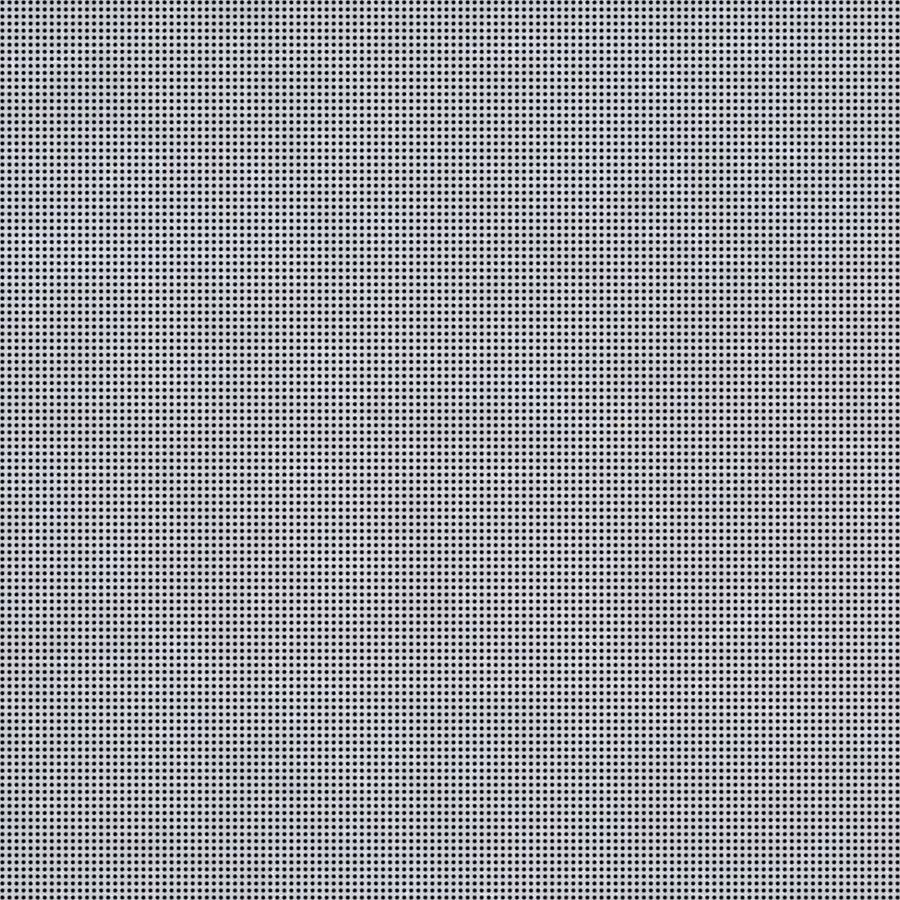

  4. McNICHOLS® Perforated Metal Round, Aluminum, Alloy 3003-H14, .0320" Thick (20 Gauge), 0.033" Round on 0.050" Straight Centers, 34% Open Area
McNICHOLS® Perforated Metal Round, Aluminum, Alloy 3003-H14, .0320" Thick (20 Gauge), 0.033" Round on 0.050" Straight Centers, 34% Open Area, 1799503238
McNICHOLS® Perforated Metal Round, Aluminum, Alloy 3003-H14, .0320" Thick (20 Gauge), 0.033" Round on 0.050" Straight Centers, 34% Open Area, 1799503238

McNICHOLS® Perforated Metal

Round, Aluminum, Alloy 3003-H14, .0320" Thick (20 Gauge), 0.033" Round on 0.050" Straight Centers, 34% Open Area
McNICHOLS® Perforated Metal, Round, Aluminum, Alloy 3003-H14, Mill Finish, .0320" Thick (20 Gauge), 0.033" Round on 0.050" Straight Centers, 0.017" Bar Width, 397.50 Holes Per Square Inch (HPSI), Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 34% Open Area

ITEM 1799503238 - 36" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 1799503238
Product Line Perforated Metal
Hole Type Round
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 3003-H14 (3003H14)
Material Finish Mill Finish
Gauge/Thickness .0320" Thick (20 Gauge)
Hole Pattern 0.033" Round on 0.050" Straight Centers
Hole Size (Diameter) 0.033"
Hole Centers 0.050"
Bar Width 0.017"
Hole Arrangement Straight Centers
Holes Per Square Inch (HPSI) 397.50
Straight Rows Parallel to Width and Length of Sheet
Margins Parallel to Width Sheared Through Both Ends
Margins Parallel to Length Minimum Solid Both Sides
End Pattern Sheared Through Both Ends
Percent Open Area 34%
Weight 0.30 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length) 36" x 96"

Overview

At McNICHOLS, you can choose from the largest inventory of Perforated Metal products in North America. Available in a variety of hole sizes and percentages of open area, with aesthetic appeal plus a high strength-to-weight ratio, Perforated Metal is used for sound enclosures, partitions, sign panels, machine guards, screening, filters, and more. Perforated hole types include Round, Square, Slotted, Hexagonal, and Designer. Materials include Aluminum, Carbon Steel (Plain Steel), Galvanized Steel, Stainless Steel, and Plastic.

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Perforated Metal product for your project or application. Please specify:

1

Application

Product applications/uses include displays, exhibits, fixtures, partitions, cabinet inserts, guards, furniture, building facades, infill panels, screening, sign panels, filters, baskets, ventilation, security enclosures, and more. We invite you to browse Perforated Metal applications in our Product and Application Gallery.

2

Hole Type

Choose from a wide variety of Round, Square, Slotted, Hexagonal, or Designer Perforated hole types.

3

Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel, or Plastic, taking into consideration climate or environmental realities. Inventory is typically “mill finish” unless otherwise specified. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Perforated Metal Resources landing page.

4

Material Gauge / Thickness

Decide the material gauge number or thickness in inches. The Gauges, Thicknesses & Weights by Primary Material table on the Perforated Metal Resources landing page has additional information.

5

Hole Pattern

Identify hole size (diameter), hole type (shape), hole center (spacing) and hole arrangement (staggered centers, straight centers, reverse staggered centers), or Designer Perforated series name and number.

6

Percent Open Area

Choose the percentage of open area desired in the Perforated Metal sheet or coil.

7

Margin / End Pattern

Specify solid margin preferences on width and/or length of sheet if required for your application. Most inventory 11 Gauge and lighter has minimum solid side margins running the length of the sheet and no end margins running the width of the sheet (material ends have holes that are sheared through). Sheets heavier than 11 Gauge typically have either a finished or unfinished pattern with corresponding end margins.

8

Product Size, Form & Quantity

Identify product size(s), form (typically supplied in sheets), and quantity desired, including cut-to-size pieces. Items that are 3/16" or thicker are identified as plate.

9

Special Requirements

Specify any requirements for special cut-to-size pieces, margin or edge treatments, finishing, leveling, fabrication, non-standard tolerances, etc. If your project calls for Infill Panels, an Infill Panel Worksheet is available in the Overview section on the Perforated Metal Resources landing page.

10

Accessories

Determine if Perforated Metal Accessories such as Angle, Flat Bar, or U-Edging framing solutions are required for your application.
