Understanding Trench Drains: A Comprehensive Guide for Effective Water Management
- August 26, 2024
- 8 min
What is a Trench Drain?
A trench drain is a specific type of floor drain containing a trough or channel-shaped body. It quickly removes surface water, protects utility lines, or contains chemical spills. In this blog, we will focus on the main parts of these systems, their advantages, and provide a step-by-step guide for installation.
Functionality
The primary function of trench drains is water management. These structures gather and move rainwater to a drain or another outlet, preventing water from building up. This function is crucial for maintaining dry and safe surfaces, reducing the risk of slips, flooding, and water damage. Additionally, designers can create these systems that blend seamlessly with the surrounding environment, providing both functionality and aesthetic appeal.
Applications
Trench drains are widely used across various settings. In commercial environments, they are common in parking lots, airports, and warehouses, where they handle large volumes of water. Residential uses include driveways, patios, and swimming pool areas to prevent flooding and direct water away from structures. In factories and processing plants, trench grates help control water, chemicals, and fluids to keep things safe and efficient.
How do Trench Drains Work?
Trench drains are essential for effective water management in various settings, helping to maintain safe and dry surfaces. It’s beneficial to cover pipelines and sewer ducts while also filtering liquid in the process.
Water Collection and Conveyance

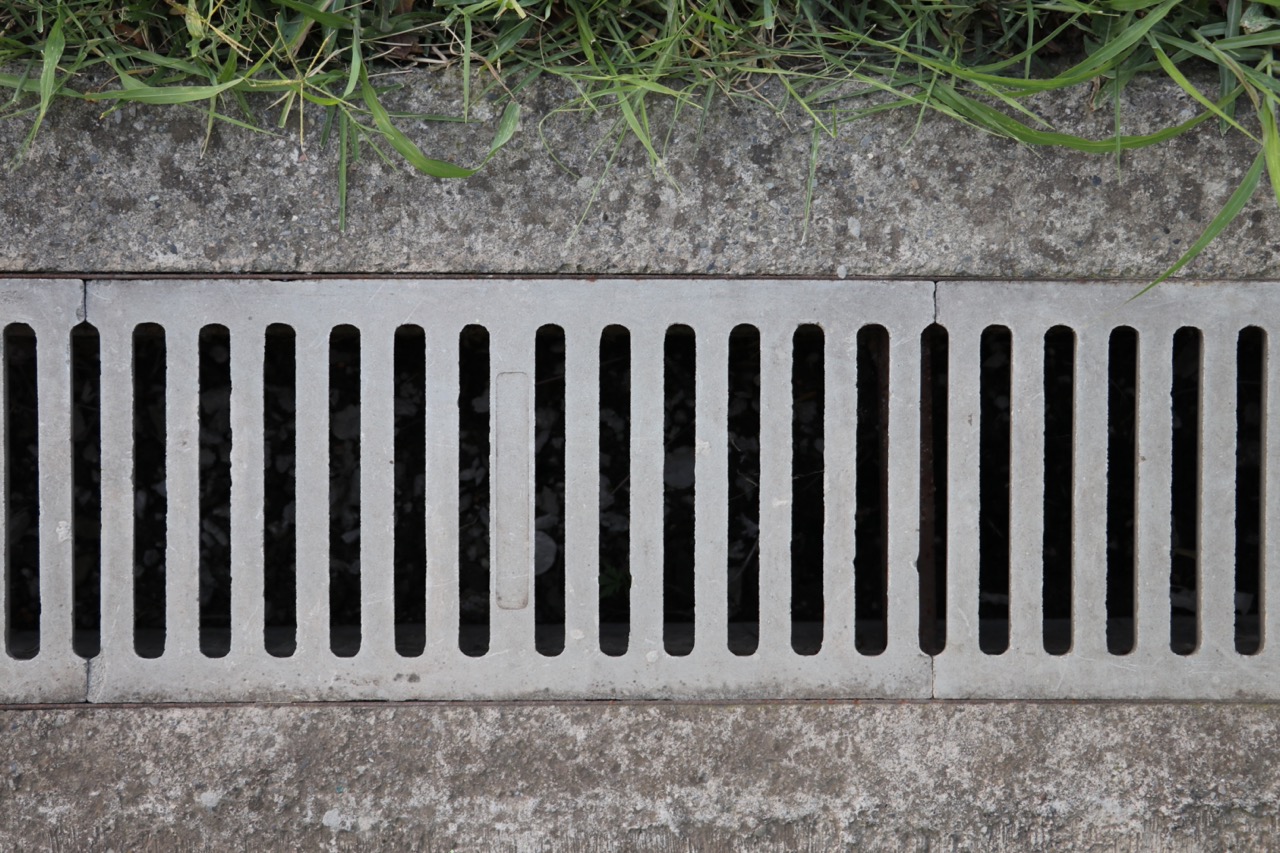

When it rains or when water is present on the surface, the water flows into the trench grate through the openings in the grate. The grated cover prevents large debris from entering the trench while allowing water to pass through easily.
Once the water enters the trench, it is directed through the channel by gravity. The slight slope of the trench ensures that water flows towards a designated outlet. This slope is a critical design feature that permits efficient drainage.
Discharge
The trench drain connects to a larger drainage system or sewer line. For proper flow, the water in the trench goes through a channel and into a drainage system. Then, the system sends it to a disposal point like a storm sewer, retention pond, or designated area.
Maintenance is Key
To maintain the trench drain system's efficiency, you need to perform regular maintenance to ensure the trench drain system continues to function properly. This includes cleaning the grates to remove debris, checking the channel for blockages, damage, or wear, and performing necessary repairs as needed. Conducting proper maintenance also helps guarantee that the system remains effective in managing surface water and preventing flooding.
How to Install Trench Drains
Installing these systems involves several key steps. Installation begins with thorough planning and design. First, conduct a site assessment to understand the area's water flow patterns and drainage needs.
Choose a trench grate system that fits your needs, considering load capacity and water volume, and use the assessment to make an informed decision. A critical design aspect is verifying the trench has the necessary slope (typically 1-2%) to facilitate proper drainage.
1. Excavation

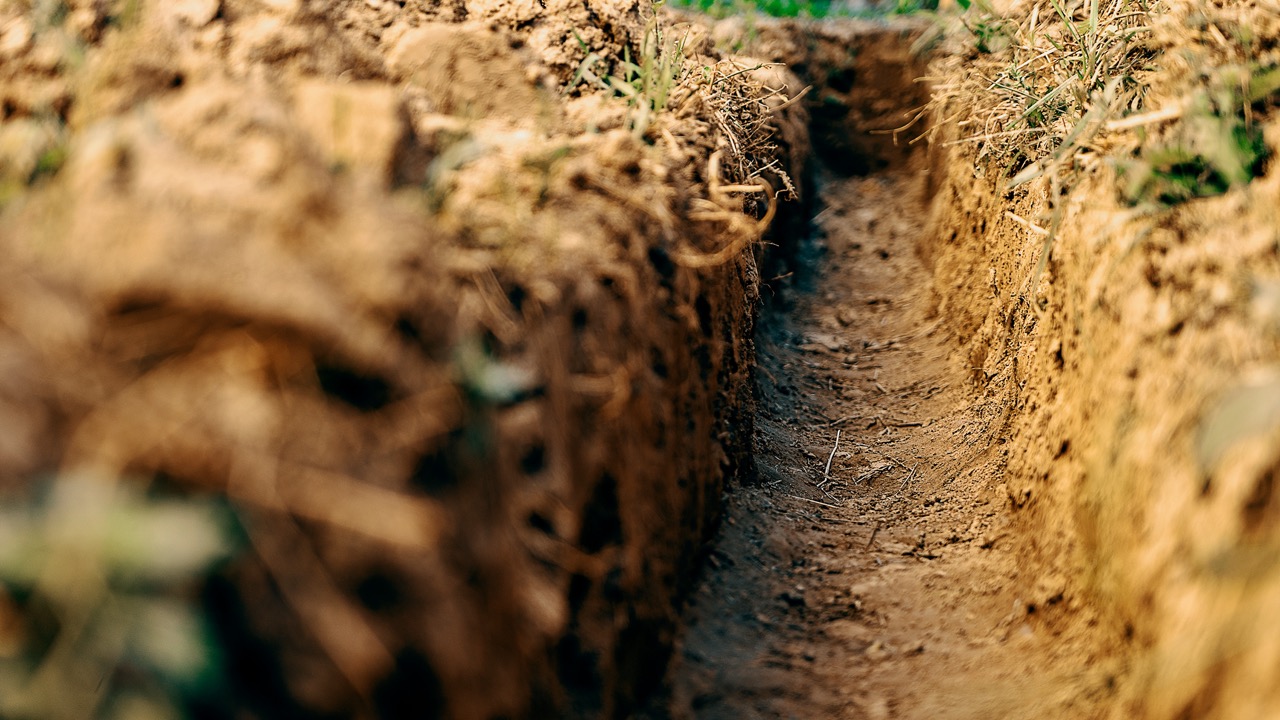

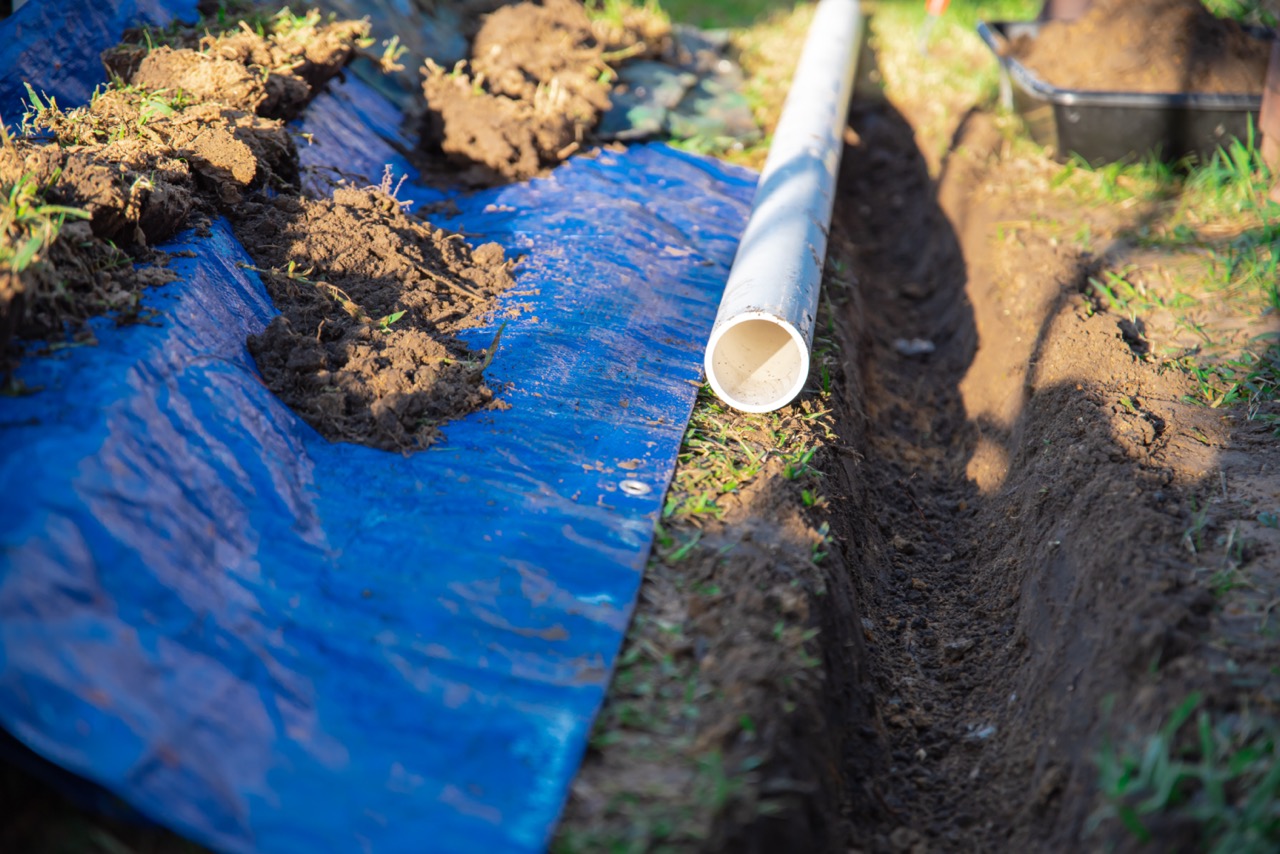

Next, mark the trench drain’s path on the ground, outlining where the trench will be installed. Excavate the trench to the required depth and width, considering the dimensions of the trench drain and the need for a stable bedding layer. The depth should accommodate both the drain body and the desired slope to ensure efficient water flow.
2. Preparation of the Base
To create a strong base, lay down compacted gravel or concrete before installing the trench grate. The thickness of this base layer depends on the soil conditions and the load requirements. Lastly, for this step, make sure the base is level and smooth, maintaining the correct slope for optimal water drainage.
3. Setting the Trench Drain
After prepping, you should position the channel systems into the excavated trench, confirming that they are properly aligned and connected. Some systems feature interlocking joints or connectors to secure the sections together. Make sure the trench drain is level with the ground by adding or removing material as needed. Use rebar stakes or other methods to secure the drain in place to prevent movement during backfilling and pouring concrete.
4. Connecting to the Drainage System
The next step is to connect the trench drain to the existing drainage system, storm sewer, or other discharge point. This typically involves attaching a pipe or fitting to the outlet end of the trench drain. Make sure you seal all connections properly to prevent leaks and ensure efficient water flow.
5. Backfilling and Surface Finishing
Once the drainage system is in order, it’s critical to fill the sides of the channel with gravel, sand, or concrete for stability. To prevent settling, be sure to compact the filling material.
When installing a trench drain in a paved area, pour concrete around it to make sure it is level with the surface. This will help integrate the drain with the surrounding area. Restore any disturbed surfaces around the trench drain, such as asphalt, paving stones, or landscaping, to their original condition.
6. Final Checks and Grate Installation
After the installation, inspect the entire trench drain system to guarantee everything is properly aligned, secure, and functioning as intended. Install the grates on top of the trench drain, making sure they are securely in place and level with the surrounding surface.
Tips for Successful Installation
Maintaining the correct slope throughout the installation is crucial for efficient water drainage. Further, using high-quality materials suitable for the application can make or break the system’s durability and longevity.
For large or complex installations, it's best to hire a professional contractor with experience in trench drain systems. This will help ensure that the project runs smoothly, saves time, and prevents costly mistakes. Their expertise can also help in designing and implementing the trench grate system effectively.
