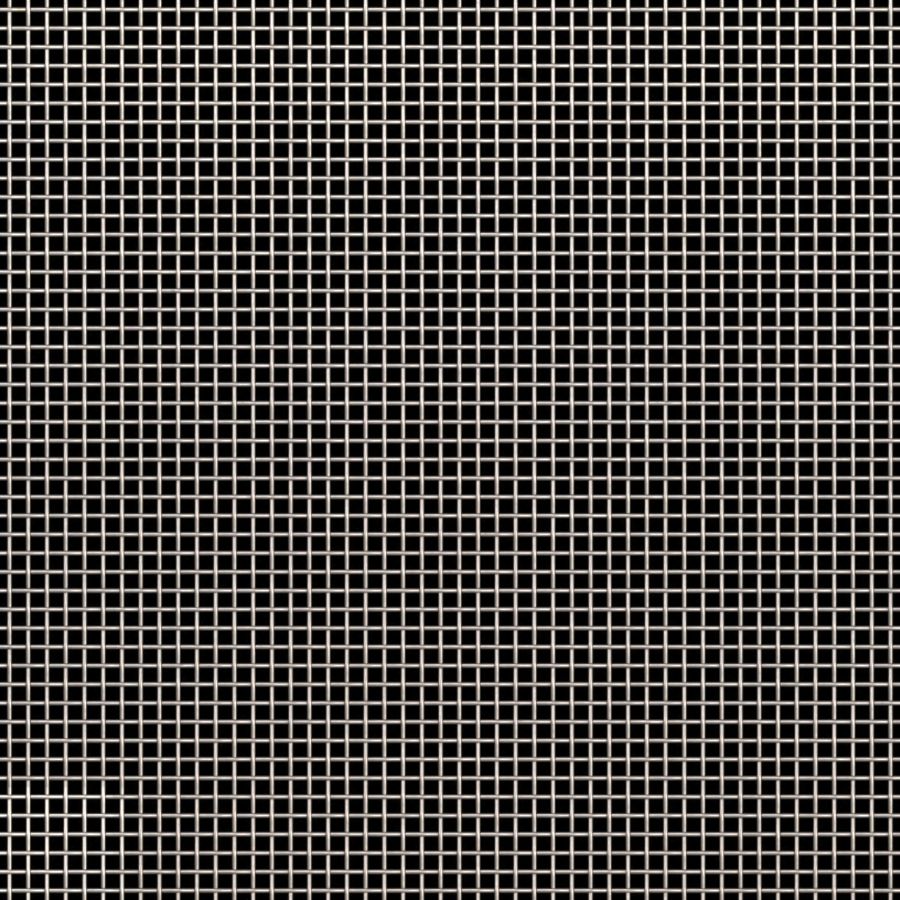

McNICHOLS® Wire Mesh

Square, Stainless Steel, Type 316, Woven - Plain Weave, 8 x 8 Mesh (Square), 0.0970" x 0.0970" Opening (Square), 0.028" Thick (22-1/4 Gauge) Wire Diameter, 60% Open Area
McNICHOLS® Wire Mesh, Square, Stainless Steel, Type 316, Mill Finish, Woven - Plain Weave, 8 x 8 Mesh (Square), 0.0970" x 0.0970" Opening (Square), 0.028" (22-1/4 Gauge) Thick Wire Diameter, 60% Open Area

ITEM 3108284810 - 48" x 1200"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 3108284810
Product Line Wire Mesh
Mesh Type Square Weave
Construction Type Woven
Primary Material Stainless Steel (SS)
Alloy, Grade or Type Type 316 (316)
Weave or Trim Type Woven - Plain Weave
Mesh Size 8 x 8
Mesh Shape Square
Opening Size 0.0970" x 0.0970"
Opening Shape Square
Wire Diameter/Wire Gauge 0.028" Thick (22-1/4 Gauge)
Wire Diameter/Wire Gauge Chart View
Material Finish Mill Finish
Percent Open Area 60%
Weight 0.42 Lbs./Square Foot
Product Form Coil
Sizes (Width x Length) 48" x 1200" (Cut Lengths Available)
