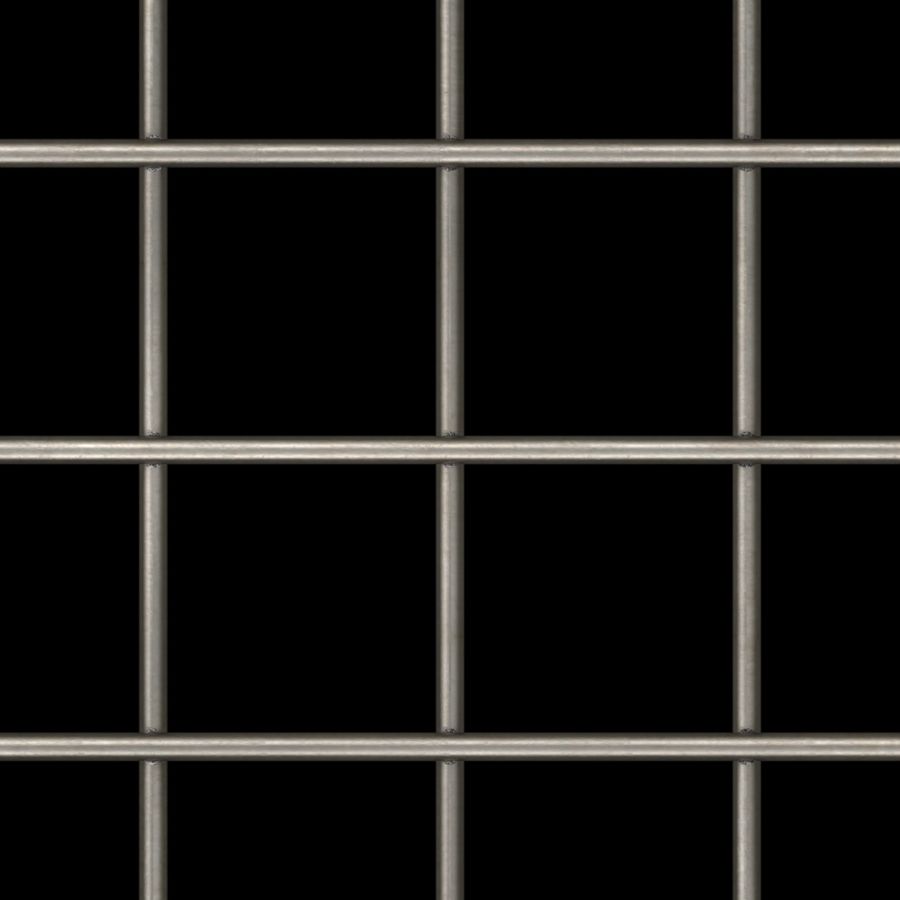

McNICHOLS® Wire MeshSquare, Carbon Steel, Cold Rolled, Welded - Trimmed, 2" x 2" Mesh (Square), 1.8130" x 1.8130" Opening (Square), 0.187" Thick (6-1/4 Gauge) Wire Diameter, 82% Open Area
ITEM 362088B062 - 72" x 144" - In-Stock!
ITEM 362088B062 - 72" x 144" - In-Stock!
|Product Line||Wire Mesh|
|Primary Material||Carbon Steel (CS)|
|Alloy, Grade or Type||Cold Rolled (CR)|
|Material Finish||Mill Finish|
|Weave or Trim Type||Welded - Trimmed|
|Mesh Size||2" x 2"|
|Opening Size||1.8130" x 1.8130"|
|Wire Diameter/Wire Gauge||0.187" Thick (6-1/4 Gauge)|
|Wire Diameter/Wire Gauge Chart||View|
|Pitch Size||2.0000" x 2.0000"|
|Wire Ends||Trimmed on all Four Sides of Sheet with Standard Overhang of 1/8" or Less|
|Percent Open Area||82%|
|Weight||1.15 Lbs./Square Foot|
PDF - Download Now |
DWG - Please Log In
|Sizes (Width x Length)||
72" x 144" (Cut Sizes Available)
Wire Mesh has the strength to perform in industrial settings, the aesthetics to enhance architectural designs, and the versatility to fulfill a variety of functions. Routinely incorporated in signs, railing infills, cabinet inserts, plant screens and in other applications, this dynamic product family suits nearly any design. Its lightweight properties make it easy to cut-to-size and handle during installation. Our Wire Mesh products are available in multiple material types, including Aluminum, Brass, Carbon Steel, Copper, Stainless Steel and more! McNICHOLS carries an extensive selection of mesh and opening sizes, wire diameters and patterns. We also carry VINYLMESH™—a Galvanized Steel mesh that is PVC Coated for weather and corrosion resistance. If you are looking for a three-dimensional plant screen trellis option, look no further than ECO-MESH®!
The information provided below is your guide for choosing the right McNICHOLS® Wire Mesh product for your project. Ordering information for McNICHOLS ECO-MESH® is available by selecting the following link: Specifying & Ordering ECO-MESH®
Product applications/uses include screens, partitions, facades on parking garages and buildings, cabinet inserts, enclosures and more. We invite you to browse Wire Mesh applications in our Product and Application Gallery.
Choose from a wide variety of Square, Rectangular, ECO-MESH® and Designer Mesh types.
Select either a Woven or Welded construction type for your design.
Select the primary material type including Aluminum, Bronze, Carbon Steel, Copper, Galvanized Steel or Stainless Steel, taking into consideration climate or environmental realities. Inventory is typically “mill finish” unless otherwise specified. Some items in inventory have a vinyl coating or can be powder coated. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Wire Mesh Resources landing page.
Choose either woven construction and type of weave (e.g. plain, lockcrimp, intercrimp), welded construction either trimmed or untrimmed or a Designer Mesh series name and number (e.g. TECHNA™ 3155).
Select the opening size of the Wire Mesh item. Opening size is the clear space between wires and is measured from the inside of one wire to the inside of an adjacent wire. For rectangular opening items, a width and length opening measurement is required.
In addition to selecting an opening size, many Wire Mesh items also have a mesh size which is determined by measuring the number of openings per lineal inch from the center of one wire to the center of an adjacent wire.
Choose the Wire Mesh diameter thickness (in inches) or wire gauge. We provide more information on wire diameter and wire gauge equivalents in the link provided in the Charts section on the Wire Mesh resources landing page.
Identify the percentage of open area desired in the sheet or coil.
Number of coils and/or sheets including cut-to-size pieces and stub preferences.
Specify any requirements such as fabrication, edge treatments, finishing, non-standard tolerances, etc. If your project calls for Infill Panels, an Infill Panel Worksheet is available in the Overview section on the Wire Mesh Resources landing page.
Determine if Wire Mesh Accessories such as Angle, Flat Bar or U-Edging framing solutions are required for your application.
View McNICHOLS® Wire Mesh Resources on tolerances, types, available sizes and more!
