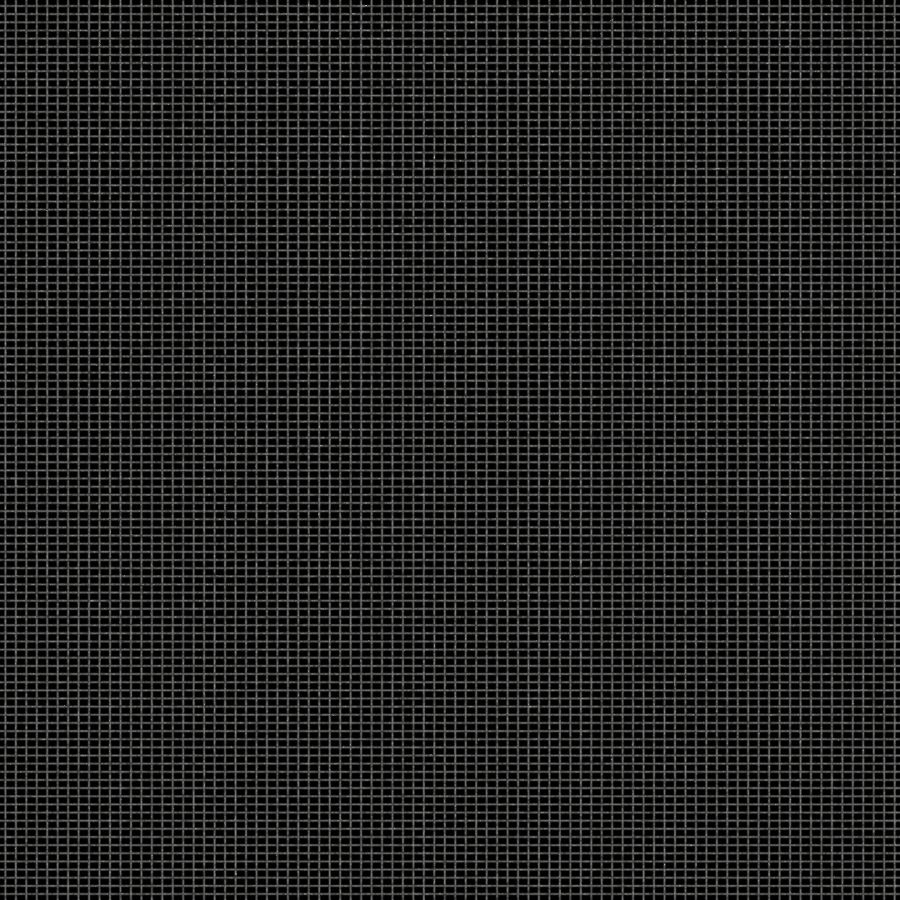

McNICHOLS® Wire Mesh

Rectangular, Carbon Steel, Epoxy Coated, Woven - Plain Weave, 18 x 14 Mesh (Rectangular), 0.0466" x 0.0624" Opening (Rectangular), 0.009" Thick (36 Gauge) Wire Diameter, 72% Open Area
McNICHOLS® Wire Mesh, Rectangular, INSECT SCREEN, Carbon Steel, Epoxy Coated, Mill Finish, Woven - Plain Weave, 18 x 14 Mesh (Rectangular), 0.0466" x 0.0624" Opening (Rectangular), 0.009" (36 Gauge) Thick Wire Diameter, Long Way of Opening (LWO) Parallel to Width of Sheet, 72% Open Area

ITEM 3008094810 - 48" x 1200"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 3008094810
Product Line Wire Mesh
Mesh Type Rectangular
Series Name INSECT SCREEN
Construction Type Woven
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Epoxy Coated (EPXY)
Weave or Trim Type Woven - Plain Weave
Mesh Size 18 x 14
Mesh Shape Rectangular
Opening Size 0.0466" x 0.0624"
Opening Shape Rectangular
Wire Diameter/Wire Gauge 0.009" Thick (36 Gauge)
Wire Diameter/Wire Gauge Chart View
Long Way of Opening (LWO) Parallel to Width of Coil
Material Finish Mill Finish
Percent Open Area 72%
Weight 0.09 Lbs./Square Foot
Product Form Coil
Sizes (Width x Length) 48" x 1200" (Cut Lengths Available)
