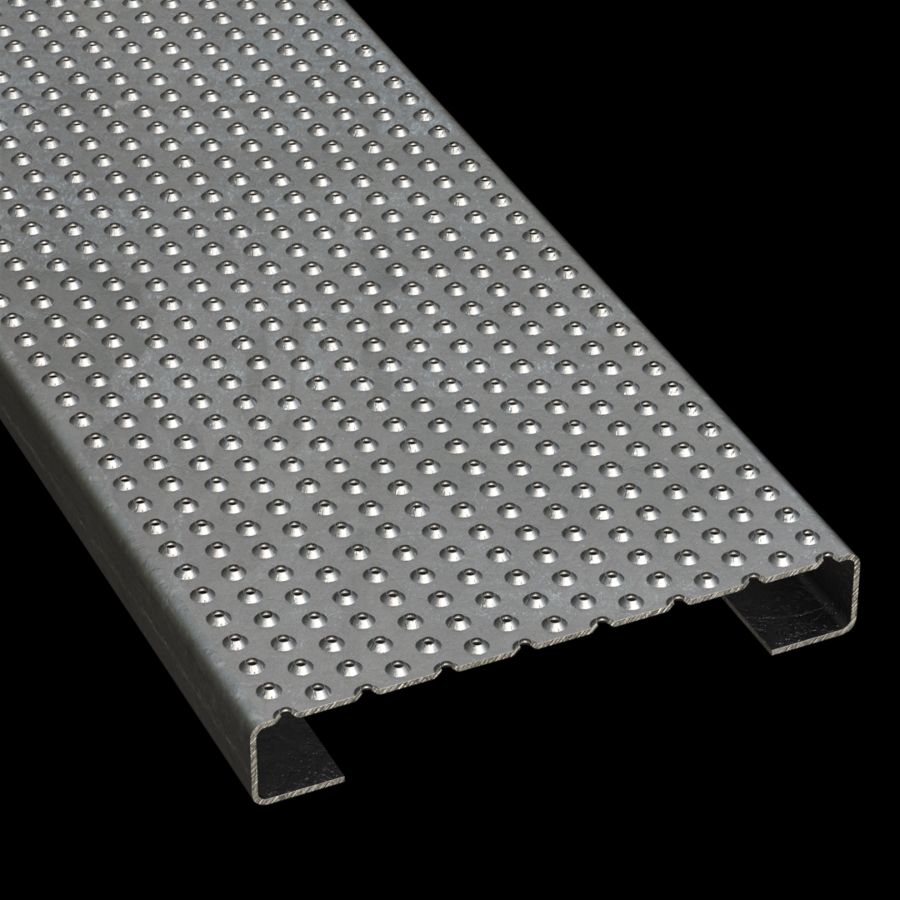

McNICHOLS® Plank Grating Plank, TRACTION TREAD™, ADA, Galvanized Steel, G90, 13 Gauge (.0934" Thick), Button-Top (10" Width), 1-1/2" Channel Depth, Slip-Resistant Surface, 4% Open Area, M2G0151310
BUY THIS SIZE ONLINE
Please Request Quote

McNICHOLS® Plank Grating

Plank, TRACTION TREAD™, ADA, Galvanized Steel, G90, 13 Gauge (.0934" Thick), Button-Top (10" Width), 1-1/2" Channel Depth, Slip-Resistant Surface, 4% Open Area

McNICHOLS® Plank Grating, Plank, TRACTION TREAD™, ADA Compliant, Galvanized Steel, G90, Mill Finish, 13 Gauge (.0934" Thick), Button-Top (10" Width), 1-1/2" Channel Depth, Slip-Resistant Surface, Holes Sheared Through Both Ends of Plank Parallel to Width of Plank, (ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel), 4% Open Area

ITEM M2G0151310 - 10" x 120" - In-Stock! print icon

print icon
Please Request Quote
print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon

SPECIFICATIONS

Overview

Ordering

Charts

Tables
SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number M2G0151310
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - TRACTION TREAD™ - ADA
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type G90 (G90)
Material Finish Mill Finish
Gauge/Thickness 13 Gauge (.0934" Thick)
Surface Profile Button-Top (10" Width) TRACTION TREAD™ Plank
Surface Width 10"
Channel Depth 1-1/2"
Product Surface Slip-Resistant
Straight Rows Parallel to Length of Plank
End Pattern Sheared Through Both Ends
ADA Compliant ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel
Percent Open Area 4%
Weight 4.60 Lbs./Linear Foot
Product Form Plank
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Width x Length)
10" x 120" (Cut Lengths Available)
Load Table View

Overview

Plank Grating facilitates secure footing on rooftop walkways, catwalks, stairs, and other surface applications when safety is critical. This Safety Grating product line is lightweight and easy to cut and fabricate. Made by punching and forming metal, McNICHOLS® Plank Grating comes in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel, and Stainless Steel and we carry the nation's largest inventory of Plank brand names including GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK®, and DIAMONDBACK®. Different construction types consist of Plank, Walkway (both with Heavy-Duty options), Interlocking, Extruded Interlocking, and Heavy-Duty Plank. Additional construction types consist of several Ladder Rung Plank styles, as well as Stair Tread Plank Grating options. An array of heights, widths, surface profiles, thicknesses, and more are all part of our complete line of Plank Grating Hole Products!
