McNICHOLS® Plank Grating

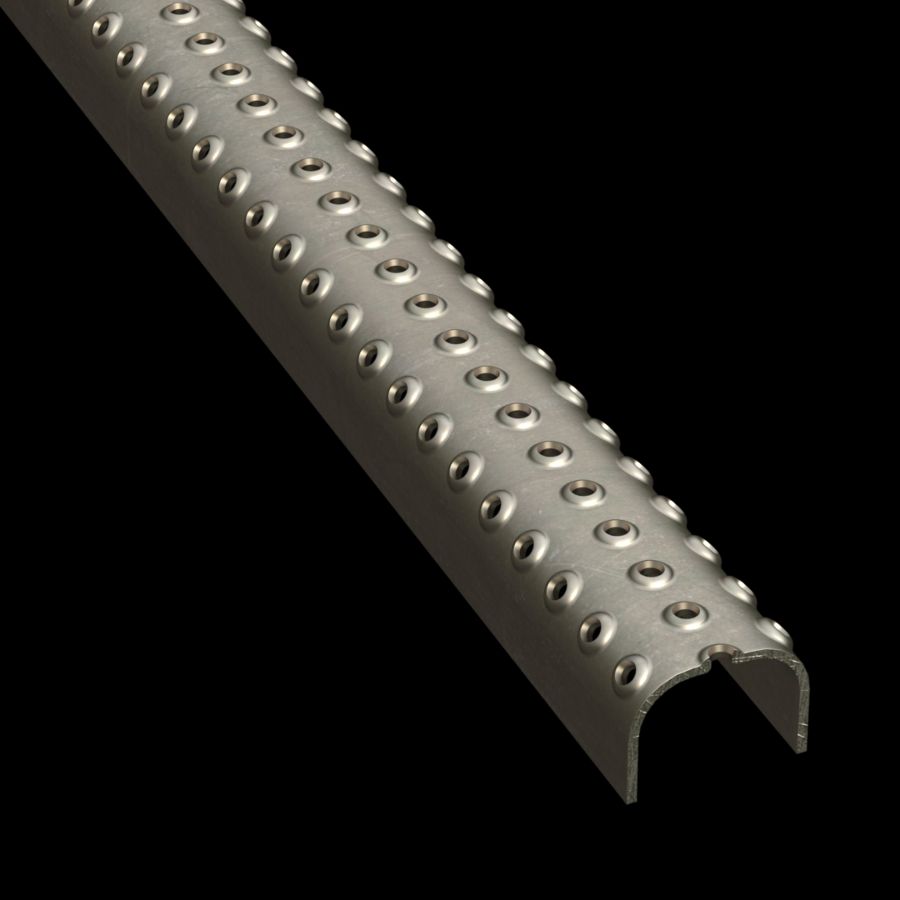

Ladder Rung Plank, TRACTION TREAD®, Carbon Steel, 13 Gauge (.0897" Thick), 3-Row (1-5/8" Width), 1-1/8" Channel Depth, Slip-Resistant Surface, 3% Open Area
McNICHOLS® Plank Grating, Ladder Rung Plank, TRACTION TREAD®, Carbon Steel, Hot Rolled Pickled and Oiled, Mill Finish, 13 Gauge (.0897" Thick), 3-Row (1-5/8" Width), 1-1/8" Channel Depth, Slip-Resistant Surface, 3% Open Area, 1.6250" x 48.7500"

ITEM M6LR034899 - 1-5/8" x 48-3/4"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number M6LR034899
Product Line Ladder Rungs
Construction Type Ladder Rung Plank
Series Type & Name Ladder Rung Plank - TRACTION TREAD®
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 13 Gauge (.0897" Thick)
Surface Profile 3-Row (1-5/8" Width) TRACTION TREAD® Ladder Rung Plank
Surface Width 1-5/8"
Channel Depth 1-1/8"
Product Surface Slip-Resistant
Percent Open Area 3%
Weight 4.0 Lbs./Each
Product Form Rung Plank
Sizes (Width x Length) 1-5/8" x 48-3/4"
Load Table View
