McNICHOLS® Expanded Metal

Standard, Carbon Steel, Cold Rolled, 1/2 #18 Standard, 70% Open Area

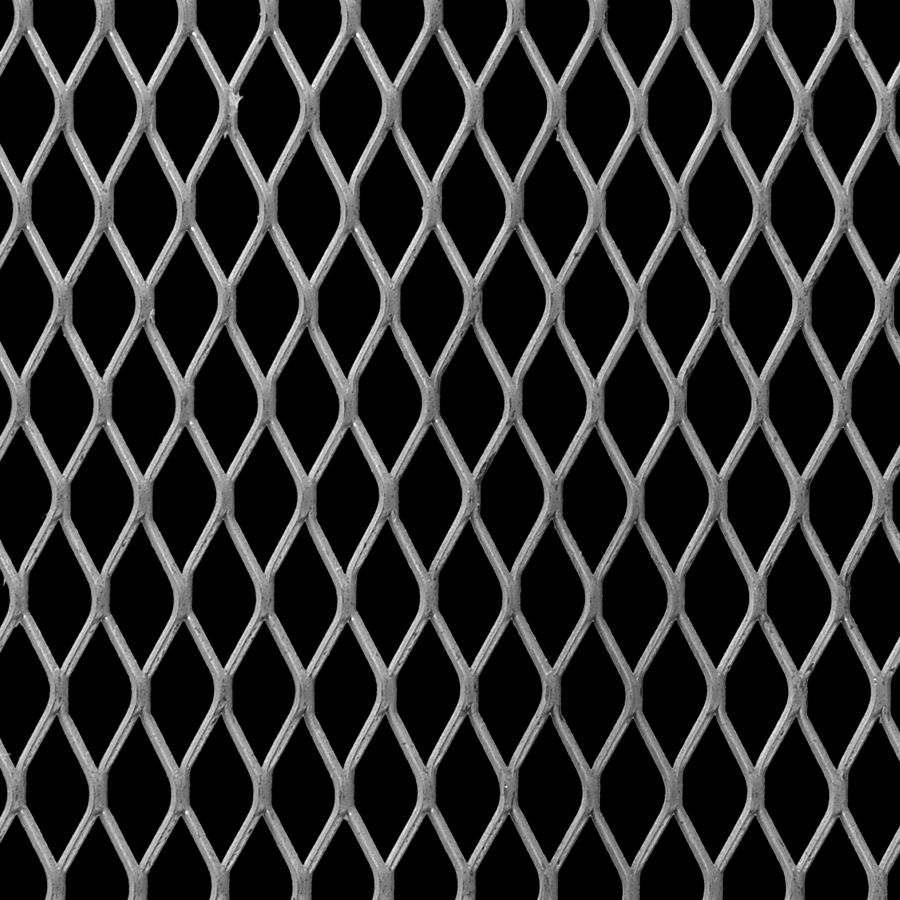

McNICHOLS® Expanded Metal, Standard, Carbon Steel, Cold Rolled, Mill Finish, 1/2 #18 Standard, 0.500" Short Way of Design (SWD), 1.200" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 70% Open Area

ITEM 4600121848 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 4600121848
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1/2 #18 Standard
Opening Size - Short Way of Opening (SWO) 0.429"
Opening Size - Long Way of Opening (LWO) 0.937"
Design Size - Short Way of Diamond (SWD) 0.500"
Design Size - Long Way of Diamond (LWD) 1.200"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 24.0
Diamonds per Foot - Long Way of Diamond (LWD) 10.0
Strand Thickness 0.044"
Strand Width 0.078"
Overall Thickness 0.155"
Percent Open Area 70%
Weight 0.56 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
