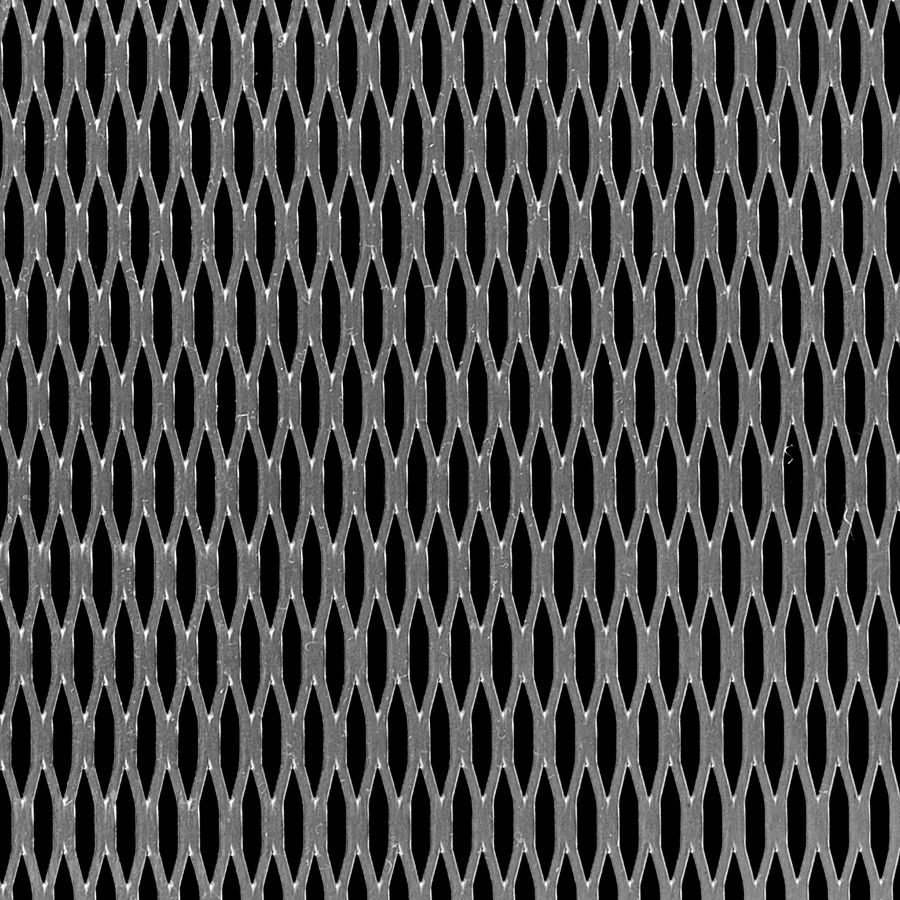

McNICHOLS® Expanded Metal

Flattened, Carbon Steel, Cold Rolled, 1/4 #20 Flattened, 55% Open Area
McNICHOLS® Expanded Metal, Flattened, Carbon Steel, Cold Rolled, Mill Finish, 1/4 #20 Flattened, 0.312" Short Way of Design (SWD), 1.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 55% Open Area

ITEM 5600142048 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 5600142048
Product Line Expanded Metal
Expanded Type Flattened
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1/4 #20 Flattened
Opening Size - Short Way of Opening (SWO) 0.157"
Opening Size - Long Way of Opening (LWO) 0.772"
Design Size - Short Way of Diamond (SWD) 0.312"
Design Size - Long Way of Diamond (LWD) 1.000"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 38.5
Diamonds per Foot - Long Way of Diamond (LWD) 12.0
Strand Thickness 0.031"
Strand Width 0.079"
Overall Thickness 0.031"
Percent Open Area 55%
Weight 0.62 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
