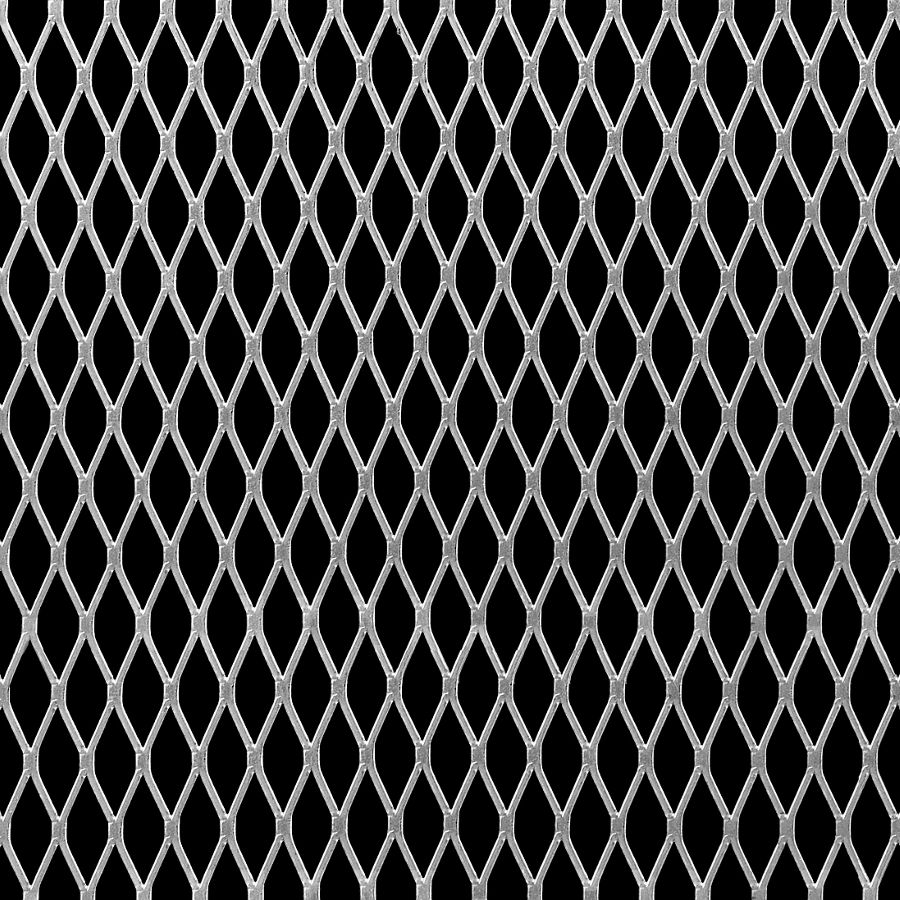

McNICHOLS® Expanded Metal

Flattened, Carbon Steel, Cold Rolled, 1/2 #20 Flattened, 71% Open Area
McNICHOLS® Expanded Metal, Flattened, Carbon Steel, Cold Rolled, Mill Finish, 1/2 #20 Flattened, 0.500" Short Way of Design (SWD), 1.250" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 71% Open Area

ITEM 5600122048 - 48" Width x 96" Length




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Product Line Expanded Metal
Expanded Type Flattened
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1/2 #20 Flattened
Opening Size - Short Way of Opening (SWO) 0.321"
Opening Size - Long Way of Opening (LWO) 0.920"
Design Size - Short Way of Diamond (SWD) 0.500"
Design Size - Long Way of Diamond (LWD) 1.250"
Long Way of Opening (LWO) Parallel to Length of Sheet
Strand Thickness 0.031"
Strand Width 0.079"
Overall Thickness 0.031"
Percent Open Area 71%
Weight 0.39 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
