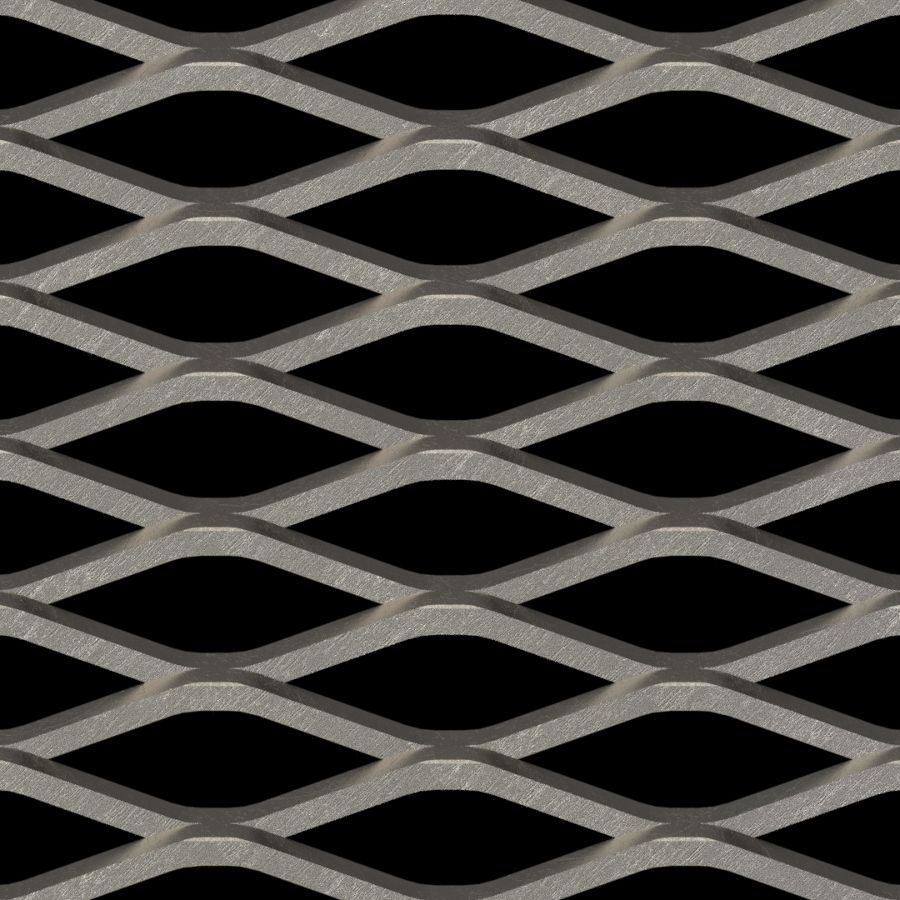

McNICHOLS® Expanded Metal

Catwalk, Carbon Steel, Hot Rolled Pickled and Oiled, 4.27 # Catwalk (Standard - Reverse Diamond), 58% Open Area
McNICHOLS® Expanded Metal, Catwalk, Carbon Steel, Hot Rolled Pickled and Oiled, Mill Finish, 4.27 # Catwalk (Standard - Reverse Diamond), 1.410" Short Way of Design (SWD), 4.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Width of Sheet, 58% Open Area

ITEM 7600007353 - 36" x 120"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 7600007353
Product Line Expanded Metal
Expanded Type Catwalk
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Style & Type 4.27 # Catwalk (Standard - Reverse Diamond)
Opening Size - Short Way of Opening (SWO) 1.000"
Opening Size - Long Way of Opening (LWO) 2.880"
Design Size - Short Way of Diamond (SWD) 1.410"
Design Size - Long Way of Diamond (LWD) 4.000"
Long Way of Opening (LWO) Parallel to Width of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 8.5
Diamonds per Foot - Long Way of Diamond (LWD) 3.0
Strand Thickness 0.250"
Strand Width 0.285"
Overall Thickness 0.625"
Percent Open Area 58%
Weight 4.10 Lbs./Square Foot
Product Form Sheet
Sizes (Width x Length) 36" x 120"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
Load Table View
