  4. McNICHOLS® Stair Treads Plank Grating, Plank, Stair Tread, GRIP STRUT®, Carbon Steel, HRPO, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 1-1/2" Channel Depth, Serrated Surface, No Nosing, CP-PG-415 Plank Grating Stair Tread Carrier Plates Attached, 45% Open Area
McNICHOLS® Stair Treads Plank Grating, Plank, Stair Tread, GRIP STRUT®, Carbon Steel, HRPO, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 1-1/2" Channel Depth, Serrated Surface, No Nosing, CP-PG-415 Plank Grating Stair Tread Carrier Plates Attached, 45% Open Area, 26T4151230
McNICHOLS® Stair Treads Plank Grating, Plank, Stair Tread, GRIP STRUT®, Carbon Steel, HRPO, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 1-1/2" Channel Depth, Serrated Surface, No Nosing, CP-PG-415 Plank Grating Stair Tread Carrier Plates Attached, 45% Open Area, 26T4151230

McNICHOLS® Stair Treads

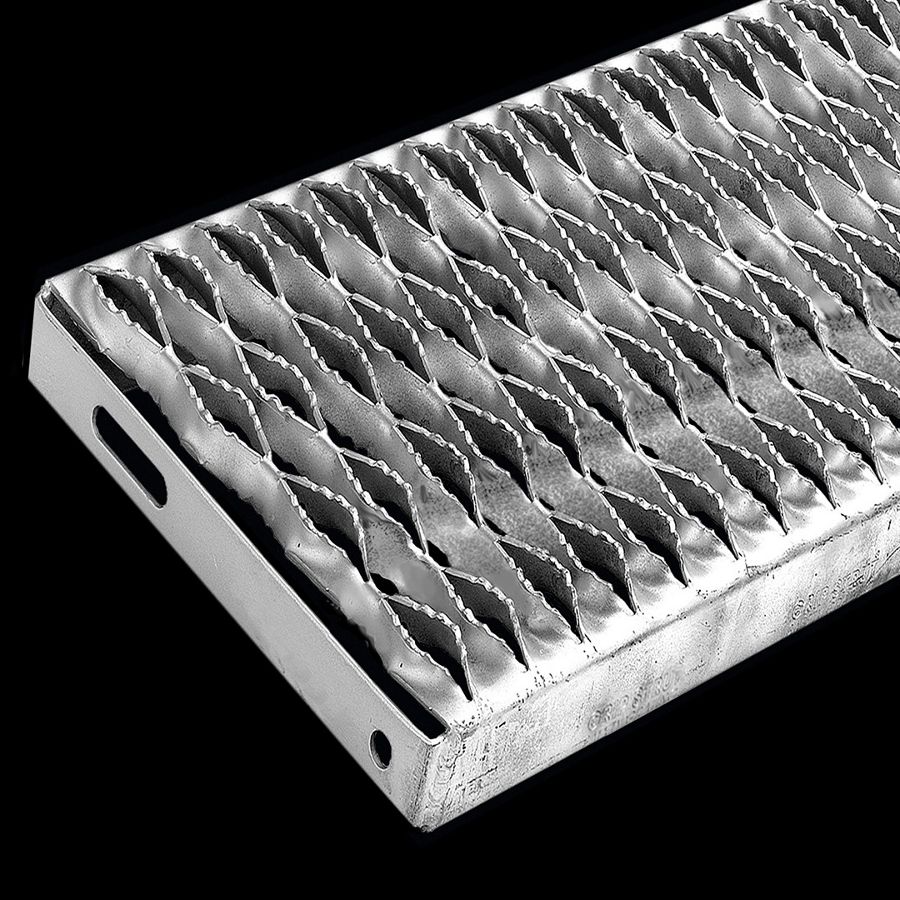

Plank Grating, Plank, Stair Tread, GRIP STRUT®, Carbon Steel, HRPO, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 1-1/2" Channel Depth, Serrated Surface, No Nosing, CP-PG-415 Plank Grating Stair Tread Carrier Plates Attached, 45% Open Area
McNICHOLS® Plank Grating, Plank, Stair Tread, GRIP STRUT®, Carbon Steel, Hot Rolled Pickled and Oiled (HRPO), Mill Finish, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 1-1/2" Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank Stair Tread, No Nosing, CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width) Attached, 45% Open Area

ITEM 26T4151230 - 9-1/2" x 30"




To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 26T4151230
Product Line Stair Treads
Main Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1046" Thick)
Surface Profile 4-Diamond (9-1/2" Width) GRIP STRUT® Plank
Surface Width 9-1/2"
Long Way of Opening (LWO) Parallel to Width of Plank Stair Tread
Channel Depth 1-1/2"
Product Surface Serrated
Nosing Type No Nosing
Carrier Plates Attached Yes
Carrier Plate Size CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width)
Carrier Plate Size Chart View
Percent Open Area 45%
Weight 13.20 Lbs./Tread
Product Form Tread
Sizes (Width x Length)
9-1/2" x 30"
Load Table View

Overview

McNICHOLS® Grating Stair Treads are assembled with the very best quality and craftsmanship available. Stair Treads are common in residential, industrial and architectural applications. Made from panels of Bar, Plank and Fiberglass Gratings, we are certain to have the right combination to meet your project requirements. We have several Bar Grating construction types (Standard-Duty Welded, Heavy-Duty Welded, Swage-Locked, Press-Locked) pre-assembled and in stock or we can fabricate your order quickly from full-sized panels in inventory. Bar Grating Treads are available in Aluminum, Carbon Steel, Powder Coated Carbon Steel, Galvanized Steel and Stainless Steel.

Our Stair Tread line of Hole Products also includes Aluminum, Carbon Steel, Galvanized Steel and Stainless Steel Plank Grating Treads in Plank, Heavy-Duty Plank or Extruded and Heavy-Duty Extruded Plank styles. We also supply a Stair Tread Plank item with a built-in shelf designed to accept Cast-Abrasive Nosing. McNICHOLS® carries the nation’s largest inventory of Safety Grating Stair Tread brand names like GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK® and DIAMONDBACK®. If your application requires Fiberglass Grating Stair Treads, we carry Molded Stair Tread Panels, Molded Stair Tread Cover Panels as well as DURAGRID® Pultruded I-Bar Stair Tread Panels in stock and ready to go!
