  4. McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 2-Diamond (4-3/4" Width), 1-1/2" Channel Depth, Serrated Surface, 34% Open Area

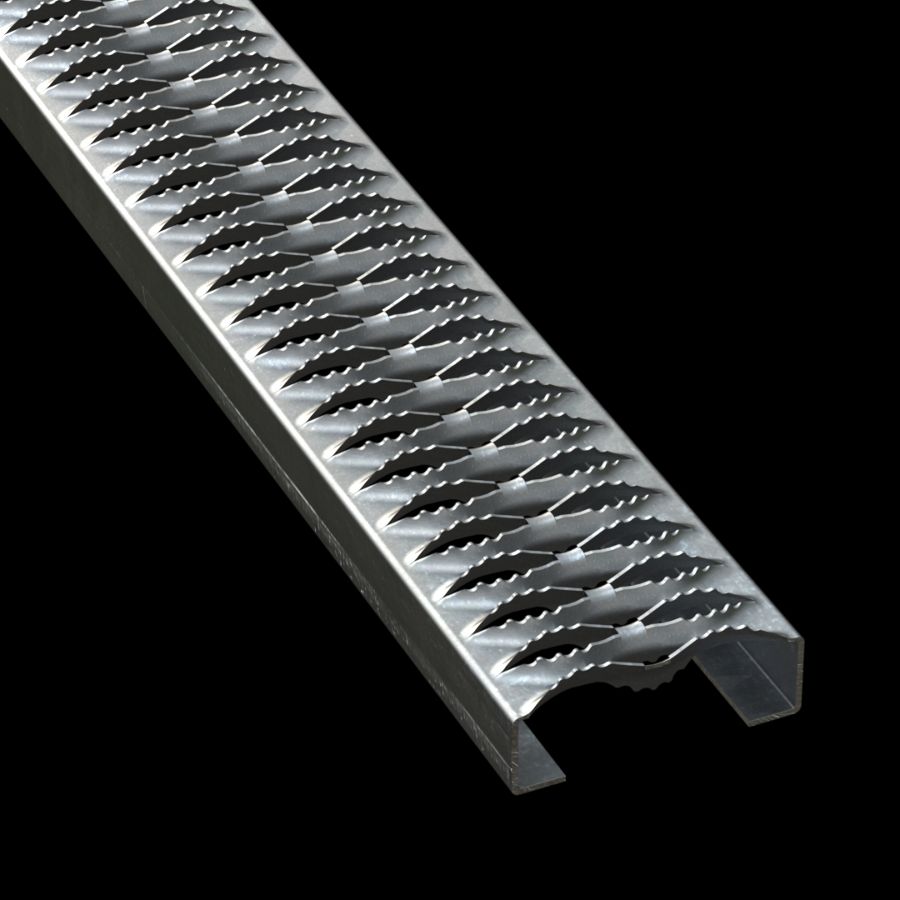

McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 2-Diamond (4-3/4" Width), 1-1/2" Channel Depth, Serrated Surface, 34% Open Area, 2402151212
McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 2-Diamond (4-3/4" Width), 1-1/2" Channel Depth, Serrated Surface, 34% Open Area, 2402151212

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 2-Diamond (4-3/4" Width), 1-1/2" Channel Depth, Serrated Surface, 34% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, Mill Finish, 12 Gauge (.1084" Thick), 2-Diamond (4-3/4" Width), 1-1/2" Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 34% Open Area

ITEM 2402151212 - 4-3/4" x 144"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 2402151212
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type ASTM A-653 G90 (A653G90)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Surface Profile 2-Diamond (4-3/4" Width) GRIP STRUT® Plank
Surface Width 4-3/4"
Long Way of Opening (LWO) Parallel to Width of Plank
Channel Depth 1-1/2"
Product Surface Serrated
Percent Open Area 34%
Weight 3.20 Lbs./Linear Foot
Product Form Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
4-3/4" x 144" (Cut Lengths Available)
Load Table View
