McNICHOLS® Accessories

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-215 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 4-1/2" Width)

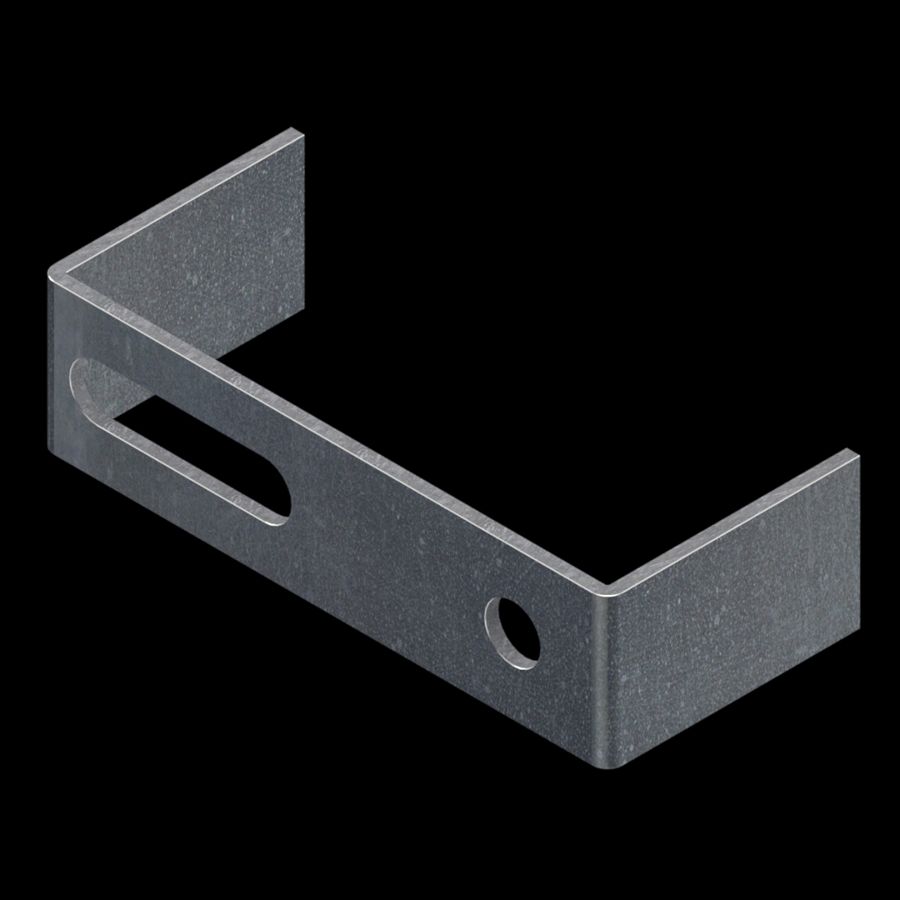

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), CP-PG-215 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth

ITEM 20CP215999 - 1-3/16" x 4-1/2" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 20CP215999	20CP215999
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Plank Grating	Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)	Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)	Pre-Galvanized (PG)
Material Finish Mill Finish	Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)	12 Gauge (.1084" Thick)
Accessory Profile CP-PG-215 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole	CP-PG-215 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-3/16"	1-3/16"
Width 4-1/2"	4-1/2"
Flange Size 2"	2"

Slot Size (Width x Height) 1-3/4" x 7/16"	1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 19/32"	19/32"
Ctr of Slot to Ctr of Bolt Hole 2-5/8"	2-5/8"
Ctr of Slot to Nearest Outside Edge 1-1/8"	1-1/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"	3/4"
Compatible With Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth	Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth
Weight 0.10 Lbs./Pair	0.10 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 1-3/16" x 4-1/2"	1-3/16" x 4-1/2"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
