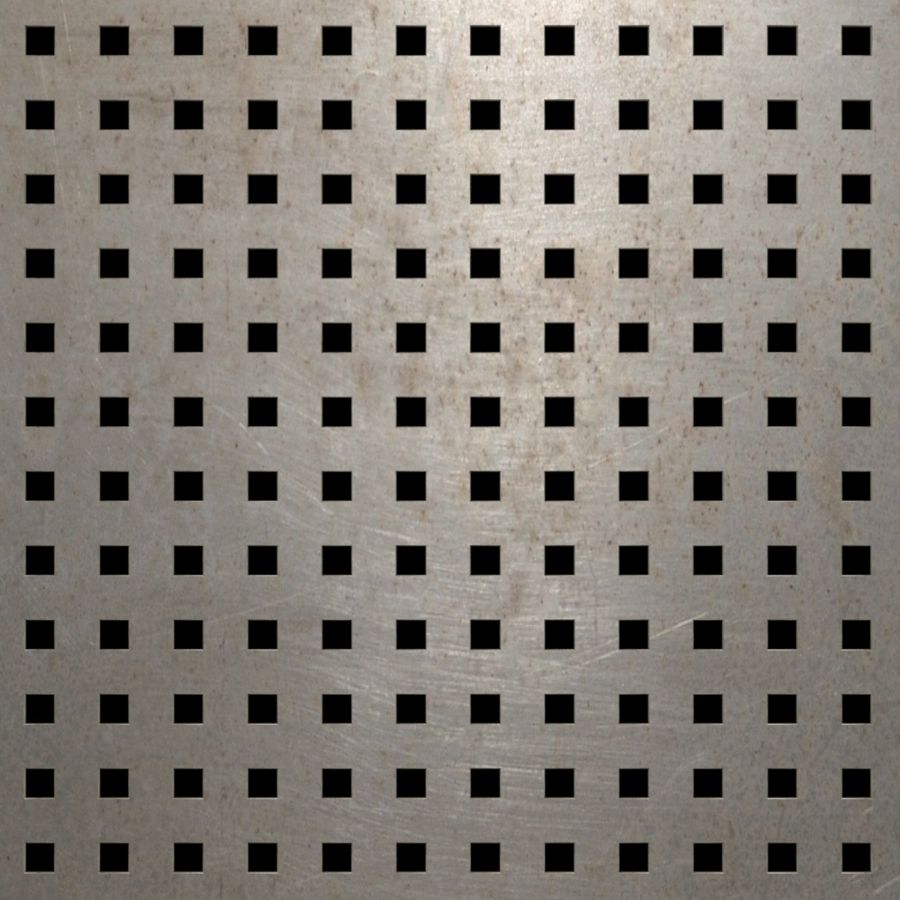

McNICHOLS® Perforated Metal

Square, Carbon Steel, Cold Rolled, 18 Gauge (.0478" Thick), 0.200" Square on 1/2" Straight Centers, 16% Open Area
McNICHOLS® Perforated Metal, Square, Carbon Steel, Cold Rolled, Mill Finish, 18 Gauge (.0478" Thick), 0.200" Square on 1/2" Straight Centers, 0.300" Bar Width, 4.0 Holes per Square Inch, Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 16% Open Area

ITEM 16951218M7 - 48" x 24"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 16951218M7
Product Line Perforated Metal
Hole Type Square
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Gauge/Thickness 18 Gauge (.0478" Thick)
Hole Pattern 0.200" Square on 1/2" Straight Centers
Hole Size 0.200"
Hole Centers 1/2"
Bar Width 0.300"
Hole Arrangement Straight Centers
Holes per Square Inch (HPSI) 4.0
Straight Rows Parallel to Width and Length of Sheet
Margins Parallel to Width Sheared Through
Margins Parallel to Length Minimum Safe Both Sides
End Pattern Sheared Through
Percent Open Area 16%
Weight 1.68 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
Sizes (Width x Length) 48" x 24"; 48" x 120"
