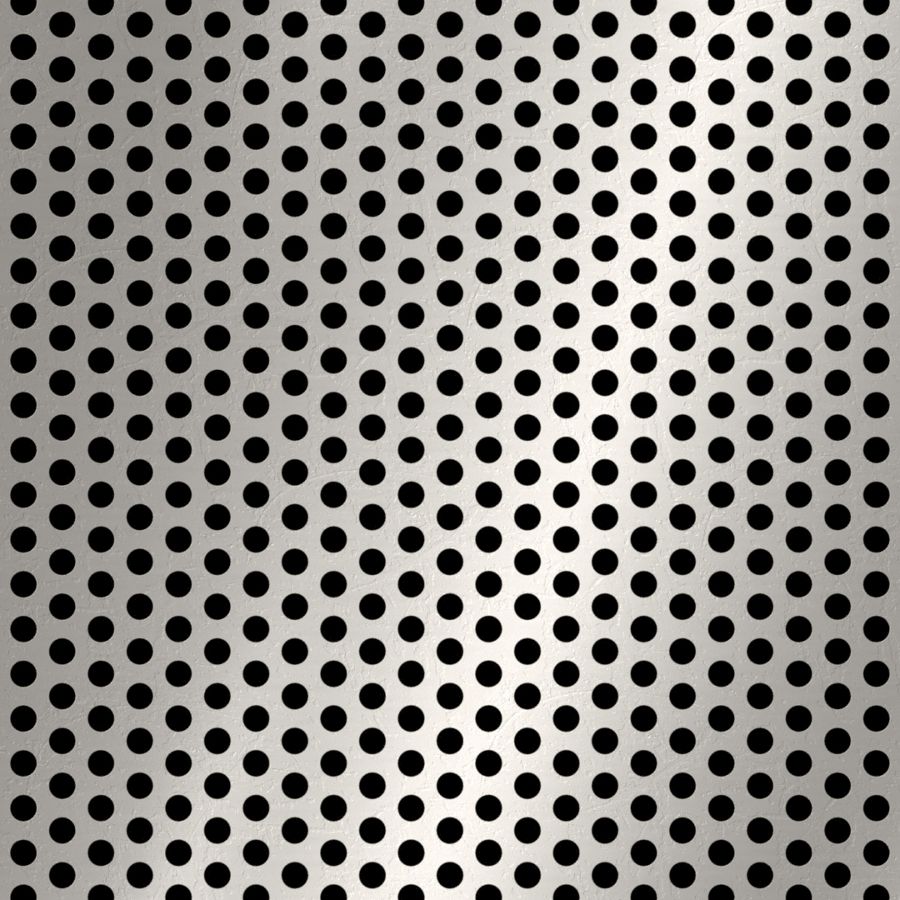

McNICHOLS® Perforated Metal

Round, Stainless Steel, Type 304, 16 Gauge (.0595" Thick), 3/16" Round on 5/16" Staggered Centers, 33% Open Area
McNICHOLS® Perforated Metal, Round, Stainless Steel, Type 304, Mill Finish, 16 Gauge (.0595" Thick), 3/16" Round on 5/16" Staggered Centers, 1/8" Bar Width, 12.0 Holes per Square Inch, Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 32% Open Area

ITEM 1831511641 - 48" x 120"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 1831511641
Product Line Perforated Metal
Hole Type Round
Primary Material Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)
Material Finish Mill Finish
Gauge/Thickness 16 Gauge (.0595" Thick)
Hole Pattern 3/16" Round on 5/16" Staggered Centers
Hole Size (Diameter) 3/16"
Hole Centers 5/16"
Bar Width 1/8"
Hole Arrangement 60 Degree Staggered Centers
Holes per Square Inch (HPSI) 12.0
Straight Rows Parallel to Length of Sheet
Margins Parallel to Width Sheared Through
Margins Parallel to Length Minimum Safe Both Sides
End Pattern Sheared Through
Percent Open Area 33%
Weight 1.77 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
Sizes (Width x Length) 48" x 120"
