McNICHOLS® Perforated Metal

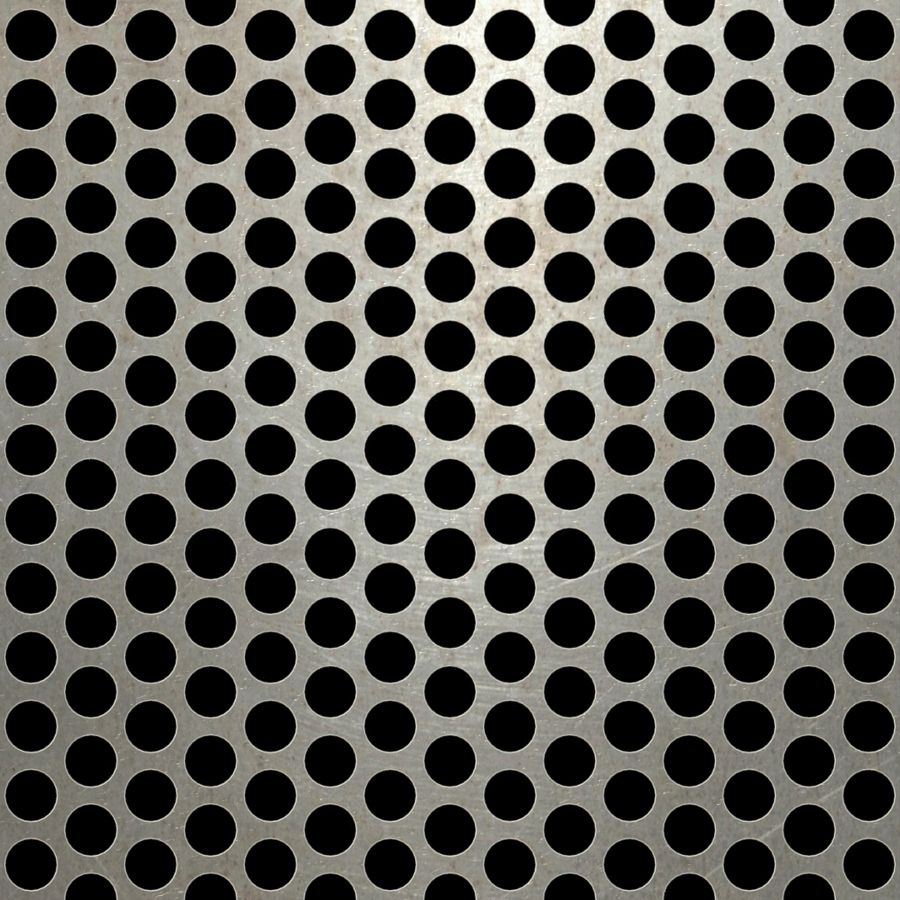

Round, Carbon Steel, Cold Rolled, 16 Gauge (.0598" Thick), 3/8" Round on 1/2" Staggered Centers, 51% Open Area
McNICHOLS® Perforated Metal, Round, Carbon Steel, Cold Rolled, Mill Finish, 16 Gauge (.0598" Thick), 3/8" Round on 1/2" Staggered Centers, 1/8" Bar Width, 4.62 Holes per Square Inch, Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 51% Open Area

ITEM 1638121648 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 1638121648
Product Line Perforated Metal
Hole Type Round
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Gauge/Thickness 16 Gauge (.0598" Thick)
Hole Pattern 3/8" Round on 1/2" Staggered Centers
Hole Size (Diameter) 3/8"
Hole Centers 1/2"
Bar Width 1/8"
Hole Arrangement 60° Staggered Centers
Holes per Square Inch (HPSI) 4.62
Straight Rows Parallel to Length of Sheet
Margins Parallel to Width Sheared Through
Margins Parallel to Length Minimum Safe Both Sides
End Pattern Sheared Through
Percent Open Area 51%
Weight 1.22 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
Sizes (Width x Length) 48" x 96"

Overview

At McNICHOLS, you can choose from the largest inventory of Perforated products in North America. Available in a variety of hole sizes and percentages of open area, with aesthetic appeal plus a high strength-to-weight ratio, Perforated Metal is used for sound enclosures, partitions, sign panels, machine guards, screening, filters, and more. Perforated hole types include Round, Square, Slotted, Hexagonal, and Designer. Materials include Aluminum, Carbon Steel (Plain Steel), Galvanized Steel, Stainless Steel, and Plastic.

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Perforated Metal product for your project or application. Please specify:

1

Application

Product applications/uses include displays, exhibits, fixtures, partitions, cabinet inserts, guards, furniture, building facades, infill panels, screening, sign panels, filters, baskets, ventilation, security enclosures, and more. We invite you to browse Perforated Metal applications in our Product Gallery.

2

Hole Type

Choose from a wide variety of Round, Square, Slotted, Hexagonal, or Designer Perforated hole types.

3

Primary Material / Product Finish

Select primary material type including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel, or Plastic, taking into consideration climate or environmental realities. Inventory is typically “mill finish” unless otherwise specified. We provide our full selection of materials in the Materials, Finishes, Gauges/Thicknesses section.

4

Material Guage / Thickness

Decide on material gauge number or thickness in inches. The Gauges and Weights Chart offers additional information.

5

Hole Pattern

Identify hole size (diameter), hole type (shape), hole center (spacing) and hole arrangement (staggered, straight row, etc.), or Designer Perforated name/pattern.

6

Percent Open Area

Choose the percentage of open area desired in the Perforated Metal sheet or coil.

7

Margin / End Pattern

Specify solid margin preferences on width and/or length of sheet if required for your application. Most inventory 11 Gauge and lighter has minimum solid side margins running the length of the sheet and no end margins running the width of the sheet (material ends are sheared through). Sheets heavier than 11 Gauge typically have either a finished or unfinished pattern with corresponding end margins.

8

Product Size, Form & Quantity

Identify product size(s), form (typically supplied in sheets), and quantity desired, including cut-to-size pieces.

9

Special Requirements

Specify any requirements for special cut-to-size pieces, margin or edge treatments, finishing, leveling, fabrication, non-standard tolerances, etc.

10

Accessories

Determine if Perforated Metal Accessories such as Angle, Flat Bar or U-Edging framing solutions are required for your application.
