McNICHOLS® Perforated Metal Round, Carbon Steel, HRPO, 11 Gauge (.1196" Thick), 3/4" Round on 1" Staggered Centers, 51% Open Area, 16340111M1

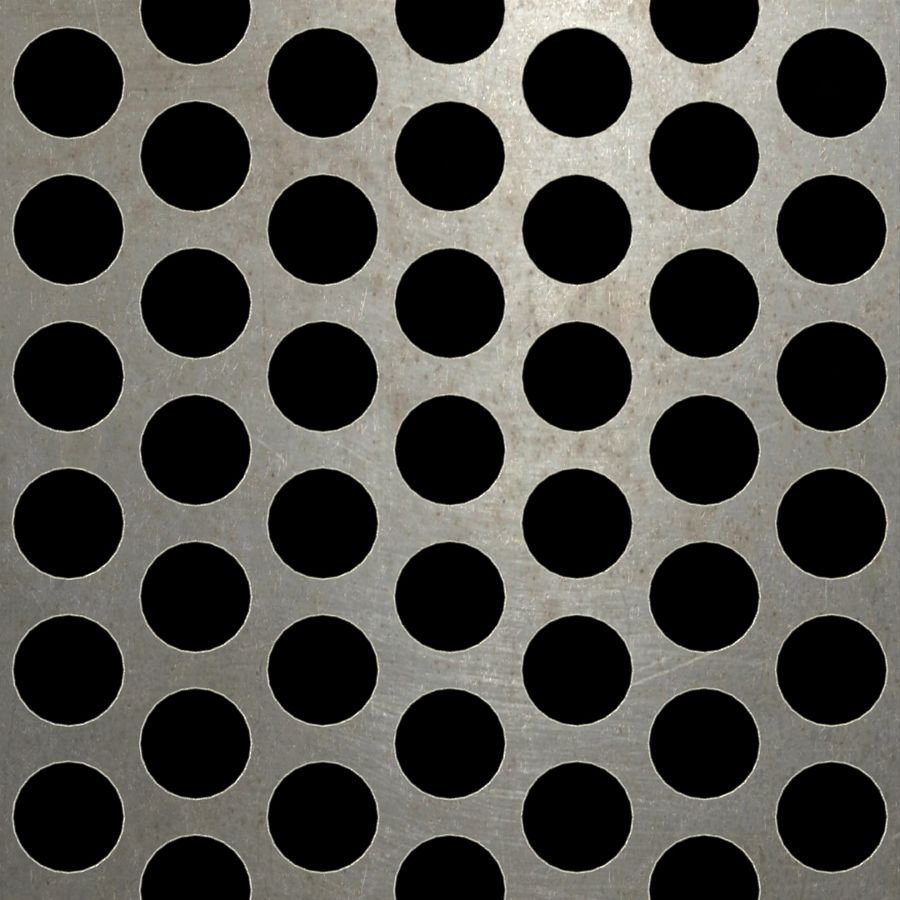

Due to limitations and inconsistencies of digital displays, the rendering above is a representation of the raw materials. Actual products may differ slightly in appearance.
BUY THIS SIZE ONLINE
Please Request Quote
Request a Sample

McNICHOLS® Perforated Metal

Round, Carbon Steel, HRPO, 11 Gauge (.1196" Thick), 3/4" Round on 1" Staggered Centers, 51% Open Area

McNICHOLS® Perforated Metal, Round, Carbon Steel, Hot Rolled Pickled and Oiled (HRPO), Mill Finish, 11 Gauge (.1196" Thick), 3/4" Round on 1" Staggered Centers, 1/4" Bar Width, 1.15 Holes Per Square Inch (HPSI), Minimum Solid Margin One Side of Sheet Parallel to Length of Sheet, Holes Sheared Through One Side of Sheet Parallel to Length and Both Ends of Sheet Parallel to Width of Sheet, 51% Open Area

ITEM 16340111M1 - 24" x 24" - In-Stock! print icon

BUY THIS SIZE ONLINE print icon
Request a Sample
BUY THIS SIZE ONLINE Request a Sample
print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon Request a Sample




BUY THIS SIZE ONLINE
Please Request Quote

print icon Request a Sample

SPECIFICATIONS

Overview

Ordering

Charts

Tables
SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 16340111M1
Product Line Perforated Metal
Hole Type Round
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 11 Gauge (.1196" Thick)
Hole Pattern 3/4" Round on 1" Staggered Centers
Hole Size (Diameter) 3/4"
Hole Centers 1"
Bar Width 1/4"
Hole Arrangement 60° Staggered Centers
Holes Per Square Inch (HPSI) 1.15
Straight Rows Parallel to Length of Sheet
Margins Parallel to Width Minimum Solid One Side, Sheared Through Other Side
Margins Parallel to Length Sheared Through Both Sides
End Pattern Sheared Through Both Ends
Percent Open Area 51%
Weight 2.50 Lbs./Square Foot
Product Form Sheet
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Width x Length)
24" x 24" ;
48" x 30" ;
48" x 120" (Cut Sizes Available)

Overview

McNICHOLS carries the largest inventory of Perforated Metal products in North America with a vast selection of sizes, gauges and hole types available. In both high-end and industrial settings, Perforated Metal brings strength and style to enclosures, partitions, sign panels, guards, screens, and other structures. This dynamic product line offers ventilation, versatility, and a high strength-to-weight ratio. Perforated Metal is also an excellent product for filtration (sound, liquid, light, etc.) applications. McNICHOLS stocks Perforated Metal in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel, and even Plastic!

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Perforated Metal product for your project or application. Please specify:

1

Application

Product applications/uses include displays, exhibits, fixtures, partitions, cabinet inserts, guards, furniture, building facades, infill panels, screening, sign panels, filters, baskets, ventilation, security enclosures, and more. We invite you to browse Perforated Metal applications in our Product and Application Gallery.

2

Hole Type

Choose from a wide variety of Round, Square, Slotted, Hexagonal, or Designer Perforated hole types.

3

Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel, or Plastic, taking into consideration climate or environmental realities. Inventory is typically “mill finish” unless otherwise specified. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Perforated Metal Resources landing page.

4

Gauge / Thickness

Decide the material gauge number or thickness in inches. The Gauges, Thicknesses, & Weights by Primary Material table on the Perforated Metal Resources landing page has additional information.

5

Hole Pattern

Identify hole size (diameter), hole type (shape), hole center (spacing), and hole arrangement (staggered centers, straight centers, reverse staggered centers) or Designer Perforated series name and number.

6

Percent Open Area

Choose the percentage of open area desired in the Perforated Metal sheet or plate.

7

Margin / End Pattern

Specify solid margin preferences on width and/or length of sheet if required for your application. Most inventory 11 Gauge and lighter has minimum solid side margins running the length of the sheet and no end margins running the width of the sheet (material ends have holes that are sheared through). Sheets heavier than 11 Gauge typically have either a finished or unfinished pattern with corresponding end margins.

8

Product Size, Form, & Quantity

Identify product size(s), form (typically supplied in sheets), and quantity desired, including cut-to-size pieces. Items that are 3/16" or thicker are identified as plate.

9

Special Requirements

Specify any requirements for special cut-to-size pieces, margin or edge treatments, finishing, leveling, fabrication, non-standard tolerances, etc. If your project calls for Infill Panels, an Infill Panel Worksheet is available in the Overview section on the Perforated Metal Resources landing page.

10

Accessories

Determine if Perforated Metal Accessories such as Angle, Flat Bar, or U-Edging framing solutions are required for your application.
