  4. McNICHOLS® Expanded Metal Standard, Stainless Steel, Type 304, 3/4" No. 16 Standard (Raised), 80% Open Area
McNICHOLS® Expanded Metal Standard, Stainless Steel, Type 304, 3/4" No. 16 Standard (Raised), 80% Open Area, 4800341648
McNICHOLS® Expanded Metal Standard, Stainless Steel, Type 304, 3/4" No. 16 Standard (Raised), 80% Open Area, 4800341648

McNICHOLS® Expanded Metal

Standard, Stainless Steel, Type 304, 3/4" No. 16 Standard (Raised), 80% Open Area

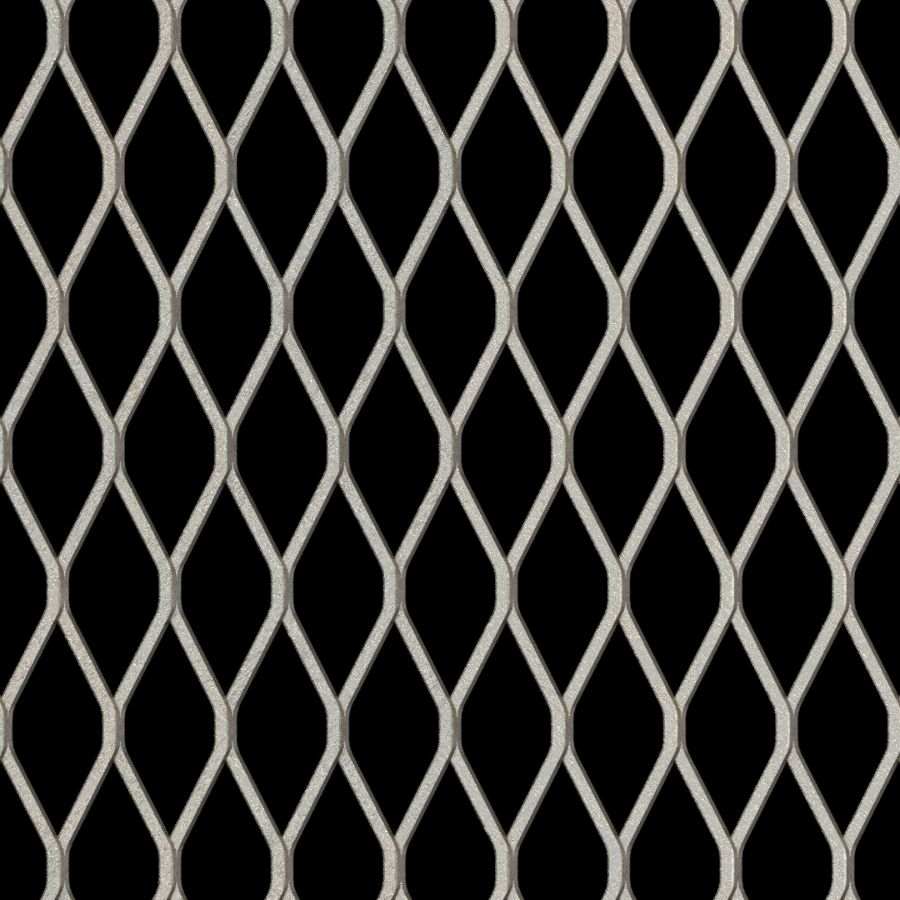

McNICHOLS® Expanded Metal, Standard, Stainless Steel, Type 304, Mill Finish, 3/4" No. 16 Standard (Raised), 0.923" Short Way of Design (SWD), 2.000" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 80% Open Area

ITEM 4800341648 - 48" x 96"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 4800341648
Product Line Expanded Metal
Expanded Type Standard
Primary Material Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)
Material Finish Mill Finish
Style & Type 3/4" No. 16 Standard (Raised)
Design Size - Short Way of Diamond (SWD) 0.923"
Design Size - Long Way of Diamond (LWD) 2.000"
Opening Size - Short Way of Opening (SWO) 0.816"
Opening Size - Long Way of Opening (LWO) 1.632"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 13.0
Diamonds per Foot - Long Way of Diamond (LWD) 6.0
Strand Thickness 0.060"
Strand Width 0.105"
Overall Thickness 0.200"
Percent Open Area 80%
Weight 0.52 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
48" x 96" (Cut Sizes Available)
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
