McNICHOLS® Expanded Metal Standard, Carbon Steel, Cold Rolled, 1/2" No. 18 Standard (Raised), 65% Open Area, 460N121848
McNICHOLS® Expanded Metal Standard, Carbon Steel, Cold Rolled, 1/2" No. 18 Standard (Raised), 65% Open Area, 460N121848

McNICHOLS® Expanded Metal

Standard, Carbon Steel, Cold Rolled, 1/2" No. 18 Standard (Raised), 65% Open Area

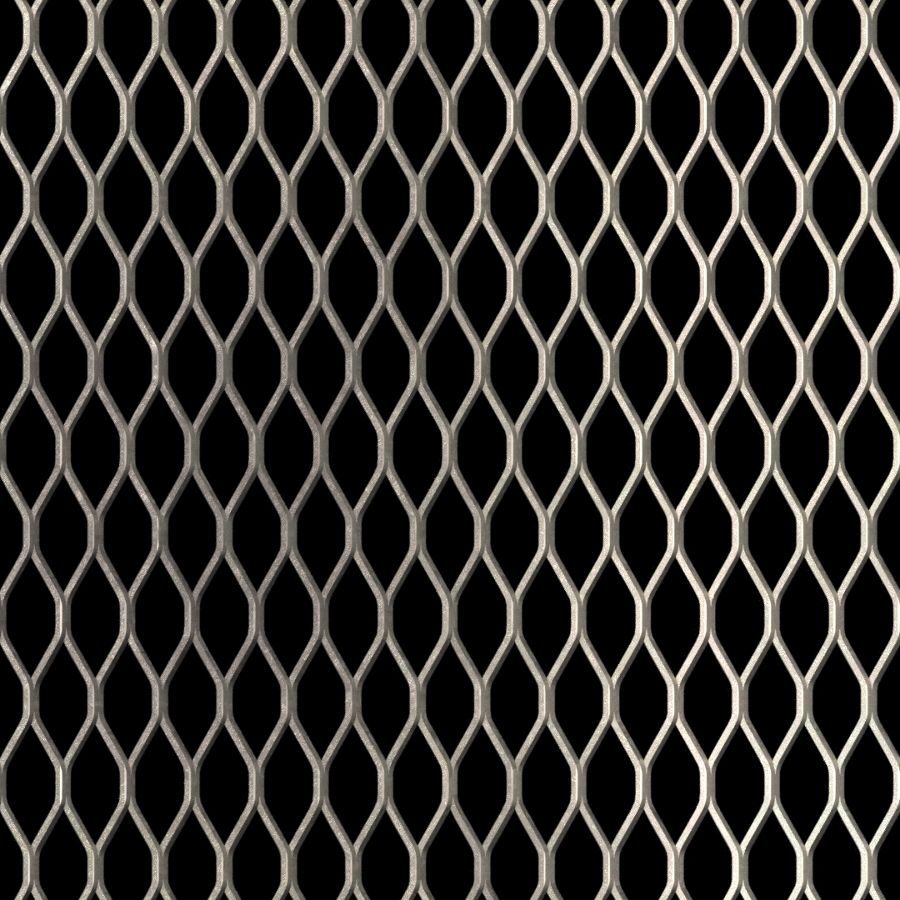

McNICHOLS® Expanded Metal, Standard, Carbon Steel, Cold Rolled, Mill Finish, 1/2" No. 18 Standard (Raised), 0.500" Short Way of Design (SWD), 1.200" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 65% Open Area

ITEM 460N121848 - 48" x 96"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 460N121848
Product Line Expanded Metal
Expanded Type Standard
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Cold Rolled (CR)
Material Finish Mill Finish
Style & Type 1/2" No. 18 Standard (Raised)
Design Size - Short Way of Diamond (SWD) 0.500"
Design Size - Long Way of Diamond (LWD) 1.200"
Opening Size - Short Way of Opening (SWO) 0.382"
Opening Size - Long Way of Opening (LWO) 0.938"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 24.0
Diamonds per Foot - Long Way of Diamond (LWD) 10.0
Strand Thickness 0.048"
Strand Width 0.088"
Overall Thickness 0.180"
Percent Open Area 65%
Weight 0.69 Lbs./Square Foot
Product Form Sheet
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
48" x 96"
Specifications Note Specifications May Vary Slightly Within Mill Tolerances
