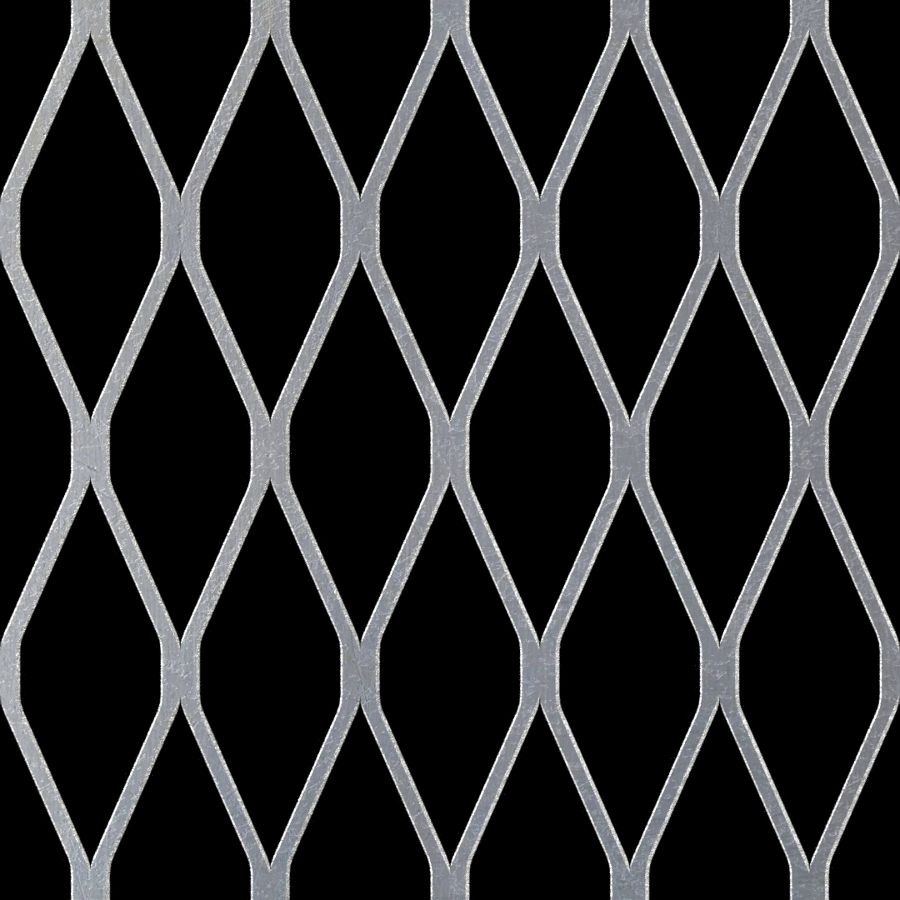

McNICHOLS® Expanded Metal Flattened, Aluminum, Alloy 3003-H14, 1-1/2" No. .081 Flattened, 79% Open Area, 5700158148
BUY THIS SIZE ONLINE
Please Request Quote
Request a Sample

McNICHOLS® Expanded Metal

Flattened, Aluminum, Alloy 3003-H14, 1-1/2" No. .081 Flattened, 79% Open Area

McNICHOLS® Expanded Metal, Flattened, Aluminum, Alloy 3003-H14, Mill Finish, 1-1/2" No. .081 Flattened, 1.330" Short Way of Design (SWD), 3.150" Long Way of Design (LWD), Long Way of Opening (LWO) Parallel to Length of Sheet, 79% Open Area

ITEM 5700158148 - 48" x 96" - In-Stock! print icon

print icon
Request a Sample
Please Request Quote Request a Sample
print icon




BUY THIS SIZE ONLINE
Please Request Quote

print icon Request a Sample




BUY THIS SIZE ONLINE
Please Request Quote

print icon Request a Sample

SPECIFICATIONS

Overview

Ordering

Charts

Tables
SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 5700158148
Product Line Expanded Metal
Expanded Type Flattened
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 3003-H14 (3003H14)
Material Finish Mill Finish
Style & Type 1-1/2" No. .081 Flattened
Design Size - Short Way of Diamond (SWD) 1.330"
Design Size - Long Way of Diamond (LWD) 3.150"
Opening Size - Short Way of Opening (SWO) 1.044"
Opening Size - Long Way of Opening (LWO) 2.750"
Long Way of Opening (LWO) Parallel to Length of Sheet
Diamonds per Foot - Short Way of Diamond (SWD) 9.0
Diamonds per Foot - Long Way of Diamond (LWD) 3.8
Strand Thickness 0.060"
Strand Width 0.136"
Overall Thickness 0.060"
Percent Open Area 79%
Weight 0.18 Lbs./Square Foot
Product Form Sheet
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Width x Length)
48" x 96" (Cut Sizes Available)
Specifications Note Specifications May Vary Slightly Within Mill Tolerances

Overview

McNICHOLS® Expanded Metal is made by slitting and stretching metal sheets to create diamond-shaped openings. This practical and versatile product line forms screens, window security panels, machine guards, and more. Decorative Expanded items are popular in shelving, signage, and ceiling tile applications. Expanded Metal is supplied in a Standard (Raised) diamond pattern or a Flattened variety, and materials include Aluminum, Carbon Steel, Galvanized Steel, and Stainless Steel. Expanded Metal Grating and Catwalk Grating are also part of our vast in-stock selection. Numerous gauges, opening sizes, and sheet sizes provide endless options that will surely fit your project requirements!

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Expanded Metal product for your project or application. Please specify:

1

Application

Product applications/uses include screening, ventilation, security enclosures, machine guards, ramps, catwalks, walkways, platforms, cabinet inserts, and more. We invite you to browse Expanded Metal applications in our Product and Application Gallery.

2

Design Direction

Determine the design direction (pattern direction). The Long Way of Design (LWD) runs parallel to the length of the sheet for the majority of inventory items.

3

Expanded Type

Choose from a wide variety of Flattened, Standard (Raised), Grating, Catwalk Grating, or Designer Expanded types.

4

Percent Open Area

Choose the percentage of open area desired in the Expanded Metal sheet.

5

Primary Material

Select the primary material type including Aluminum, Carbon Steel, Galvanized Steel, or Stainless Steel, taking into consideration climate or environmental realities. We provide more information on Primary Material Types in the links provided in the Overview section on the Expanded Metal Resources landing page.

6

Product Size, Form, & Quantity

Determine the number of sheets and/or sizes including cut-to-size pieces and shearing preference (e.g. Bond Shear or Random Shear).

7

Product Finish

Inventory is typically “mill finish” unless otherwise specified. We provide more information on Product Finishes in the links provided in the Overview section on the Expanded Metal Resources landing page.

8

Special Requirements

Specify any requirements such as fabrication, edge treatments, finishing, non-standard tolerances, etc. If your project calls for Infill Panels, an Infill Panel Worksheet is available in the Overview section on the Expanded Metal Resources landing page.

9

Style & Type

Choose the Short Way of Design (SWD) measurement in inches, material gauge number, or thickness in inches and expanded type (i.e. 3/4" No. #9 Flattened). For Grating and Catwalk Grating items, select the pounds per square foot desired (e.g. 3.14 # Grating (Standard), etc.).

10

Accessories

Determine if Expanded Metal Accessories such as Angle, Flat Bar, and U-Edging framing solutions or Fasteners are required for your application.

Tables

This McNICHOLS® Expanded Metal load table can be saved, printed, or shared!

Grating & Catwalk Grating - Metals (Aluminum, Carbon Steel, & Stainless Steel)
