  4. McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area

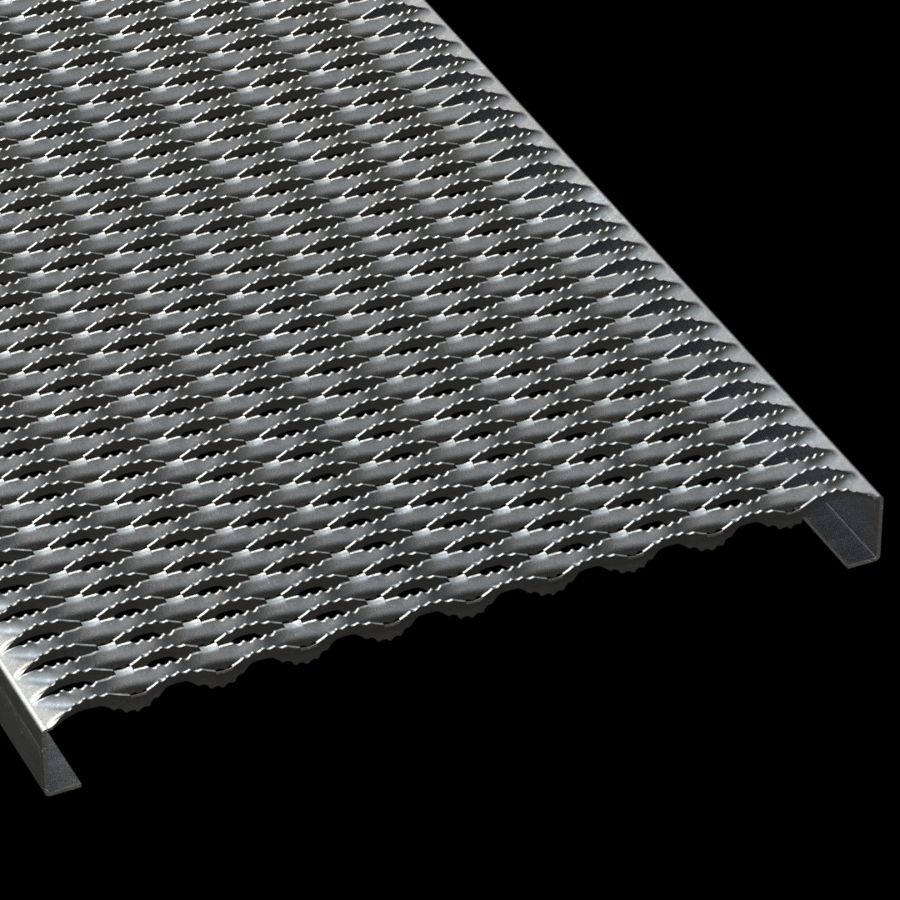

McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area, 2410201210
McNICHOLS® Plank Grating Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area, 2410201210

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, 12 Gauge (.1084" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Galvanized Steel, ASTM A-653 G90, Mill Finish, 12 Gauge (.1084" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 47% Open Area

ITEM 2410201210 - 24" x 120"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 2410201210
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type ASTM A-653 G90 (A653G90)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Surface Profile 10-Diamond (24" Width) GRIP STRUT® Plank
Surface Width 24"
Long Way of Opening (LWO) Parallel to Width of Plank
Channel Depth 2"
Product Surface Serrated
Percent Open Area 47%
Weight 10.40 Lbs./Linear Foot
Product Form Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
24" x 120";
24" x 144" (Cut Lengths Available)
Load Table View

Overview

Plank Grating facilitates secure footing on rooftop walkways, catwalks, stairs and other surface applications when safety is critical. This Safety Grating product line is lightweight and easy to cut and fabricate. Made by punching and forming metal, McNICHOLS® Plank Grating comes in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel and Stainless Steel and we carry the nation’s largest inventory of Plank brand names including GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK® and DIAMONDBACK®. Different construction types consist of Plank, Walkway (both with Heavy-Duty options), Interlocking, Extruded Interlocking and Heavy-Duty Plank. Additional construction types consist of several Ladder Rung Plank styles, as well as Stair Tread Plank Grating options. An array of heights, widths, surface profiles, thicknesses and more are all part of our complete line of Plank Grating Hole Products!
