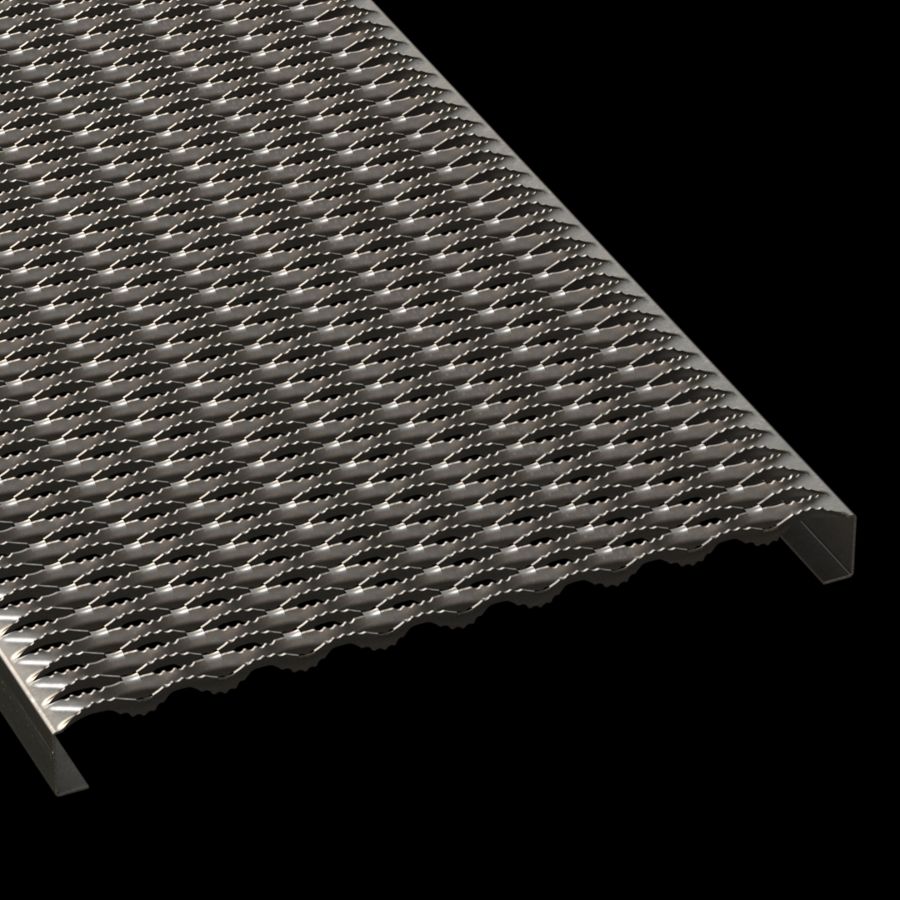

  4. McNICHOLS® Plank Grating Plank, GRIP STRUT®, Carbon Steel, HRPO, 14 Gauge (.0747" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area
McNICHOLS® Plank Grating Plank, GRIP STRUT®, Carbon Steel, HRPO, 14 Gauge (.0747" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area, 2610201412
McNICHOLS® Plank Grating Plank, GRIP STRUT®, Carbon Steel, HRPO, 14 Gauge (.0747" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area, 2610201412

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Carbon Steel, HRPO, 14 Gauge (.0747" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, 47% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Carbon Steel, Hot Rolled Pickled and Oiled (HRPO), Mill Finish, 14 Gauge (.0747" Thick), 10-Diamond (24" Width), 2" Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 47% Open Area

ITEM 2610201412 - 24" x 144"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 2610201412
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 14 Gauge (.0747" Thick)
Surface Profile 10-Diamond (24" Width) GRIP STRUT® Plank
Surface Width 24"
Long Way of Opening (LWO) Parallel to Width of Plank
Channel Depth 2"
Product Surface Serrated
Percent Open Area 47%
Weight 7.40 Lbs./Linear Foot
Product Form Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
24" x 144" (Cut Lengths Available)
Load Table View
