McNICHOLS® Plank Grating

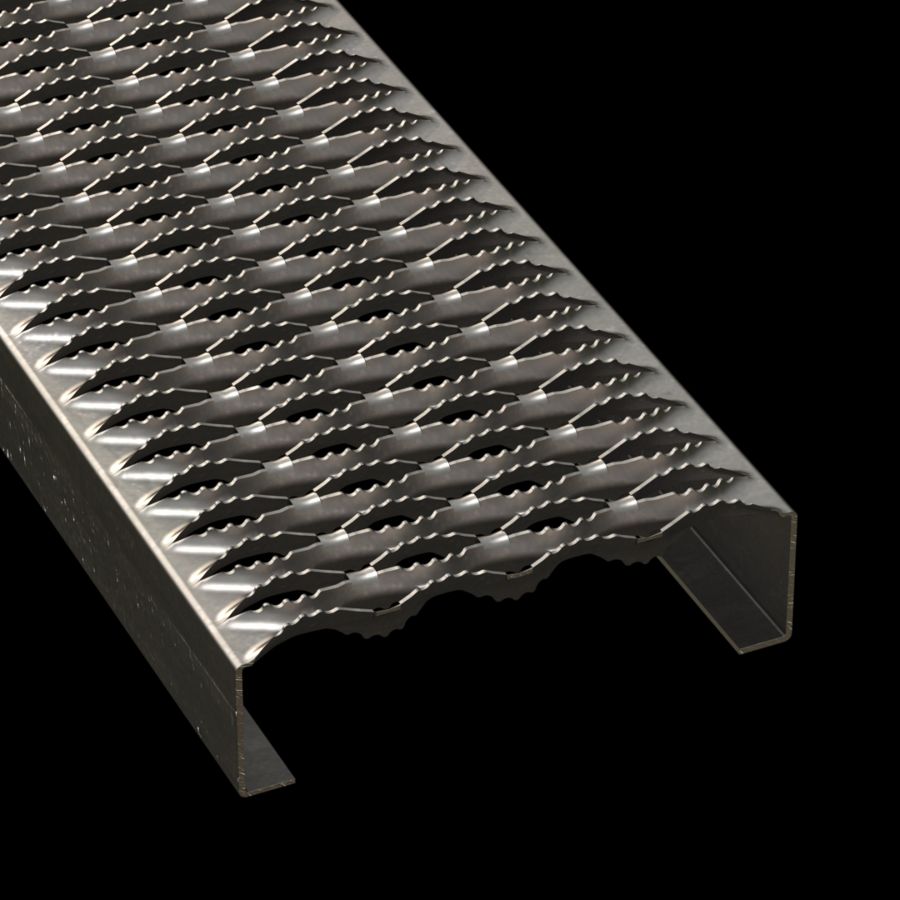

Plank, GRIP STRUT®, Carbon Steel, HRPO, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 2-1/2" Channel Depth, Serrated Surface, 45% Open Area

McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Carbon Steel, Hot Rolled Pickled and Oiled (HRPO), Mill Finish, 12 Gauge (.1046" Thick), 4-Diamond (9-1/2" Width), 2-1/2" Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 45% Open Area

ITEM 2604251212 - 9-1/2" x 144" In-Stock! print icon

print icon
Please Request Quote

Please Request Quote

Please Request Quote

Item Number 2604251212
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1046" Thick)
Surface Profile 4-Diamond (9-1/2" Width) GRIP STRUT® Plank
Surface Width 9-1/2"
Long Way of Opening (LWO) Parallel to Width of Plank
Channel Depth 2-1/2"
Product Surface Serrated
Percent Open Area 45%
Weight 5.70 Lbs./Linear Foot
Product Form Plank
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Width x Length)
9-1/2" x 144" (Cut Lengths Available)
Load Table View


Plank Grating facilitates secure footing on rooftop walkways, catwalks, stairs, and other surface applications when safety is critical. This Safety Grating product line is lightweight and easy to cut and fabricate. Made by punching and forming metal, McNICHOLS® Plank Grating comes in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel, and Stainless Steel and we carry the nation's largest inventory of Plank brand names including GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK®, and DIAMONDBACK®. Different construction types consist of Plank, Walkway (both with Heavy-Duty options), Interlocking, Extruded Interlocking, and Heavy-Duty Plank. Additional construction types consist of several Ladder Rung Plank styles, as well as Stair Tread Plank Grating options. An array of heights, widths, surface profiles, thicknesses, and more are all part of our complete line of Plank Grating Hole Products!


The information provided below is your guide for choosing the right McNICHOLS® Plank Grating product for your project. Ordering information for McNICHOLS® Plank Grating Stair Treads is available by selecting the following link: Specifying & Ordering Plank Grating Stair Treads



Consider Plank Grating uses and physical requirements for your interior or exterior application. Loading, span, and support needs as well as traffic requirements such as pedestrian or hand cart are important considerations. Several Plank Grating products comply with the Americans with Disabilities Act (ADA) when installed to written standards. We invite you to browse Plank Grating applications in our Product and Application Gallery.


Construction Type

Choose from a wide variety of Plank constructions types including Plank, Walkway, Heavy-Duty Plank, Heavy-Duty Walkway, Interlocking Plank, Extruded Interlocking Plank, and Heavy-Duty Extruded Plank.


Series Type & Name

Determine the series type and name (GRIP STRUT® Walkway, PERF-O GRIP® Plank, etc.) of the Plank Grating product for your project. If applicable, items that comply with the Americans with Disabilities Act (ADA) standard will have this language indicated in the product's description and item specifications.


Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Galvanized Steel, or Stainless Steel. Inventory is typically "mill finish". We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Plank Grating Resources landing page.


Material Gauge / Thickness

Decide the material gauge number or thickness in inches is right for your project. Extruded products do not have an actual gauge due to the manufacturing process. These items are specified as an Extrusion.


Surface Profile

Choose a surface profile for your application. A surface profile includes the number of openings to width, type of opening, and the width of the Plank or Walkway measured in inches (e.g. 5-Diamond (11-3/4" Width), 6-Hole (12" Width), etc.)


Channel Size

Select the channel depth or height for your surface profile selection. The channel size for Plank products is referred to as depth. For Walkway products, the channel size is referred to as height because of its upturned profile above the surface of the product. When specifying GRATE-LOCK® Interlocking Plank Grating, it is important to identify channel flange requirements (e.g. Male Channel Flanges, One Female and One Male Channel Flange, Female Channel Flanges).


Percent Open Area

Choose the percentage of open area desired in your Plank Grating construction type.



Choose the direction the openings need to run in your surface profile selection in order to support the application load. Surface profile direction is often referred to as span. Clear span refers to the distance between Plank Grating supports and is an important installation consideration.


Product Size, Form, & Quantity

Identify the number of Planks or other forms (width and length) needed as well as specific sizes (cut-to-size pieces, areas, Stair Treads, etc.). Areas exceeding standard Plank widths are provided in multiple pieces to width.


Special Requirements

Specify any requirements like Plank without formed side channels, fabrication, notching, cut-outs, Stair Treads, non-standard tolerances, etc.



Determine if Plank Grating Accessories like Clips or Fasteners/Hardware, Splice Plate Kits, etc. are needed for your project or application.


View McNICHOLS® Plank Grating Resources on tolerances, available sizes, and more!



Helpful McNICHOLS® Plank Grating load tables to save, print, or share!

Plank - Carbon Steel, Galvanized Steel, & Stainless Steel
