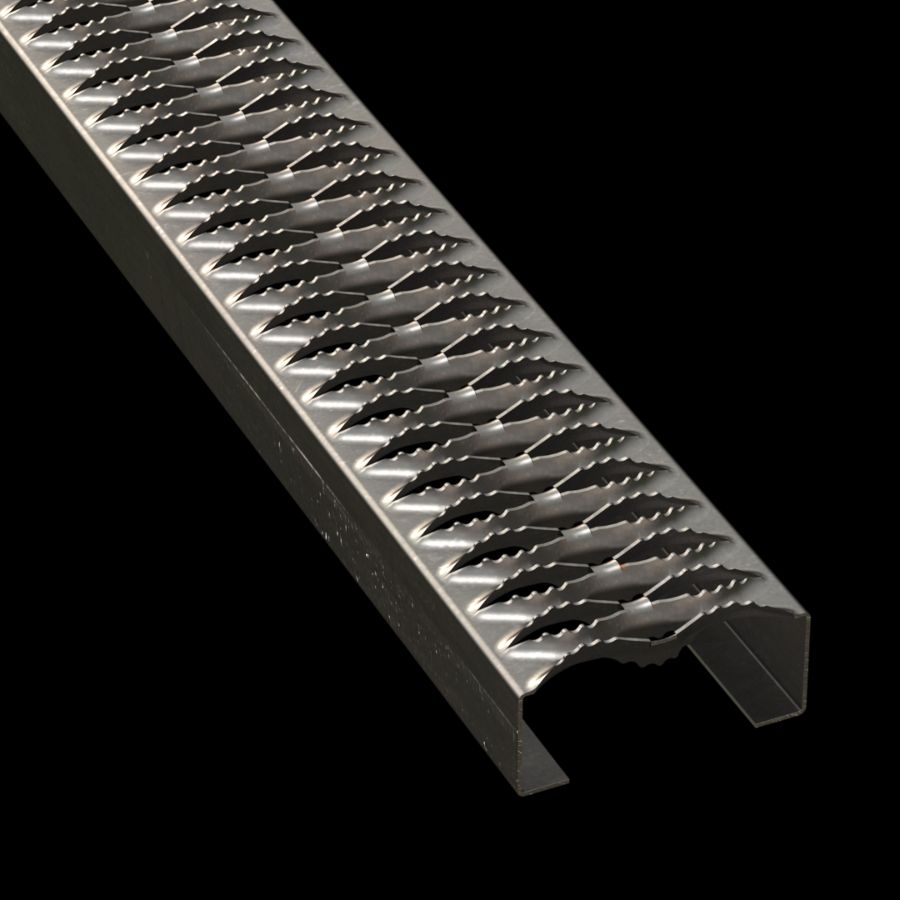

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Carbon Steel, 14 Gauge (.0747" Thick), 2-Diamond (4-3/4" Width), 2" Channel Depth, Serrated Surface, 34% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Carbon Steel, Hot Rolled Pickled and Oiled, Mill Finish, 14 Gauge (.0747" Thick), 2-Diamond (4-3/4" Width), 2'' Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 34% Open Area

ITEM 2602201412 - 4-3/4" x 144"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 2602201412
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled Pickled and Oiled (HRPO)
Material Finish Mill Finish
Gauge/Thickness 14 Gauge (.0747" Thick)
Surface Profile 2-Diamond (4-3/4" Width) GRIP STRUT® Plank
Surface Width 4-3/4"
Channel Depth 2"
Product Surface Serrated
Percent Open Area 34%
Weight 2.60 Lbs./Linear Foot
Product Form Plank
Sizes (Width x Length) 4-3/4" x 144"
Load Table View
