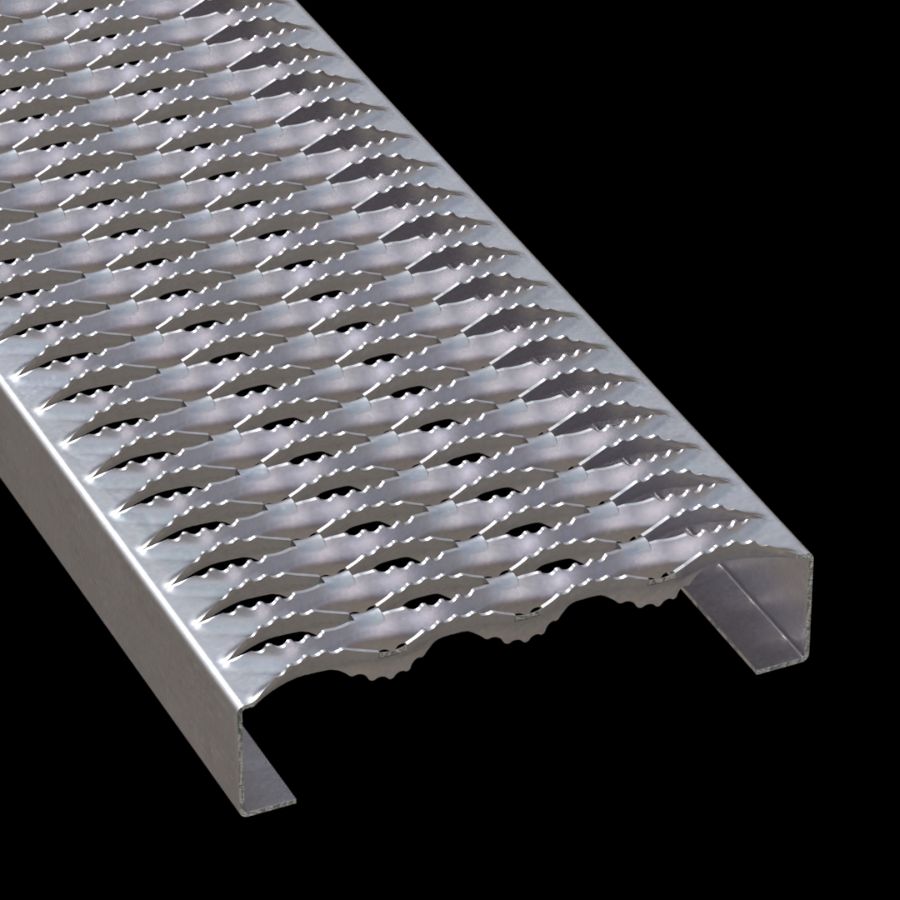

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Aluminum, .0800" Thick (12 Gauge), 4-Diamond (9-1/2" Width), 2" Channel Depth, Serrated Surface, 45% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Aluminum, Alloy Type 5052-H32, Mill Finish, .0800" Thick (12 Gauge), 4-Diamond (9-1/2" Width), 2'' Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 45% Open Area

ITEM 270420-A10 - 9-1/2" x 120"

Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 270420-A10
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Aluminum (AL)
Alloy, Grade or Type Type 5052-H32 (5052H32)
Material Finish Mill Finish
Gauge/Thickness .0800" Thick (12 Gauge)
Surface Profile 4-Diamond (9-1/2" Width) GRIP STRUT® Plank
Surface Width 9-1/2"
Channel Depth 2"
Product Surface Serrated
Percent Open Area 45%
Weight 1.40 Lbs./Linear Foot
Product Form Plank
Sizes (Width x Length) 9-1/2" x 120"; 9-1/2" x 144"
Load Table View
