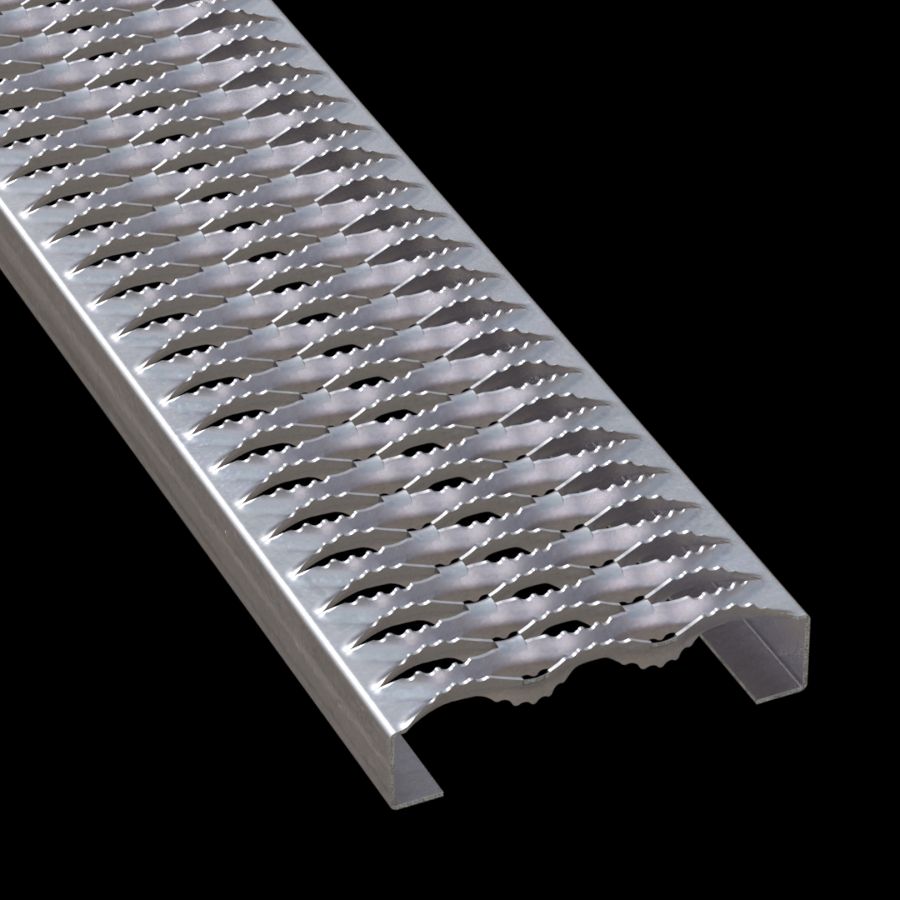

McNICHOLS® Plank Grating

Plank, GRIP STRUT®, Aluminum, .0800" Thick (12 Gauge), 3-Diamond (7" Width), 1-1/2" Channel Depth, Serrated Surface, 37% Open Area
McNICHOLS® Plank Grating, Plank, GRIP STRUT®, Aluminum, Alloy Type 5052-H32, Mill Finish, .0800" Thick (12 Gauge), 3-Diamond (7" Width), 1-1/2'' Channel Depth, Serrated Surface, Long Way of Opening (LWO) Parallel to Width of Plank, 37% Open Area

ITEM 270315-A12 - 7" x 144"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 270315-A12
Product Line Plank Grating
Construction Type Plank
Series Type & Name Plank - GRIP STRUT®
Primary Material Aluminum (AL)
Alloy, Grade or Type Type 5052-H32 (5052H32)
Material Finish Mill Finish
Gauge/Thickness .0800" Thick (12 Gauge)
Surface Profile 3-Diamond (7" Width) GRIP STRUT® Plank
Surface Width 7"
Channel Depth 1-1/2"
Product Surface Serrated
Percent Open Area 37%
Weight 1.10 Lbs./Linear Foot
Product Form Plank
Sizes (Width x Length) 7" x 144"
Load Table View
