  4. McNICHOLS® Plank Grating Heavy-Duty Extruded Plank, HD-EXT, Aluminum, Alloy 6063-T6 Extrusion, Rectangular-Vented (6" Width), 1-1/2" Channel Depth, Grooved Surface, 37% Open Area
McNICHOLS® Plank Grating Heavy-Duty Extruded Plank, HD-EXT, Aluminum, Alloy 6063-T6 Extrusion, Rectangular-Vented (6" Width), 1-1/2" Channel Depth, Grooved Surface, 37% Open Area, 6783956020
McNICHOLS® Plank Grating Heavy-Duty Extruded Plank, HD-EXT, Aluminum, Alloy 6063-T6 Extrusion, Rectangular-Vented (6" Width), 1-1/2" Channel Depth, Grooved Surface, 37% Open Area, 6783956020

McNICHOLS® Plank Grating

Heavy-Duty Extruded Plank, HD-EXT, Aluminum, Alloy 6063-T6 Extrusion, Rectangular-Vented (6" Width), 1-1/2" Channel Depth, Grooved Surface, 37% Open Area

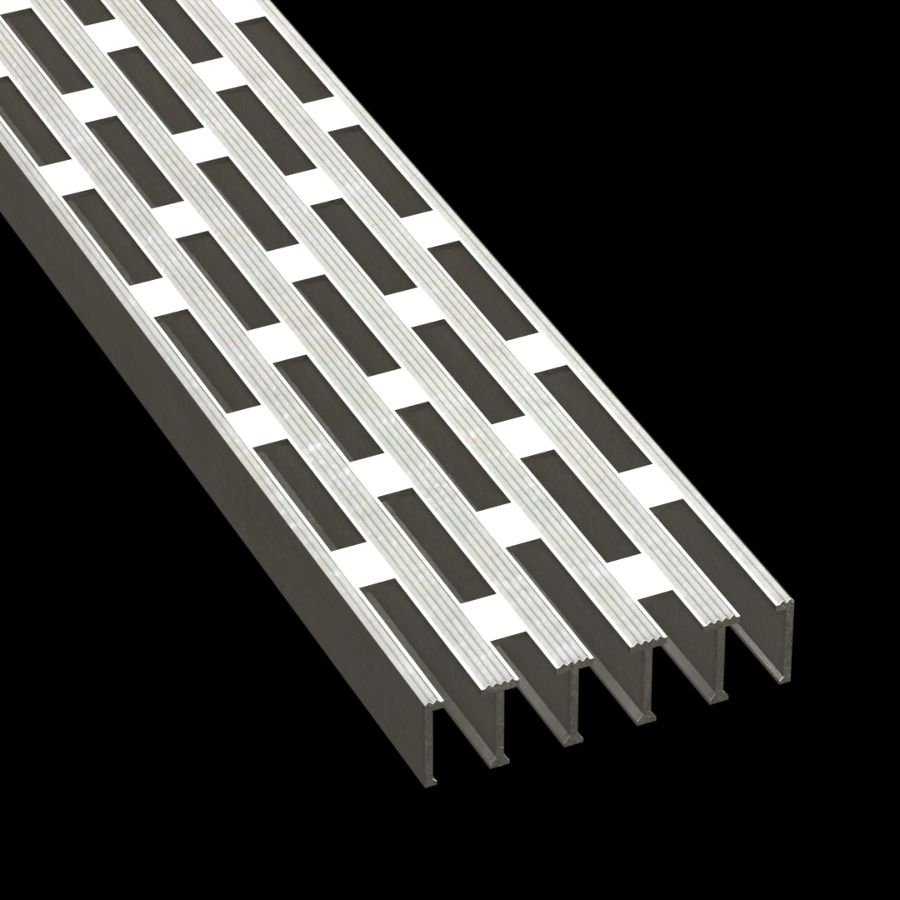

McNICHOLS® Plank Grating, Heavy-Duty Extruded Plank, HD-EXT, Aluminum, Alloy 6063-T6 Extrusion, Mill Finish, Rectangular-Vented (6" Width), 1-1/2" Channel Depth, Grooved Surface, Long Way of Opening (LWO) Parallel to Length of Heavy-Duty Extruded Plank, Holes Sheared Through Both Ends of Heavy-Duty Extruded Plank Parallel to Width of Heavy-Duty Extruded Plank, 37% Open Area

ITEM 6783956020 - 6" x 240"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 6783956020
Product Line Plank Grating
Construction Type HD Extruded Plank
Series Type & Name Heavy-Duty Extruded Plank - HD-EXT
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 6063-T6 (6063T6)
Material Finish Mill Finish
Gauge/Thickness Aluminum Extrusion
Surface Profile Rectangular-Vented (6" Width) HD-EXT - Heavy-Duty Extruded Plank
Vent Size 9/16" x 3"
Vent Shape Rectangular Slot with Upset Pattern
Surface Width 6"
Long Way of Opening (LWO) Parallel to Length of Heavy-Duty Extruded Plank
Channel Depth 1-1/2"
Product Surface Grooved
End Pattern Sheared Through Both Ends
Percent Open Area 37%
Weight 3.40 Lbs./Square Foot
Product Form Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
6" x 240" (Cut Lengths Available)
Load Table View

Overview

Plank Grating facilitates secure footing on rooftop walkways, catwalks, stairs and other surface applications when safety is critical. This Safety Grating product line is lightweight and easy to cut and fabricate. Made by punching and forming metal, McNICHOLS® Plank Grating comes in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel and Stainless Steel and we carry the nation’s largest inventory of Plank brand names including GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD™, GRATE-LOCK® and DIAMONDBACK®. Different construction types consist of Plank, Walkway (both with Heavy-Duty options), Interlocking, Extruded Interlocking and Heavy-Duty Plank. Additional construction types consist of several Ladder Rung Plank styles, as well as Stair Tread Plank Grating options. An array of heights, widths, surface profiles, thicknesses and more are all part of our complete line of Plank Grating Hole Products!
