  4. McNICHOLS® Stair Treads Plank Grating, Extruded Stair Tread Plank, DIAMONDBACK®, Aluminum, Alloy 6061-T6 Extrusion, Diamond-Vented (9" Width), 1-1/2" Channel Depth, Diamond-Serrated Surface, 1" Wide Integral Nosing on One Side of Tread Plank Length, CP-PG-930 Plank Grating Stair Tread Carrier Plates Available Separately, 12% Open Area

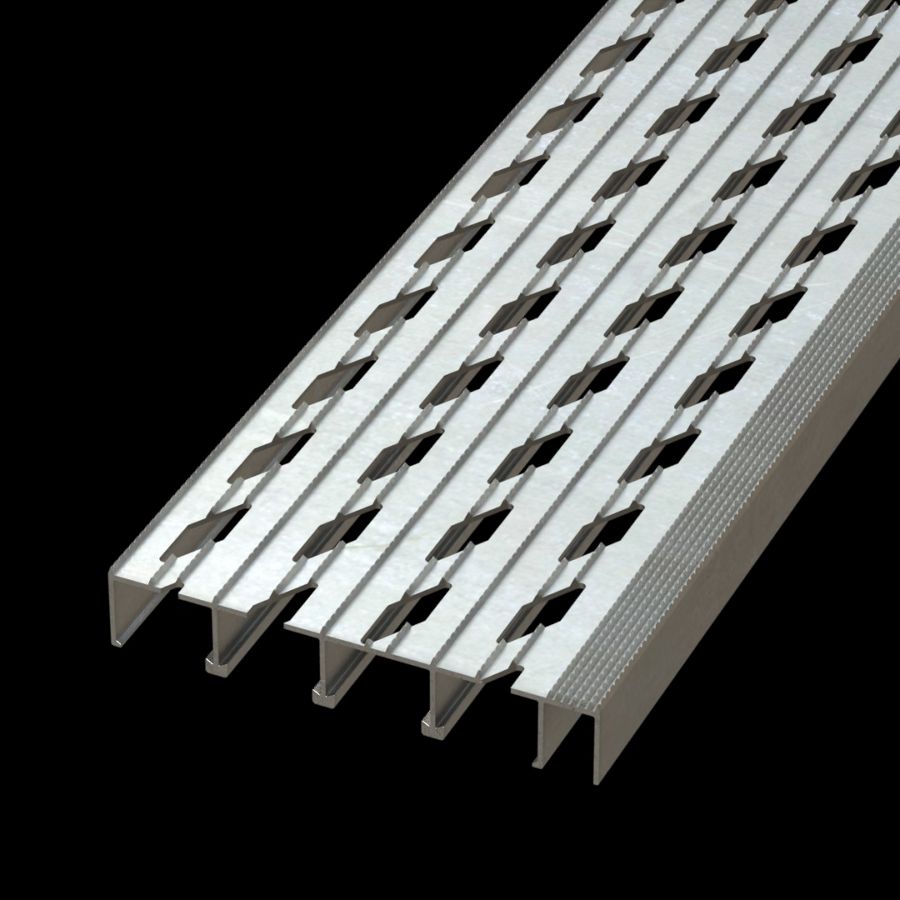

McNICHOLS® Stair Treads Plank Grating, Extruded Stair Tread Plank, DIAMONDBACK®, Aluminum, Alloy 6061-T6 Extrusion, Diamond-Vented (9" Width), 1-1/2" Channel Depth, Diamond-Serrated Surface, 1" Wide Integral Nosing on One Side of Tread Plank Length, CP-PG-930 Plank Grating Stair Tread Carrier Plates Available Separately, 12% Open Area, T709150212
McNICHOLS® Stair Treads Plank Grating, Extruded Stair Tread Plank, DIAMONDBACK®, Aluminum, Alloy 6061-T6 Extrusion, Diamond-Vented (9" Width), 1-1/2" Channel Depth, Diamond-Serrated Surface, 1" Wide Integral Nosing on One Side of Tread Plank Length, CP-PG-930 Plank Grating Stair Tread Carrier Plates Available Separately, 12% Open Area, T709150212

McNICHOLS® Stair Treads

Plank Grating, Extruded Stair Tread Plank, DIAMONDBACK®, Aluminum, Alloy 6061-T6 Extrusion, Diamond-Vented (9" Width), 1-1/2" Channel Depth, Diamond-Serrated Surface, 1" Wide Integral Nosing on One Side of Tread Plank Length, CP-PG-930 Plank Grating Stair Tread Carrier Plates Available Separately, 12% Open Area
McNICHOLS® Plank Grating, Extruded Stair Tread Plank, DIAMONDBACK®, Aluminum, Alloy 6061-T6 Extrusion, Mill Finish, Diamond-Vented (9" Width), 1-1/2" Channel Depth, Diamond-Serrated Surface, Long Way of Opening (LWO) Parallel to Length of Extruded Stair Tread Plank, Holes Sheared Through Both Ends of Extruded Stair Tread Plank Parallel to Width of Extruded Stair Tread Plank, 1" Wide Integral Nosing on One Side of Tread Plank Length, CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-1/8" Height x 9" Width, 3/16" Wide Shelf 1-1/2" from Top Edge) Available Separately, 12% Open Area

ITEM T709150212 - 9" x 144" - In-Stock!




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number T709150212
Product Line Stair Treads
Main Product Line Plank Grating
Construction Type Extruded Stair Tread Plank
Series Type & Name Extruded Stair Tread Plank - DIAMONDBACK®
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 6061-T6 (6061T6)
Material Finish Mill Finish
Gauge/Thickness Aluminum Extrusion
Surface Profile Diamond-Vented (9" Width) DIAMONDBACK® Extruded Stair Tread Plank
Vent Size 3/4" x 2-1/8"
Vent Shape Diamond
Surface Width 9"
Long Way of Opening (LWO) Parallel to Length of Extruded Stair Tread Plank
Channel Depth 1-1/2"
Product Surface Diamond-Serrated (0.140" Height)
End Pattern Sheared Through Both Ends
Nosing Type 1" Wide Integral Nosing on One Side of Tread Plank Length
Nosing Width 1"
Carrier Plates Attached Available Separately
Carrier Plate Size CP-PG-930 Plank Grating Stair Tread Carrier Plates - Pair (3-1/8" Height x 9" Width, 3/16" Wide Shelf 1-1/2" from Top Edge)
Percent Open Area 12%
Weight 2.60 Lbs./Linear Foot
Product Form Tread Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
9" x 144" (Cut Lengths Available)
Load Table View

Overview

Plank Grating facilitates secure footing on rooftop walkways, catwalks, stairs and other surface applications when safety is critical. This Safety Grating product line is lightweight and easy to cut and fabricate. Made by punching and forming metal, McNICHOLS® Plank Grating comes in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel and Stainless Steel and we carry the nation’s largest inventory of Plank brand names including GRIP STRUT®, PERF-O GRIP®, TRACTION TREAD®, GRATE-LOCK® and DIAMONDBACK®. Different construction types consist of Plank, Walkway (both with Heavy-Duty options), Interlocking, Extruded Interlocking and Heavy-Duty Plank. Additional construction types consist of several Ladder Rung Plank styles, as well as Stair Tread Plank Grating options. An array of heights, widths, surface profiles, thicknesses and more are all part of our complete line of Plank Grating Hole Products!
