McNICHOLS® Fiberglass Grating

Pultruded, MS-T-5020 - DURAGRID®, Fiberglass, SPF Polyester Resin, Yellow, 2.000" Height x 1.000" Top Flange Width T-Bar, Medium Grit Surface, 50% Open Area

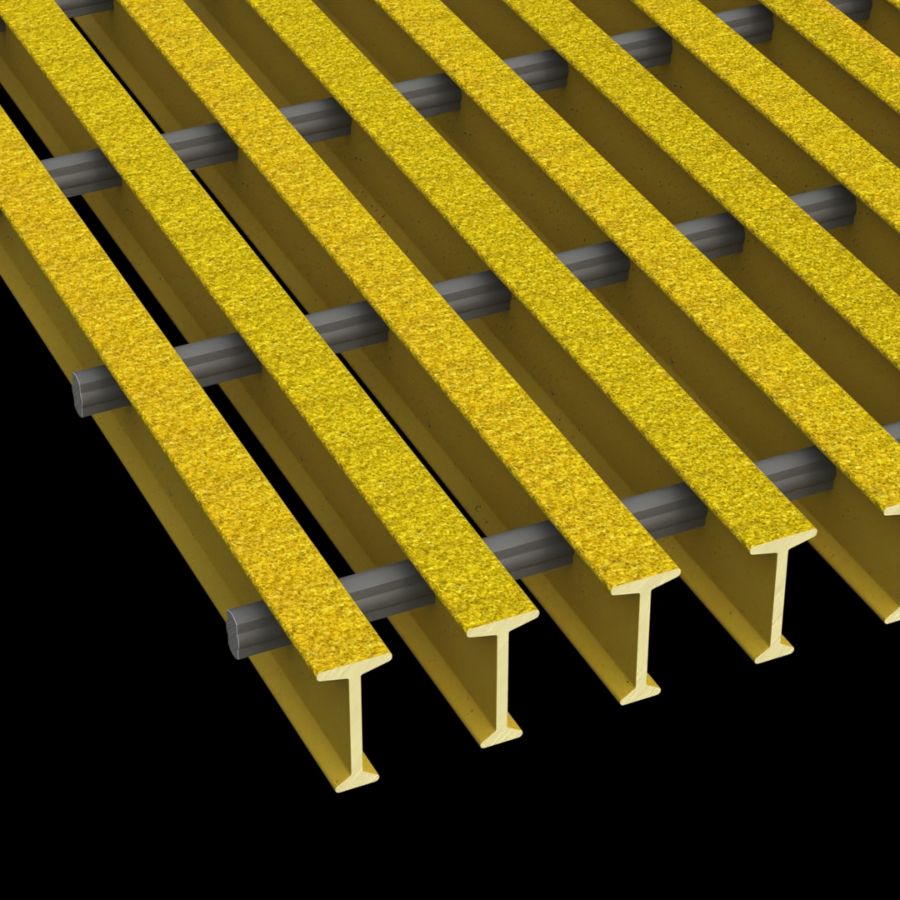

McNICHOLS® Fiberglass Grating, Pultruded, MS-T-5020 - DURAGRID®, Fiberglass, SPF Polyester Resin, Yellow, 2.000" Height x 1.000" Top Flange Width T-Bar Bearing Bars, Spaced 2.000" on Center with 1.000" Clear Space Between Bearing Bar Top Flanges, Medium Grit Surface, Bearing Bars Run Parallel to Length of Panel, Gray Cross Bars Spaced 6" on Center, 50% Open Area

ITEM F182512342 - 48" x 240"




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number F182512342
Product Line Fiberglass Grating
Construction Type Pultruded
Series Type & Name MS-T-5020 - DURAGRID®
Primary Material Fiberglass (FG)
Resin & Type SPF Polyester Resin (SPF)
Bearing Bar Color Yellow
Bearing Bar Height 2.000"
Bearing Bar Top Flange Width 1.000"
Bearing Bar Shape T-Bar
Bearing Bar Spacing 2.000" on Center
Clear Space Between Bearing Bar Top Flanges 1.000"
Clear Space Between Bearing Bar Bottom Flanges 1.400"
Product Surface Medium Grit
Bearing Bar Direction (Span) Parallel to Length of Panel
Cross Bar Color Gray
Cross Bar Spacing 6" on Center
Percent Open Area 50%
UV Protection UV Resistant
Fire Retardant Rated Yes
Flame Spread Rating Class A - Per ASTM E-84
Weight 3.0 Lbs./Square Foot
Product Form Panel
Drawings CAD Drawing - PDF
Sizes (Width x Length) 48" x 240"
Load Table View
