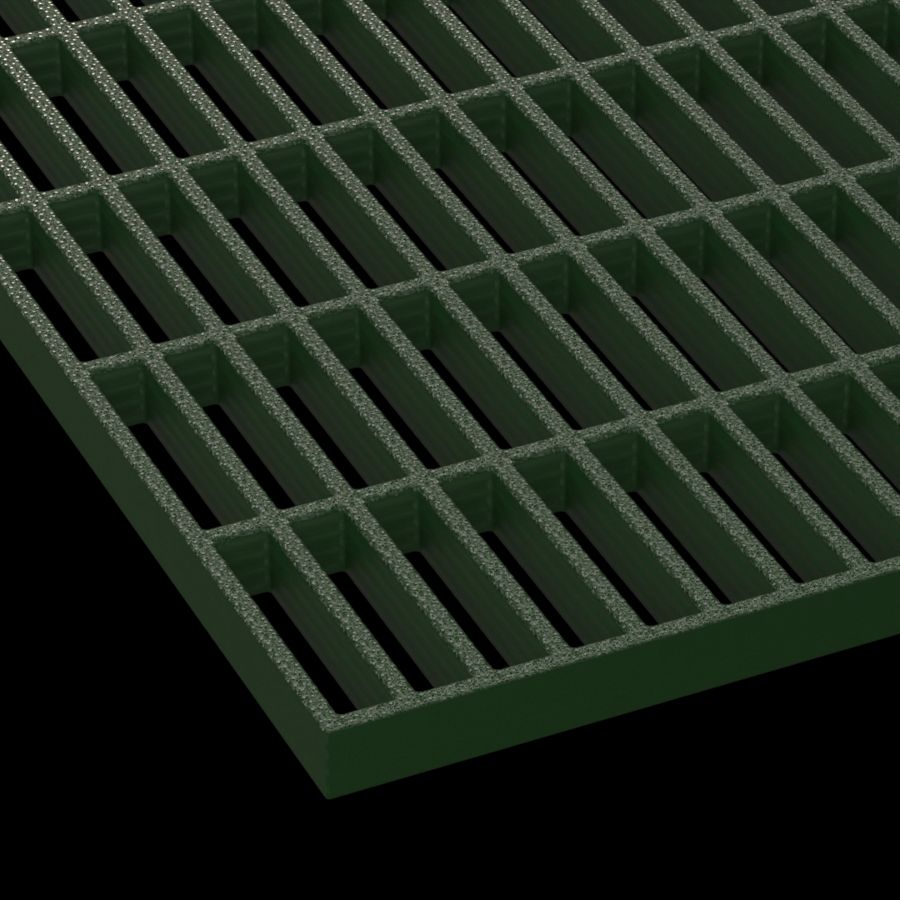

McNICHOLS® Fiberglass Grating

Molded, MS-R-100, Fiberglass, SFF Polyester Resin, Green, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, 67% Open Area
McNICHOLS® Fiberglass Grating, Molded, MS-R-100, Fiberglass, SFF Polyester Resin, Green, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, Long Way of Opening (LWO) Runs Parallel to Width of Panel, 67% Open Area

ITEM F246521GL3 - 36" Width x 144" Length




Please Request Quote

To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Product Line Fiberglass Grating
Construction Type Molded
Series Type & Name MS-R-100
Primary Material Fiberglass (FG)
Resin & Type SFF Polyester Resin (SFF)
Color Green
Grid Size 1" x 4"
Grid Shape Rectangular
Grid Thickness - Top 9/32"
Grid Thickness - Bottom 15/64"
Long Way of Opening Parallel to Width of Panel
Product Surface Grit
ADA Compliant No
Percent Open Area 67%
UV Protection UV Resistant
Fire Retardant Rated Yes
Flame Spread Rating Class A - Per ASTM E-84
Weight 2.80 Lbs./Square Foot
Product Form Panel
Sizes (Width x Length) 36" x 144"
Load Table View
