  4. McNICHOLS® Fiberglass Grating Molded, Rectangular Grid, MS-R-100, Fiberglass, SGF Polyester Resin, Dark Gray, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, 67% Open Area

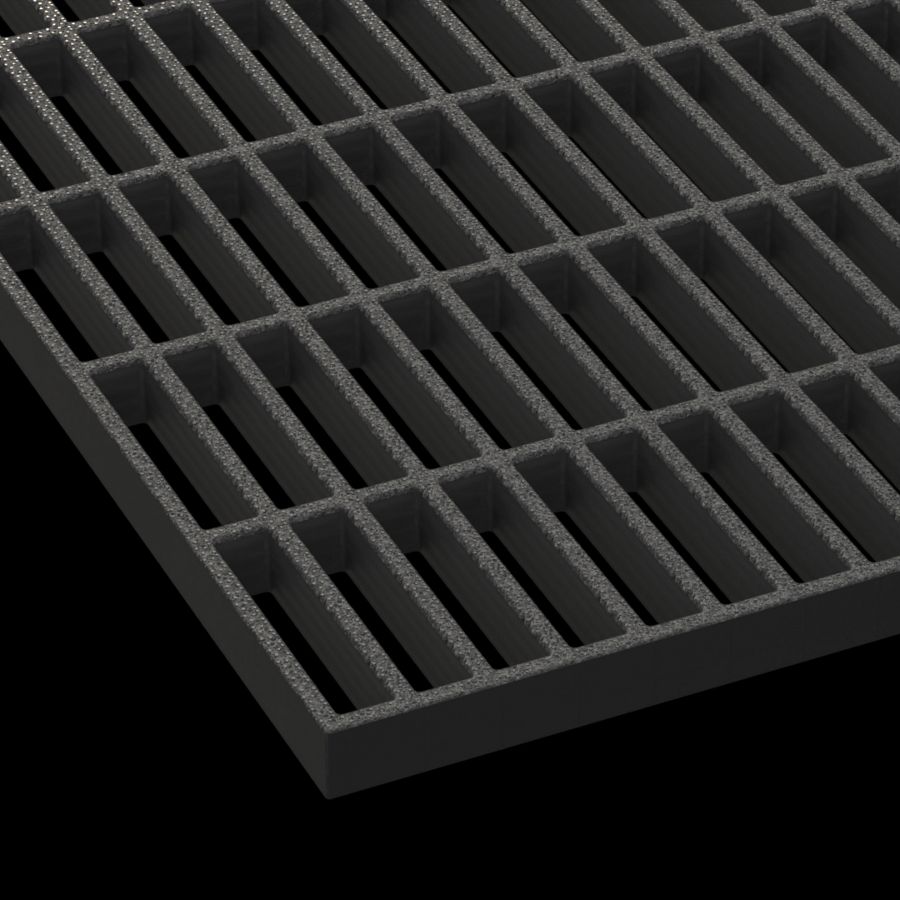

McNICHOLS® Fiberglass Grating Molded, Rectangular Grid, MS-R-100, Fiberglass, SGF Polyester Resin, Dark Gray, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, 67% Open Area, F246111C13
McNICHOLS® Fiberglass Grating Molded, Rectangular Grid, MS-R-100, Fiberglass, SGF Polyester Resin, Dark Gray, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, 67% Open Area, F246111C13

McNICHOLS® Fiberglass Grating

Molded, Rectangular Grid, MS-R-100, Fiberglass, SGF Polyester Resin, Dark Gray, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, 67% Open Area
McNICHOLS® Fiberglass Grating, Molded, Rectangular Grid, MS-R-100, Fiberglass, SGF Polyester Resin, Dark Gray, 1" Grid Height, 1" x 4" Rectangular Grid, Grit Surface, Long Way of Opening (LWO) Runs Parallel to Width of Panel, 67% Open Area

ITEM F246111C13 - 36" x 120"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number F246111C13
Product Line Fiberglass Grating
Construction Type Molded
Grid Shape Rectangular
Series Type & Name MS-R-100
Primary Material Fiberglass (FG)
Resin & Type SGF Polyester Resin (SGF)
Color Dark Gray
Grid Height 1"
Grid Size 1" x 4" on Center
Grid Thickness - Top 9/32"
Grid Thickness - Bottom 15/64"
Product Surface Grit
Long Way of Opening (LWO) Parallel to Width of Panel
Percent Open Area 67%
UV Protection UV Resistant
Fire Retardant Rated Yes
Flame Spread Rating Class A - Per ASTM E-84
Weight 2.80 Lbs./Square Foot
Product Form Panel
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
36" x 120" (Cut Sizes Available)
Load Table View

Overview

Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings. Corrosion-resistant and fire-retardant, this product line is ideal for use outdoors or in corrosive environments. McNICHOLS carries Molded FRP Gratings, including MINI-GRID® Molded Grating as well as DURADEK® and DURAGRID® Pultruded Grating construction types in a variety of sizes, resins and colors. Most Fiberglass Grating has a slip-resistant, gritted surface to help prevent slips and falls.

Ordering

The information provided below is your guide for choosing the right McNICHOLS® Fiberglass Grating product for your project. Ordering information for McNICHOLS® Fiberglass Grating Stair Treads is available by selecting the following link: Specifying & Ordering Fiberglass Grating Stair Treads

1

Application

Consider Fiberglass Grating uses and physical requirements such as exposure to chemicals and/or extreme temperatures. Determine fire retardant needs as well as loading, span and support requirements. Several Fiberglass Grating products comply with the Americans with Disabilities Act (ADA) when installed to written standards. We also carry items that are Virginia Graeme Baker (VGB) Act UV compliant. We invite you to browse Fiberglass Grating applications in our Product and Application Gallery.

2

Construction Type

Choose from a variety of Molded (Square, Rectangular) or Pultruded (I-Bar, T-Bar, Wide T-Bar) construction types.

3

Series Type & Name

Determine the series type and name (MS-S-150, MS-I-6010 - DURAGRID®, etc.) of the Fiberglass Grating product for your project. Items that comply with the Americans with Disabilities Act (ADA) standard will have this language indicated in the product's description and item specifications of the applicable product.

4

Resin & Type

Choose the resin and type for your application (e.g. FFR Polyester, SFF Polyester, SGF Polyester, SPF Polyester, SPH Phenolic, SVF Vinyl Ester, XVE Vinyl Ester). We provide more information on resins, types and descriptions in the link provided in the Charts section on the Fiberglass Grating Resources landing page.

5

Color

Choose the Fiberglass Grating color (e.g. Green, Yellow, etc.) that is right for your project. Fiberglass Grating is supplied in many colors to meet your design needs.

6

Grid Height, Size & Shape

If your selection is Molded Grating, choose the grid height and surface grid pattern (measured in inches on center) and grid shape (square or rectangular).

7

Bearing Bar Size & Shape

If your selection is a Pultruded construction type, choose the bearing bar height and top flange width (measured in inches) and bearing bar shape (I-Bar, T-Bar, Wide T-Bar) of the Fiberglass Grating product.

8

Bearing Bar Spacing

Choose the Pultruded Fiberglass Grating spacing (center to center of bearing bars, between bearing bar top flanges and between bottom bearing bar bottom flanges) desired for your project.

9

Product Surface

Determine if your application requires a concave (Molded construction only) or grit surface. We supply several types of grit surface for Pultruded products, including fine, medium and coarse grit.

10

Percent Open Area

Choose the percentage of open area desired in the panel or pieces of Fiberglass Grating.

11

Span

Choose the direction the Pultruded bearing bars need to run to support the application load. Bearing bar direction is often referred to as span. Clear span refers to the distance between Fiberglass Grating supports. The direction of the Molded grid pattern (Rectangular only) and Pultruded bearing bars is an important installation consideration.

12

Product Size, Form & Quantity

Identify the number of panels (width and length) and/or sizes (cut-to-size pieces, areas, Stair Treads) and cut types (random, uniform, equal stub). Areas exceeding standard panel widths are provided in multiple pieces to width.

13

Special Requirements

Specify any requirements like fabrication, notching, cut-outs, Stair Treads, non-standard tolerances, etc.

14

Accessories

Determine if Fiberglass Grating Accessories like Clips or Fasteners/Hardware, etc. are needed for your project or application.
