  4. McNICHOLS® Decking & Flooring Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area

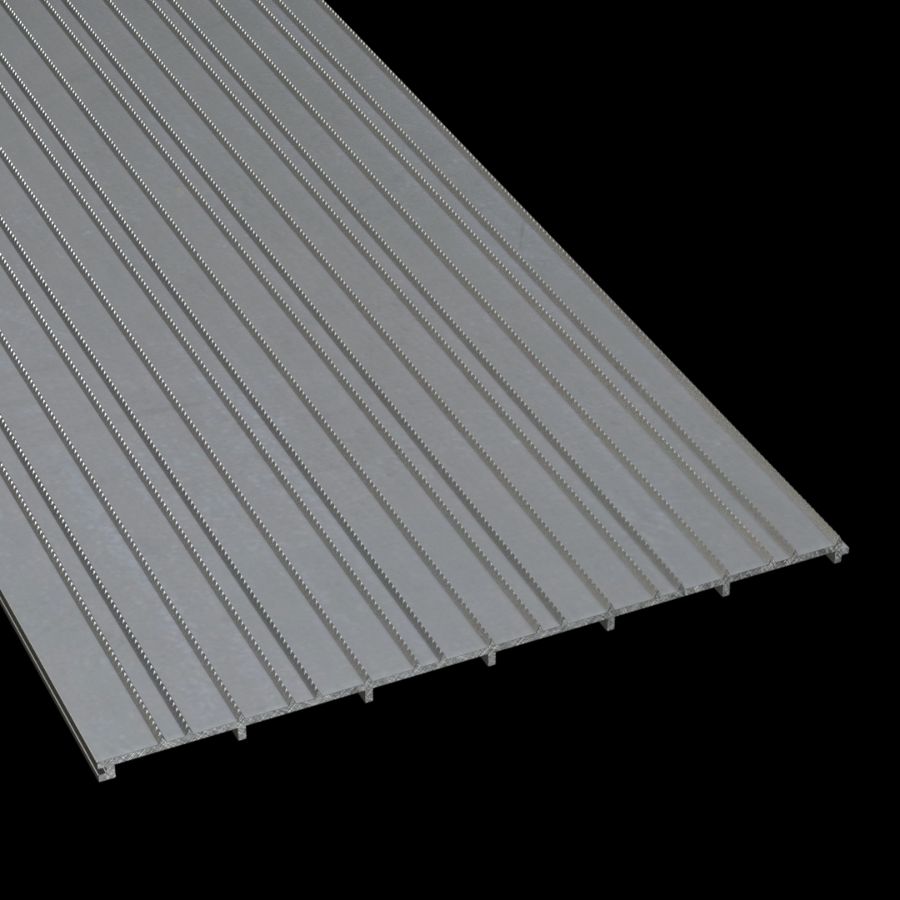

McNICHOLS® Decking & Flooring Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area, T712000112
McNICHOLS® Decking & Flooring Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area, T712000112

McNICHOLS® Decking & Flooring

Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area
McNICHOLS® Decking & Flooring, Extruded Interlocking Flooring, DIAMONDBACK®, ADA Compliant, Aluminum, Alloy 6061-T6 Extrusion, Mill Finish, Solid (12" Width), 0.360" Height, Interlocking Edges Parallel to Length of Plank, Diamond-Serrated Surface, (ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel), 0% Open Area

ITEM T712000112 - 12" x 144"





To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number T712000112
Product Line Decking & Flooring
Construction Type Extruded Interlocking Flooring
Series Type & Name Extruded Interlocking Flooring - DIAMONDBACK® - ADA
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 6061-T6 (6061T6)
Material Finish Mill Finish
Gauge/Thickness Aluminum Extrusion
Surface Profile Solid (12" Width) DIAMONDBACK® Extruded Interlocking Flooring
Surface Width 12"
Height 0.360"
Product Surface Diamond-Serrated (0.140" Height)
ADA Compliant ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel
Interlocking Edges Parallel to Length of Plank
Percent Open Area 0%
Weight 1.97 Lbs./Linear Foot
Product Form Plank
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Width x Length)
12" x 144" (Cut Lengths Available)
Load Table View

Overview

McNICHOLS carries a wide selection of Decking and Flooring products with safe, slip-resistant surface properties for walkways, platforms and other pedestrian travel applications. We carry five main Decking and Flooring product families: Extruded Interlocking Flooring, Overlapping Decking, Interlocking Plank Flooring, Fiberglass Flooring and Metal Flooring. McNICHOLS stocks Aluminum, Fiberglass, Carbon Steel and Stainless Steel materials, and we carry the DIAMONDBACK®, TRACTION TREAD™ and SAFPLATE® Flooring brand names. Decking types in inventory include SAFDECK® and SAFPLANK®.

Ordering

The following selections are important considerations to help you choose the right McNICHOLS® Decking & Flooring product for your project or application. Please specify:

1

Application

Consider Decking and Flooring applications/uses and physical requirements for your interior or exterior application. Loading, span and support needs as well as traffic requirements such as pedestrian or hand cart, etc. are important considerations. All of our Decking and Flooring products comply with the Americans with Disabilities Act (ADA) when installed to written standards. We invite you to browse Decking and Flooring applications in our Product and Application Gallery.

2

Construction Type

Choose from our inventory of Overlapping Decking, Extruded Interlocking Flooring, Interlocking Plank Flooring, Fiberglass Flooring and Metal Flooring construction types.

3

Series Type & Name

Specify the Decking or Flooring series type and name for your project. This includes the construction type and trade name of the product (e.g. TRACTION TREAD™ Metal Flooring). All items comply with the Americans with Disabilities Act (ADA) standard and have this language indicated in each item's description and specifications.

4

Primary Material / Product Finish

Select the primary material type including Aluminum, Carbon Steel, Fiberglass or Stainless Steel. Metal inventory is typically “mill finish” unless otherwise specified. We provide more information on Primary Material Types and Product Finishes in the links provided in the Overview section on the Decking & Flooring Resources landing page.

5

Resin & Type

If you are selecting a product with Fiberglass as the primary material, choose the resin and type for your application (SPF Polyester Resin). We provide more information on resins, types and descriptions in the link provided in the Charts section on the Decking & Flooring Resources landing page.

6

Color

If your product selection is a Fiberglass Decking or Flooring item, choose the preferred color for your application.

7

Gauge / Thickness

Choose the material gauge number or thickness in inches for your Decking or Flooring product selection. Extruded products do not have an actual gauge due to the manufacturing process. These items are specified as an Extrusion.

8

Surface Profile / Product Height

Choose a surface profile for your application. A surface profile includes the type of surface (e.g. Solid, Vented, etc.) or the type of opening (e.g. Button-Top, etc.) and the width of the product measured in inches (e.g. Solid (24" Width), Button-Top (36" Width), etc.). Additionally, some items also require a product height selection.

9

Percent Open Area

Identify the percentage of open area (if applicable) desired in your Decking or Flooring product selection.

10

Product Size, Form & Quantity

Depending on your product selection, determine the number of Sheets, Planks or Plates including cut-to-size pieces for your project.

11

Special Requirements

Specify any requirements such as fabrication, non-standard tolerances, etc.

12

Accessories

If your product selection is Extruded Interlocking Flooring, please specify the number of Bar Interlocks required for your application.

Tables

Helpful McNICHOLS® Decking & Flooring load tables to save, print or share!

Extruded Interlocking Flooring - Aluminum
Overlapping Decking - Fiberglass
Interlocking Plank Flooring - Fiberglass
Fiberglass Flooring - Fiberglass
Metal Flooring - Aluminum with Aluminum Oxide Grit Coating
Metal Flooring - Carbon Steel with Aluminum Oxide Grit Coating
Print Header Image
PAGE 1 OF 1
McNICHOLS® Decking & Flooring Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area

McNICHOLS® Decking & Flooring

Extruded Interlocking Flooring, DIAMONDBACK®, ADA, Aluminum, Alloy 6061-T6 Extrusion, Solid (12" Width), 0.360" Height, Diamond-Serrated Surface, 0% Open Area

McNICHOLS® Decking & Flooring, Extruded Interlocking Flooring, DIAMONDBACK®, ADA Compliant, Aluminum, Alloy 6061-T6 Extrusion, Mill Finish, Solid (12" Width), 0.360" Height, Interlocking Edges Parallel to Length of Plank, Diamond-Serrated Surface, (ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel), 0% Open Area

ITEM T712000112 - 12" x 144"

ITEM SPECIFICATIONS
Item Number T712000112
Product Line Decking & Flooring
Construction Type Extruded Interlocking Flooring
Series Type & Name Extruded Interlocking Flooring - DIAMONDBACK® - ADA
Primary Material Aluminum (AL)
Alloy, Grade or Type Alloy 6061-T6 (6061T6)
Material Finish Mill Finish
Gauge/Thickness Aluminum Extrusion
Surface Profile Solid (12" Width) DIAMONDBACK® Extruded Interlocking Flooring
Surface Width 12"
Height 0.360"
Product Surface Diamond-Serrated (0.140" Height)
ADA Compliant ADA Compliant Product When Installed Using Multiple Pieces to Width Regardless of the Direction of Travel
Interlocking Edges Parallel to Length of Plank
Percent Open Area 0%
Weight 1.97 Lbs./Linear Foot
Print Footer Image
Print Header Image
PAGE 2 OF 2
Product Form Plank
Sizes (Width x Length) 12" x 144" (Cut Lengths Available)
