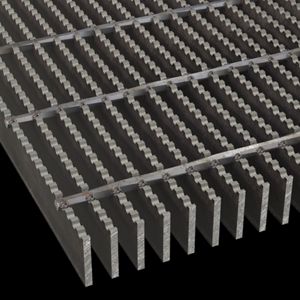

McNICHOLS® Bar Grating
Standard-Duty Welded, Rectangular Bar, CMW-4-150 - CLOSE MESH, ADA, 11-W-4 Spacing, Carbon Steel, Hot Rolled, 1-1/2" x 3/16" Rectangular Bar, Serrated Surface, 70% Open AreaMcNICHOLS® Bar Grating, Standard-Duty Welded, Rectangular Bar, CMW-4-150 - CLOSE MESH, ADA Compliant, 11-W-4 Spacing, Carbon Steel, Hot Rolled, Mill Finish, 1-1/2" Height x 3/16" Thick Rectangular Bearing Bars, Spaced 11/16" on Center with 1/2" Clear Space Between Bearing Bars, Serrated Surface, (ADA Compliant Product When Direction of Bearing Bars (Span) Installed Perpendicular to Dominant Direction of Travel), Bearing Bars Run Parallel to Length of Panel, Cross Bars Spaced 4" on Center, 70% Open Area
ITEM 6602316232 - 36" x 240" - In-Stock!
