McNICHOLS® Accessories

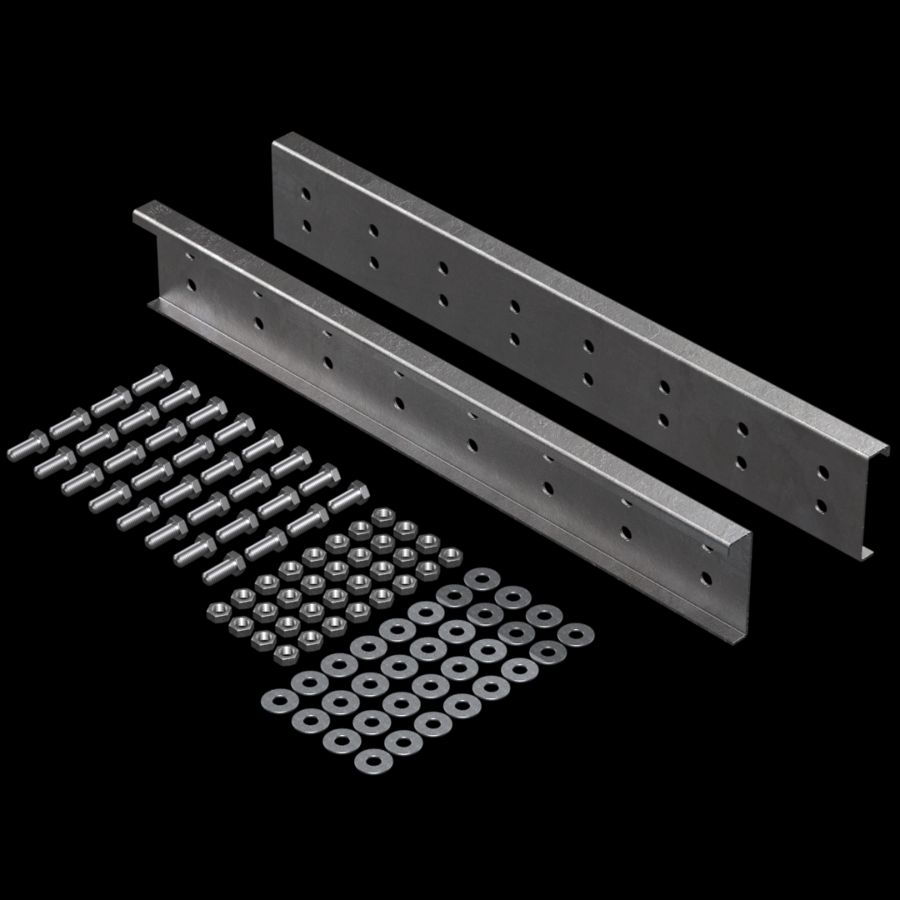

Splice Plate Kit, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), SP-10DU-30 Splice Plate Kit (4-1/2" Height x 30" Width), Hardware Integral with Splice Plate Kit

McNICHOLS® Accessories, Splice Plate Kit, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), SP-10DU-30 Splice Plate Kit (4-1/2" Height x 30" Width), Used to Attach Two Walkway Channel Ends Together in a Continuous Run, Fits Carbon Steel and Galvanized Steel GRIP STRUT® Walkway Plank Grating (Hardware Integral with Splice Plate Kit)

ITEM 20SP12DU30 - 4-1/2" x 30"

print icon
Please Request Quote print icon



print icon BUY THIS SIZE ONLINE
Please Request Quote




print icon BUY THIS SIZE ONLINE
Please Request Quote

Item Number 20SP12DU30
Product Line Accessories
Accessory Type Splice Plate Kit
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Accessory Profile SP-10DU-30 Splice Plate Kit
Plate Type Two Plates with 16 Pre-Punched 9/16" Diameter Holes
Bolt Type 32 - No. 13 Hex Bolts (1/2" Diameter x 1-1/4" Length)
Washer Type 32 - Round Flat Washers (1/2" Diameter)
Nut Type 32 - No. 13 Hex Nuts (1/2" Diameter)
Width 5/8" (Top Flange)
Height 4-1/2"
Length 30"
Compatible With Fits Carbon Steel and Galvanized Steel GRIP STRUT® Walkway Plank Grating
Weight 18.10 Lbs./Kit
Product Form Kit
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Height x Length) 4-1/2" x 30"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
