McNICHOLS® Accessories

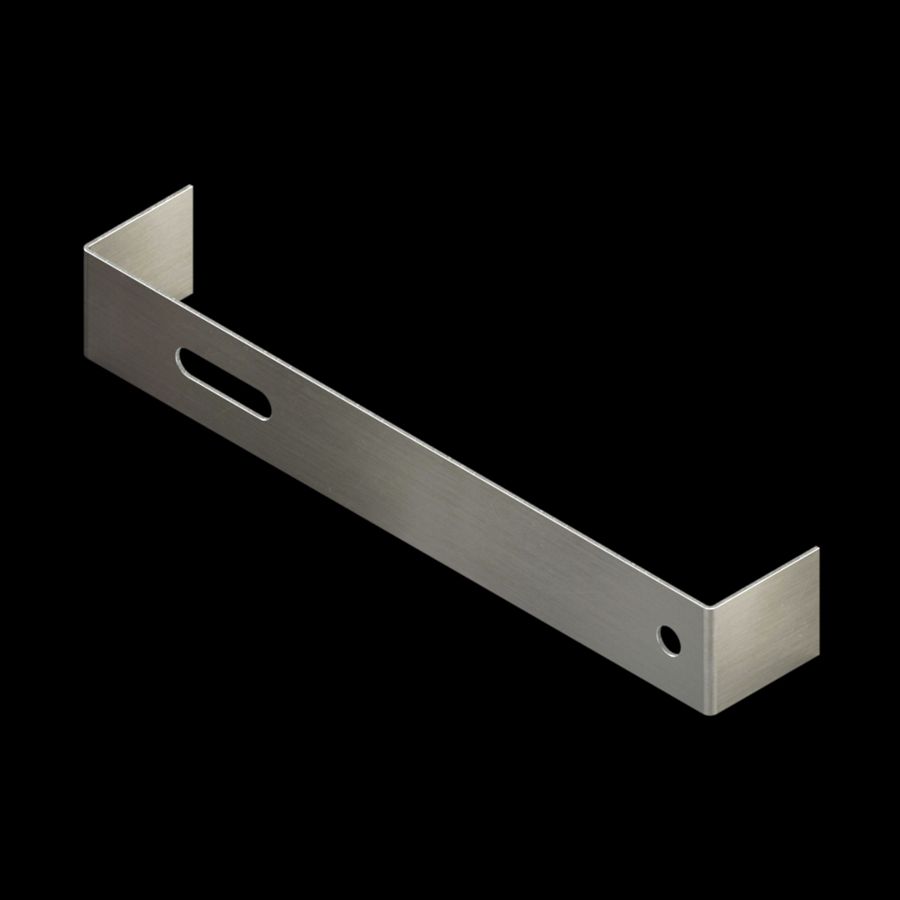

Carrier Plates - Plank Grating, Stainless Steel, Type 304, 16 Gauge (.0625" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-5/8" Width)

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Stainless Steel, Type 304, Mill Finish, 16 Gauge (.0595" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-5/8" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Plank Grating Stair Tread Length (Span), Fits Stainless Steel 5-Diamond (11-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP520799 - 1-11/16" x 11-5/8" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 20CP520799	20CP520799
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Plank Grating	Carrier Plates - Plank Grating
Primary Material Stainless Steel (SS)	Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)	Type 304 (304)
Material Finish Mill Finish	Mill Finish
Gauge/Thickness 16 Gauge (.0625" Thick)	16 Gauge (.0625" Thick)
Accessory Profile CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-5/8" Width), Punched with a Mounting Slot and Bolt Hole	CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-5/8" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"	1-11/16"
Width 11-5/8"	11-5/8"
Flange Size 2"	2"

Slot Size (Width x Height) 1-3/4" x 7/16"	1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"	27/32"
Ctr of Slot to Ctr of Bolt Hole 8-1/8"	8-1/8"
Ctr of Slot to Nearest Outside Edge 2-3/4"	2-3/4"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"	3/4"
Compatible With Fits Stainless Steel 5-Diamond(11-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth	Fits Stainless Steel 5-Diamond(11-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 1.10 Lbs./Pair	1.10 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 1-11/16" x 11-5/8"	1-11/16" x 11-5/8"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
