  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 13 Gauge (.0934" Thick), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width)
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 13 Gauge (.0934" Thick), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width), M0EP210999
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 13 Gauge (.0934" Thick), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width), M0EP210999

McNICHOLS® Accessories

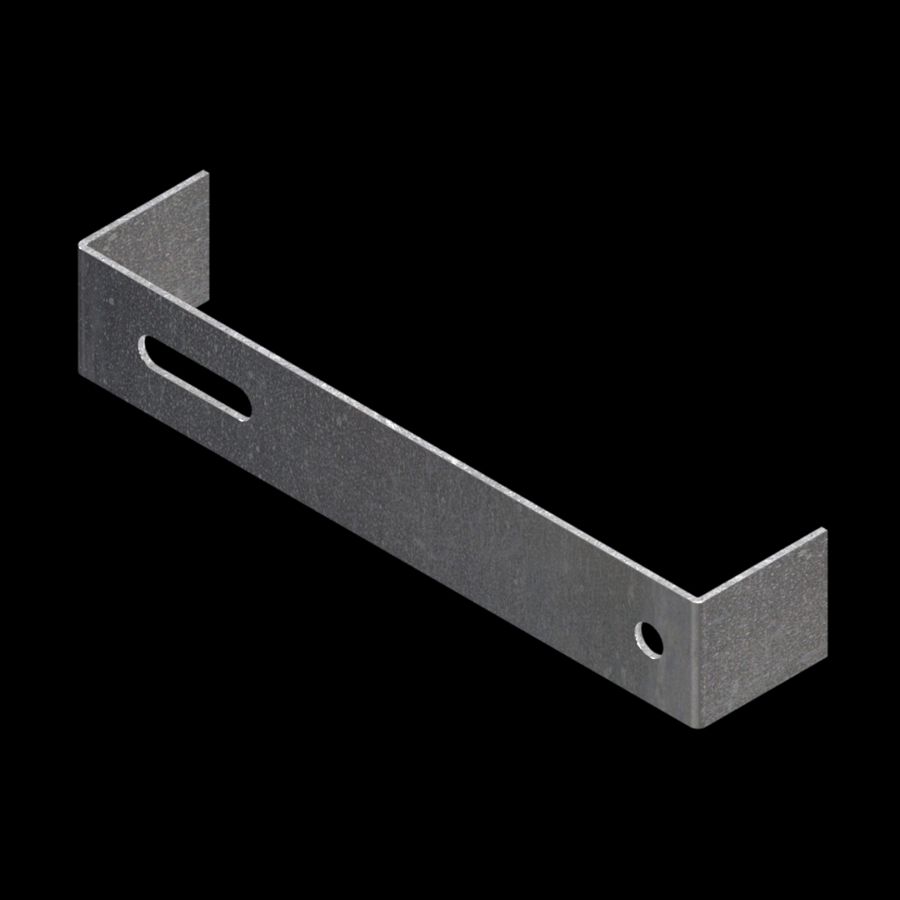

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 13 Gauge (.0934" Thick), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width)
McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 13 Gauge (.0934" Thick), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Plank Grating Stair Tread Length (Span), Fits Galvanized Steel 5-Hole (10" Width) PERF-O GRIP® Plank Grating with a 2" Channel Depth and Galvanized Steel 15-Row (10" Width) TRACTION TREAD® Plank Grating with a 2" Channel Depth

ITEM M0EP210999 - Pair - In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number M0EP210999
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 13 Gauge (.0934" Thick)
Accessory Profile CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-5/8" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"
Width 9-5/8"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 7"
Ctr of Slot to Nearest Outside Edge 1-7/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Galvanized Steel 5-Hole (10" Width) PERF-O GRIP® Plank Grating With a 2" Channel Depth and Galvanized Steel 15-Row (10" Width) TRACTION TREAD® Plank Grating with a 2" Channel Depth
Weight 1.10 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 1-11/16" x 9-5/8"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!

Ordering

Content coming soon!

Charts

Content currently unavailable.

Tables

Content currently unavailable.
