  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width)
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width), 20CP520999
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width), 20CP520999

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width)

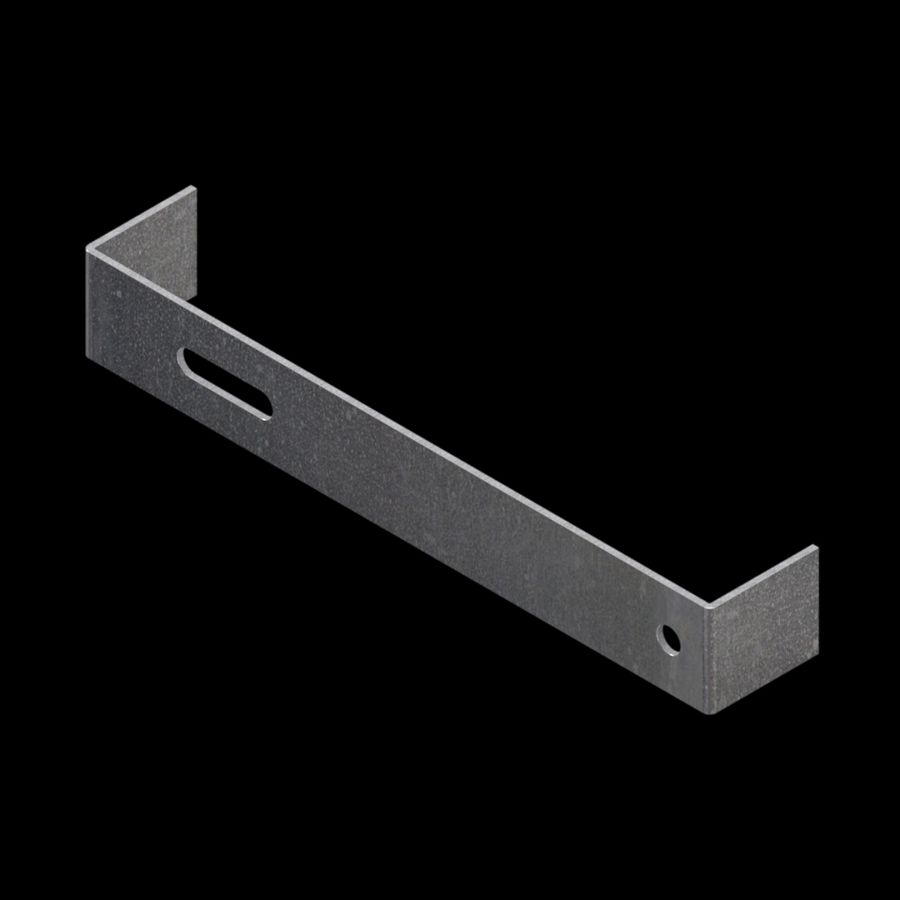

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Plank Grating Stair Tread Length (Span), Fits Galvanized Steel 5-Diamond (11-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP520999 - Pair - In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 20CP520999
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Accessory Profile CP-PG-520 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-1/2" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"
Width 11-1/2"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 8-1/8"
Ctr of Slot to Nearest Outside Edge 2-5/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Galvanized Steel 5-Diamond (11-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 1.54 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 1-11/16" x 11-1/2"
