  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-415-N Plank Grating Stair Tread Plank Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width)
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-415-N Plank Grating Stair Tread Plank Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width), 20CP415N99
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-415-N Plank Grating Stair Tread Plank Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width), 20CP415N99

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-415-N Plank Grating Stair Tread Plank Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width)

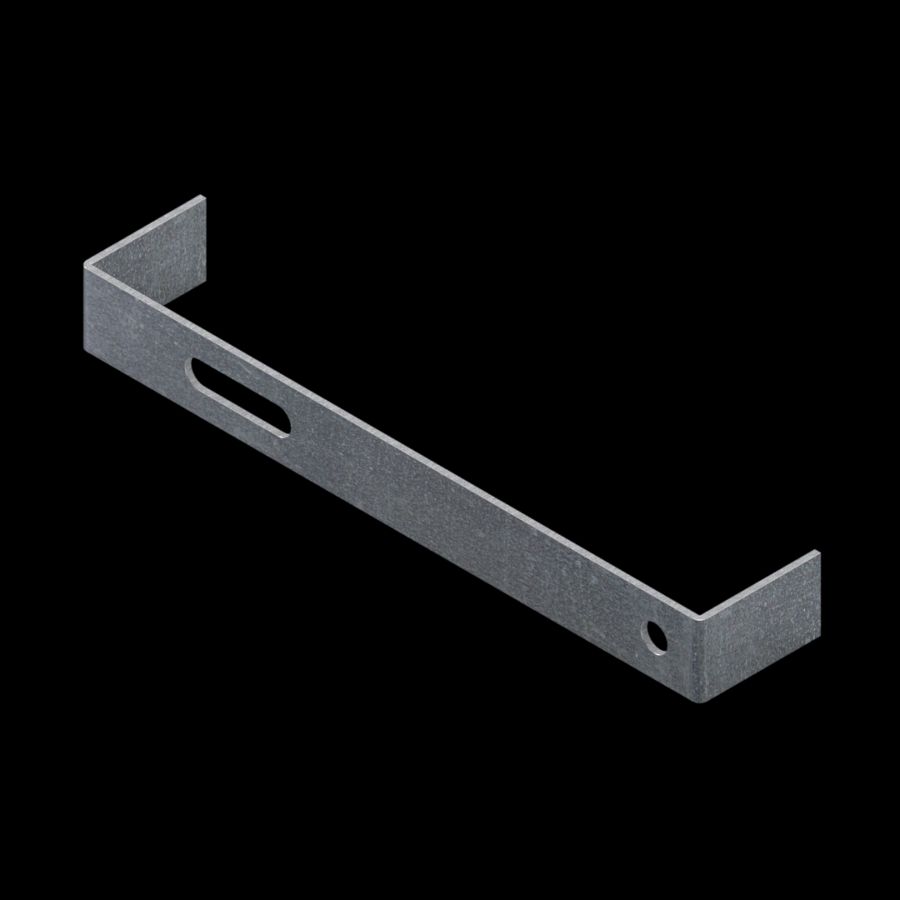

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), CP-PG-415-N Plank Grating Stair Tread Plank Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width), Punched with a Slot and Bolt Hole, Carrier Plates designed to be Inserted/Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Galvanized Steel 4-Diamond (10-1/2" Width) GRIP STRUT® Stair Tread Plank Grating with a 1-1/4" Wide Flat Shelf for 1-1/4" Wide Cast Abrasive Nosing on the Leading Edge of Stair Tread Plank and with a 1-1/2" Channel Depth

ITEM 20CP415N99 - Pair - In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 20CP415N99
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Accessory Profile CP-PG-415-N Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 10-1/4" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-3/16"
Width 10-1/4"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 19/32"
Ctr of Slot to Ctr of Bolt Hole 6-7/8"
Ctr of Slot to Nearest Outside Edge 2-5/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Galvanized Steel 4-Diamond-(10-1/2" Width) GRIP STRUT® Stair Tread Plank Grating with a 1-1/4" Wide Flat Shelf for Nosing on the Leading Edge of Plank and with a 1-1/2" Channel Depth
Weight 1.00 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 1-3/16" x 10-1/4"
