  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width)
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), 20CP220999
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), 20CP220999

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width)

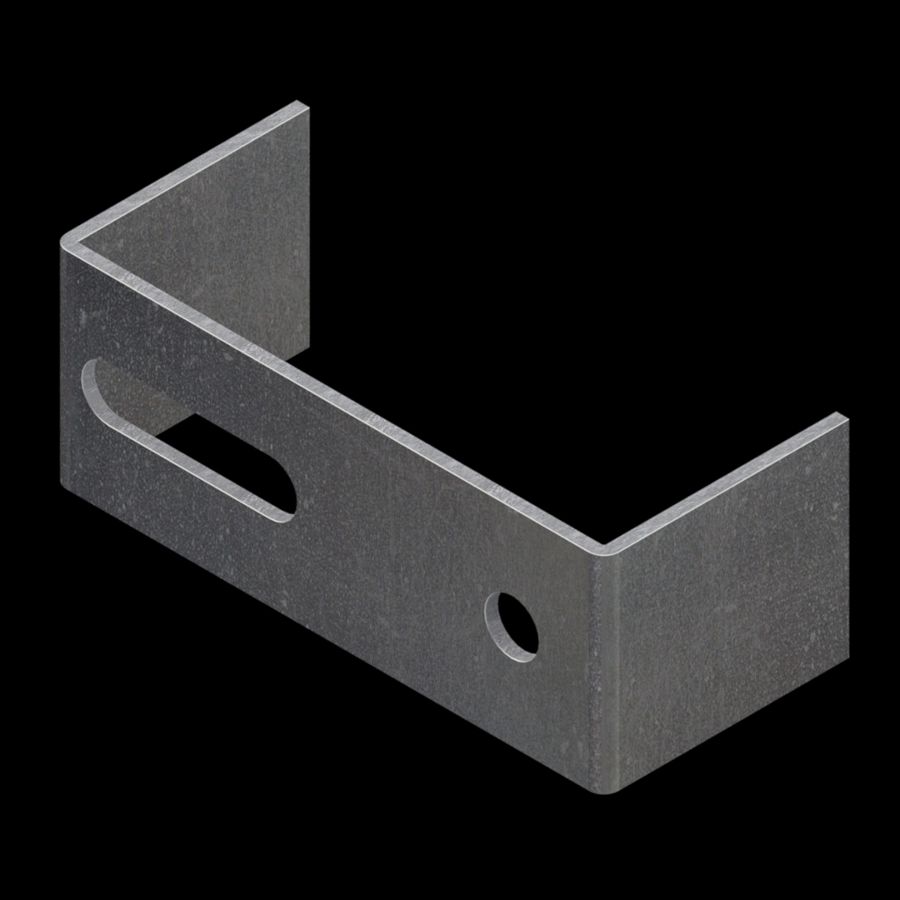

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP220999 - Pair - In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 20CP220999
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Accessory Profile CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"
Width 4-1/2"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 2-5/8"
Ctr of Slot to Nearest Outside Edge 1-1/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 0.20 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 1-11/16" x 4-1/2"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!

Ordering

Content coming soon!

Charts

Content currently unavailable.

Tables

Content currently unavailable.

Print Header Image
PAGE 1 OF 1
McNICHOLS® Accessories Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width)

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width)

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Galvanized Steel, Pre-Galvanized, Mill Finish, 12 Gauge (.1084" Thick), CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP220999 - Pair

ITEM SPECIFICATIONS
Item Number 20CP220999
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Galvanized Steel (GV)
Alloy, Grade or Type Pre-Galvanized (PG)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1084" Thick)
Accessory Profile CP-PG-220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 4-1/2" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"
Width 4-1/2"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 2-5/8"
Ctr of Slot to Nearest Outside Edge 1-1/8"
Print Footer Image
Print Header Image
PAGE 2 OF 2
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Galvanized Steel 2-Diamond (4-3/4" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 0.20 Lbs./Pair
Product Form Pair
Sizes (Height x Width) 1-11/16" x 4-1/2"
