Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, 12 Gauge (.1046" Thick), CP-PG-420 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-1/4" Width)

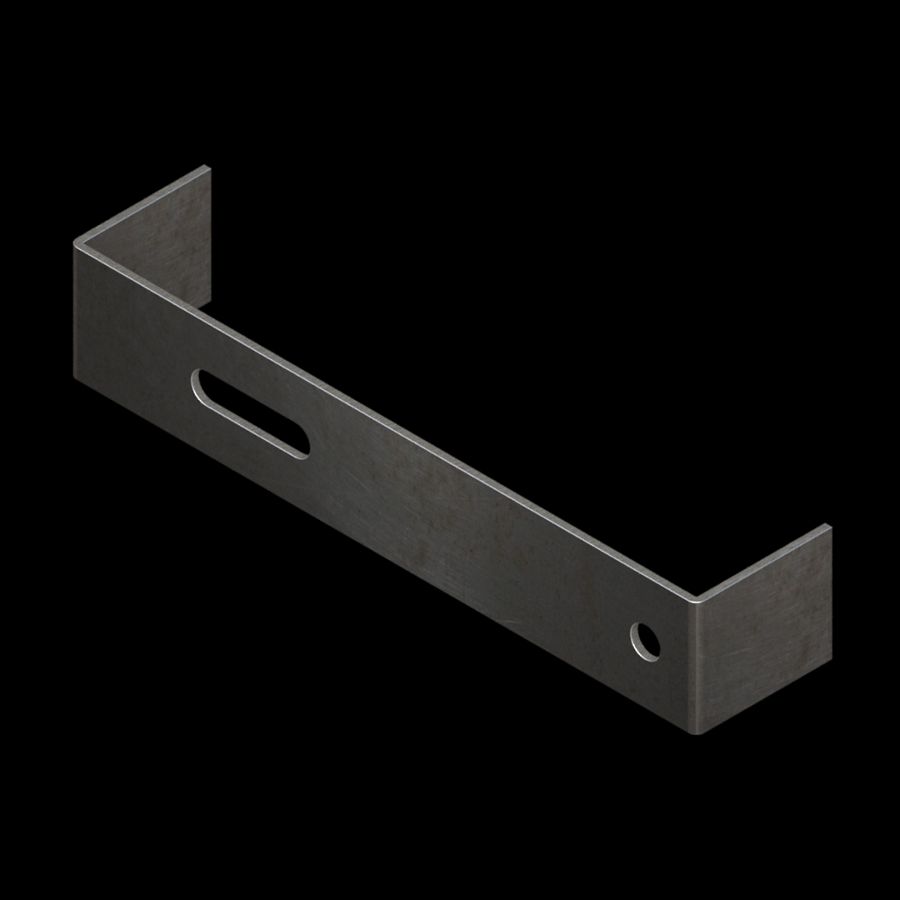

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, Mill Finish, 12 Gauge (.1046" Thick), CP-PG-420 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-1/4" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Carbon Steel 4-Diamond (9-1/2" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP420699 - 1-11/16" x 9-1/4" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 20CP420699	20CP420699
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Plank Grating	Carrier Plates - Plank Grating
Primary Material Carbon Steel (CS)	Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)	Hot Rolled (HR)
Material Finish Mill Finish	Mill Finish
Gauge/Thickness 12 Gauge (.1046" Thick)	12 Gauge (.1046" Thick)
Accessory Profile CP-PG-420 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-1/4" Width), Punched with a Mounting Slot and Bolt Hole	CP-PG-420 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 9-1/4" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"	1-11/16"
Width 9-1/4"	9-1/4"
Flange Size 2"	2"

Slot Size (Width x Height) 1-3/4" x 7/16"	1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"	27/32"
Ctr of Slot to Ctr of Bolt Hole 5-7/8"	5-7/8"
Ctr of Slot to Nearest Outside Edge 2-11/16"	2-11/16"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"	3/4"
Compatible With Fits Carbon Steel 4-Diamond (9-1/2" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth	Fits Carbon Steel 4-Diamond (9-1/2" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 0.88 Lbs./Pair	0.88 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 1-11/16" x 9-1/4"	1-11/16" x 9-1/4"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
