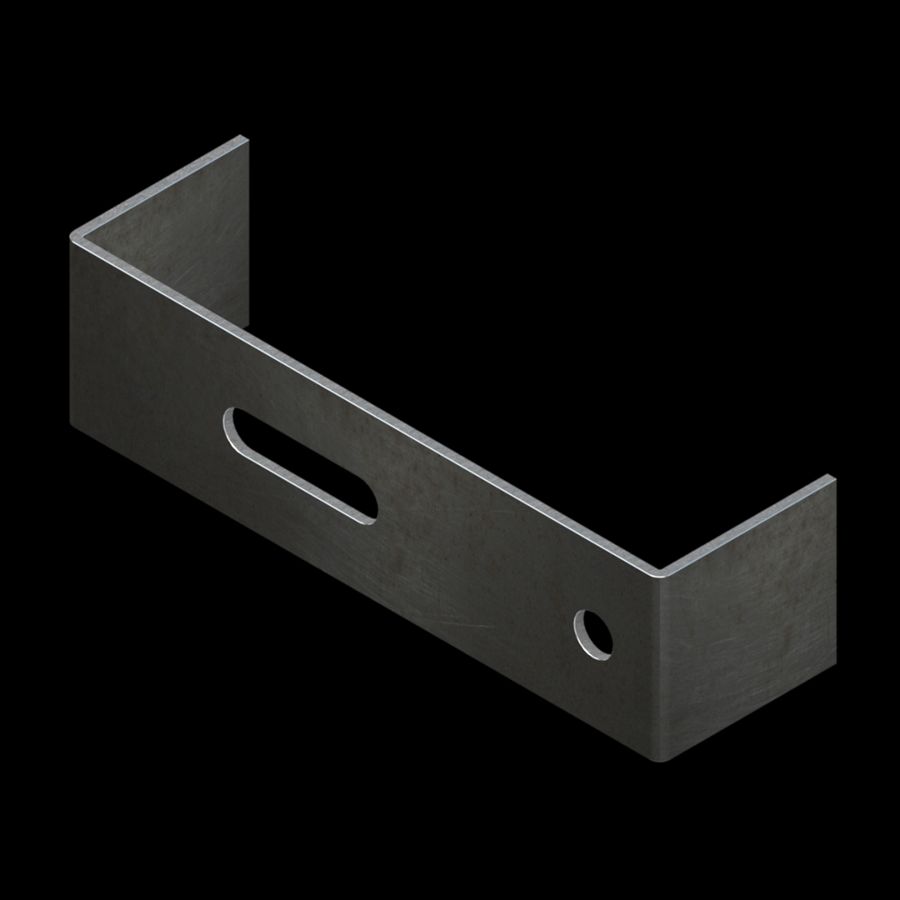

Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, 12 Gauge (.1046" Thick), CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-13/16" Height x 6-11/16" Width)
McNICHOLS® Accessories, Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, Mill Finish, 12 Gauge (.1046" Thick), CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-13/16" Height x 6-11/16" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Carbon Steel 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP320699 - Pair In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 20CP320699
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1046" Thick)
Accessory Profile CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-13/16" Height x 6-11/16" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-13/16"
Width 6-11/16"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 29/32"
Ctr of Slot to Ctr of Bolt Hole 3-3/8"
Ctr of Slot to Nearest Outside Edge 2-11/16"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Carbon Steel 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 0.75 Lbs./Pair
Product Form Pair
Sizes 1-13/16" Height x 6-11/16" Width

Overview

McNICHOLS provides a wide selection of product Accessories—Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more—specifically for our product offerings. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results.
