McNICHOLS® Accessories

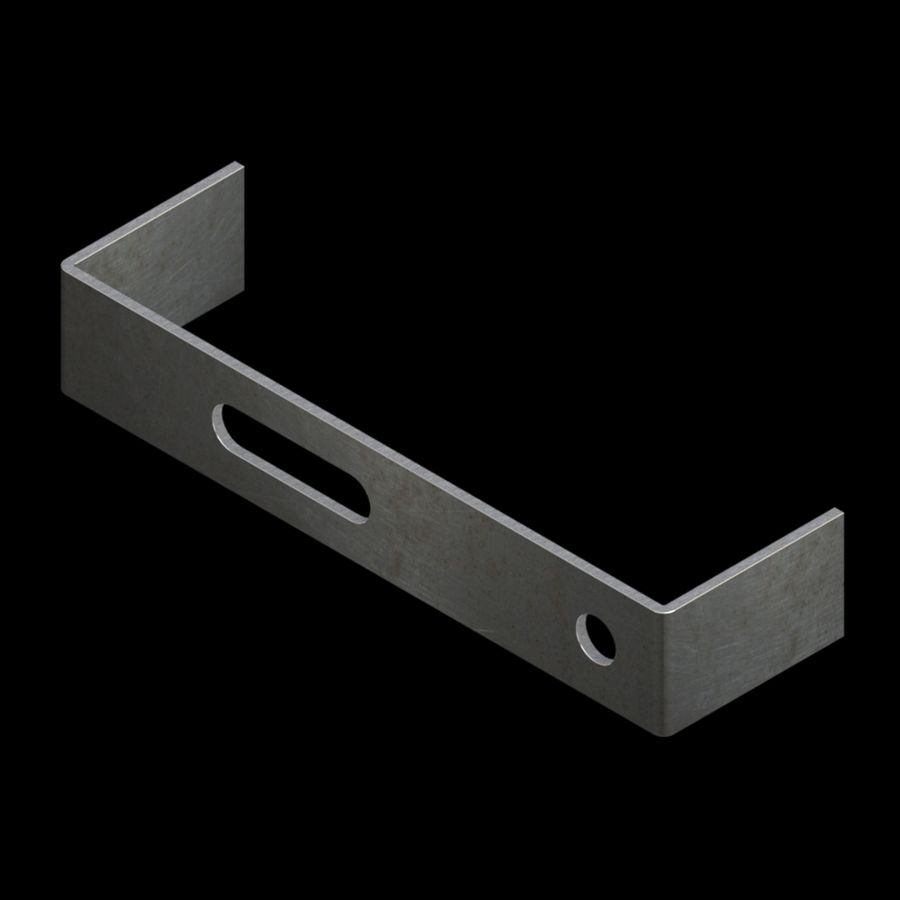

Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, 12 Gauge (.1046" Thick), CP-315 Stair Tread Carrier Plates (Pair)
McNICHOLS® Accessories, Carrier Plates - Plank Grating, Carbon Steel, Hot Rolled, Mill Finish, 12 Gauge (.1046" Thick), CP-315 Stair Tread Carrier Plates (Pair), Punched with a Mounting Slot and Bolt Hole, Fits Carbon Steel 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth

ITEM 20CP315699 - Pair




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 20CP315699
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Carbon Steel (CS)
Alloy, Grade or Type Hot Rolled (HR)
Material Finish Mill Finish
Gauge/Thickness 12 Gauge (.1046" Thick)
Accessory Profile CP-315 Stair Tread Carrier Plates (Pair)
Height 1-3/16"
Width 6-11/16"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr. of Slot/Bolt Hole to Top/Btm. Edges 19/32"
Ctr. of Slot to Ctr. of Bolt Hole 3-3/8"
Ctr. of Slot to Nearest Outside Edge 2-5/8"
Ctr. of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Carbon Steel 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth
Weight 0.69 Lbs./Pair
Product Form Pair

Overview

McNICHOLS provides a wide selection of product Accessories—Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more—specifically for our product offerings. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results.
