McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-1220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-11/16" Width)

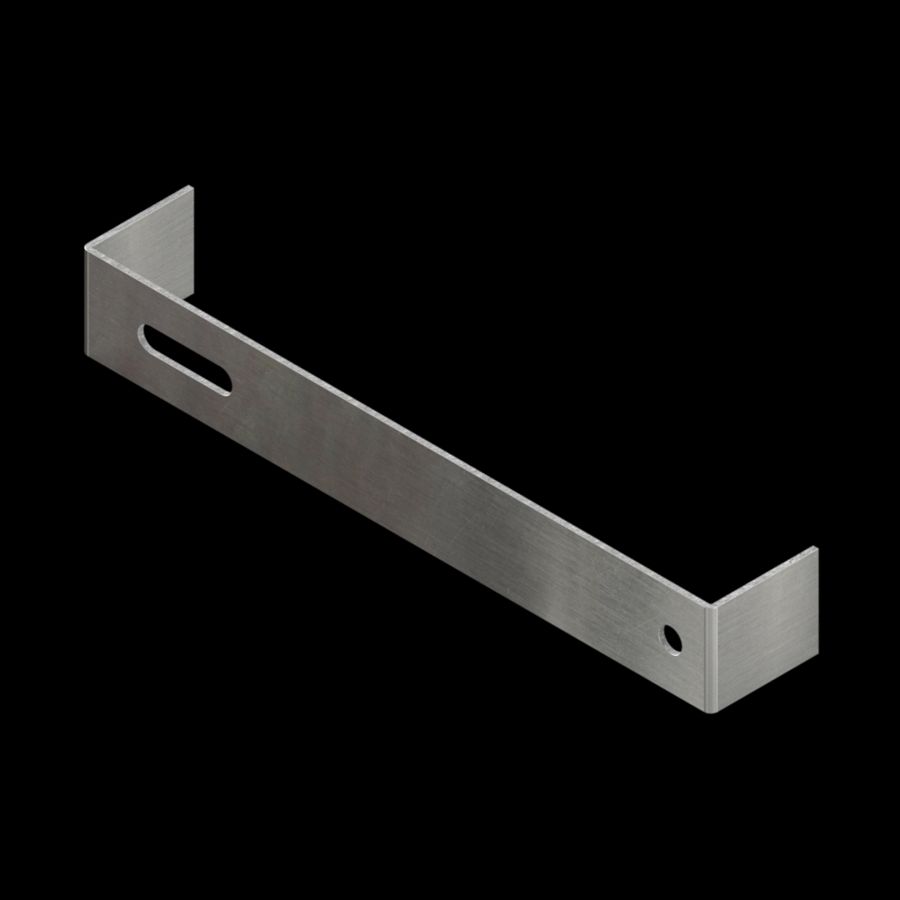

Due to limitations and inconsistencies of digital displays, the rendering above is a representation of the raw materials. Actual products may differ slightly in appearance.

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-1220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-11/16" Width)

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, Mill Finish, .1000" Thick (10 Gauge), CP-PG-1220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-11/16" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Aluminum 6-Hole (12" Width) PERF-O GRIP® Plank Grating with a 2" Channel Depth and Aluminum Button-Top (12" Width) TRACTION TREAD™ Plank Grating with a 2" Channel Depth

ITEM M0EP212999 - 1-11/16" x 11-11/16" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number M0EP212999	M0EP212999
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Plank Grating	Carrier Plates - Plank Grating
Primary Material Aluminum (AL)	Aluminum (AL)
Alloy, Grade or Type Aluminum Alloy (ALALLY)	Aluminum Alloy (ALALLY)
Material Finish Mill Finish	Mill Finish
Gauge/Thickness .1000" Thick (10 Gauge)	.1000" Thick (10 Gauge)
Accessory Profile CP-PG-1220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-11/16" Width), Punched with a Mounting Slot and Bolt Hole	CP-PG-1220 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 11-11/16" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"	1-11/16"
Width 11-11/16"	11-11/16"
Flange Size 2"	2"

Slot Size (Width x Height) 1-3/4" x 7/16"	1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"	27/32"
Ctr of Slot to Ctr of Bolt Hole 9"	9"
Ctr of Slot to Nearest Outside Edge 1-15/16"	1-15/16"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"	3/4"
Compatible With Fits Aluminum 6 Hole (12" Width) PERF-O GRIP® Plank Grating With a 2" Channel Depth and Aluminum Button-Top (12" Width) TRACTION TREAD™ Plank Grating with a 2" Channel Depth	Fits Aluminum 6 Hole (12" Width) PERF-O GRIP® Plank Grating With a 2" Channel Depth and Aluminum Button-Top (12" Width) TRACTION TREAD™ Plank Grating with a 2" Channel Depth
Weight 0.64 Lbs./Pair	0.64 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 1-11/16" x 11-11/16"	1-11/16" x 11-11/16"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
