McNICHOLS® Accessories

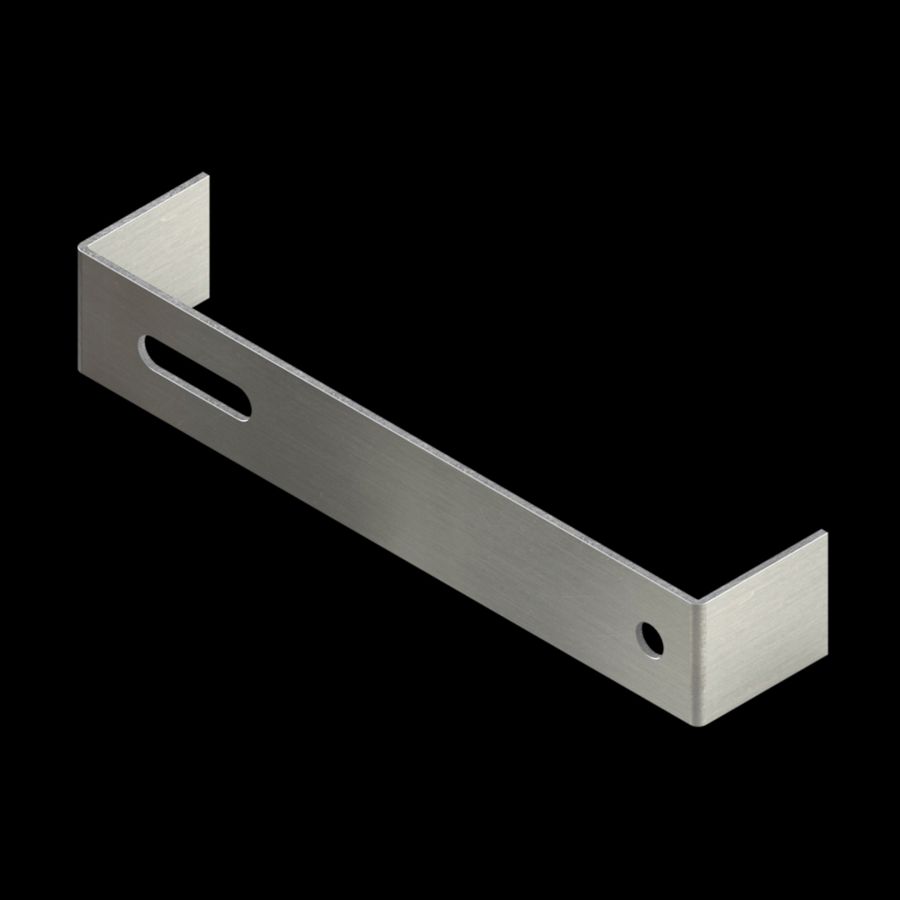

Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-5/8" Height x 9-1/2" Width), Punched with a Mounting Slot and Bolt Hole
McNICHOLS® Accessories, Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, Mill Finish, .1000" Thick (10 Gauge), CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-5/8" Height x 9-1/2" Width), Punched with a Mounting Slot and Bolt Hole, Fits Aluminum 5-Hole (10" Width) PERF-O GRIP® Plank Grating with a 2" Channel Depth and Aluminum 14-Row (10" Width) TRACTION TREAD® Plank Grating with a 2" Channel Depth

ITEM M0EP210799 - Pair




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number M0EP210799
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Aluminum (AL)
Alloy, Grade or Type Aluminum Alloy (ALALLY)
Material Finish Mill Finish
Gauge/Thickness .1000" Thick (10 Gauge)
Accessory Profile CP-PG-1020 Plank Grating Stair Tread Carrier Plates - Pair (1-5/8" Height x 9-1/2" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-5/8"
Width 9-1/2"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 7"
Ctr of Slot to Nearest Outside Edge 1-7/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Aluminum 5 Hole (10" Width) PERF-O GRIP® Plank Grating With a 2" Channel Depth and Aluminum 14 Row (10" Width) TRACTION TREAD® Plank Grating with a 2" Channel Depth
Weight 0.57 Lbs./Pair
Product Form Pair
Sizes 1-5/8" Height x 9-1/2" Width

Overview

McNICHOLS provides a wide selection of product Accessories—Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more—specifically for our product offerings. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results.
