  4. McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width)
McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width), 20CP415899
McNICHOLS® Accessories Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width), 20CP415899

McNICHOLS® Accessories

Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width)

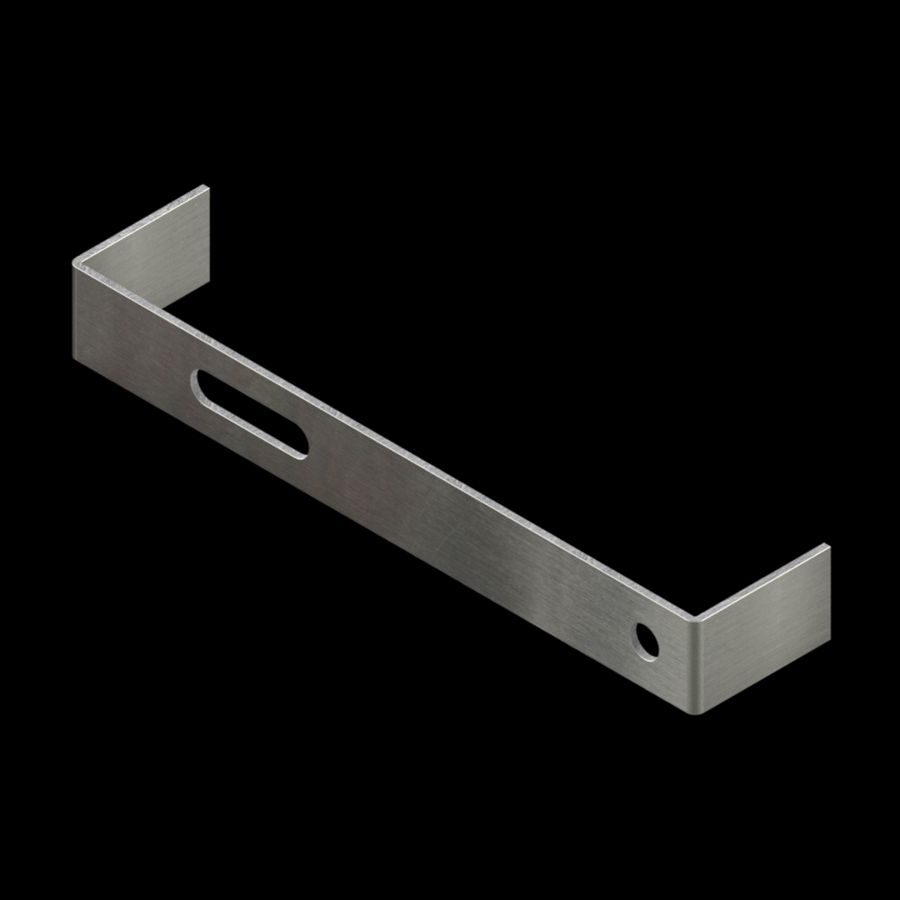

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, Mill Finish, .1000" Thick (10 Gauge), CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Aluminum 4-Diamond (9-1/2" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth

ITEM 20CP415899 - Pair - In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

SPECIFICATIONS

Overview
Ordering

Charts

Tables
Item Number 20CP415899
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Aluminum (AL)
Alloy, Grade or Type Aluminum Alloy (ALALLY)
Material Finish Mill Finish
Gauge/Thickness .1000" Thick (10 Gauge)
Accessory Profile CP-PG-415 Plank Grating Stair Tread Carrier Plates - Pair (1-3/16" Height x 9-1/4" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-3/16"
Width 9-1/4"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 19/32"
Ctr of Slot to Ctr of Bolt Hole 5-7/8"
Ctr of Slot to Nearest Outside Edge 2-11/16"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Aluminum 4-Diamond (9-1/2" Width) GRIP STRUT® Plank Grating with a 1-1/2" Channel Depth
Weight 0.30 Lbs./Pair
Product Form Pair
Drawings CAD Drawing - PDF
CAD Drawing - DWG
Sizes (Height x Width) 1-3/16" x 9-1/4"
