McNICHOLS® Accessories

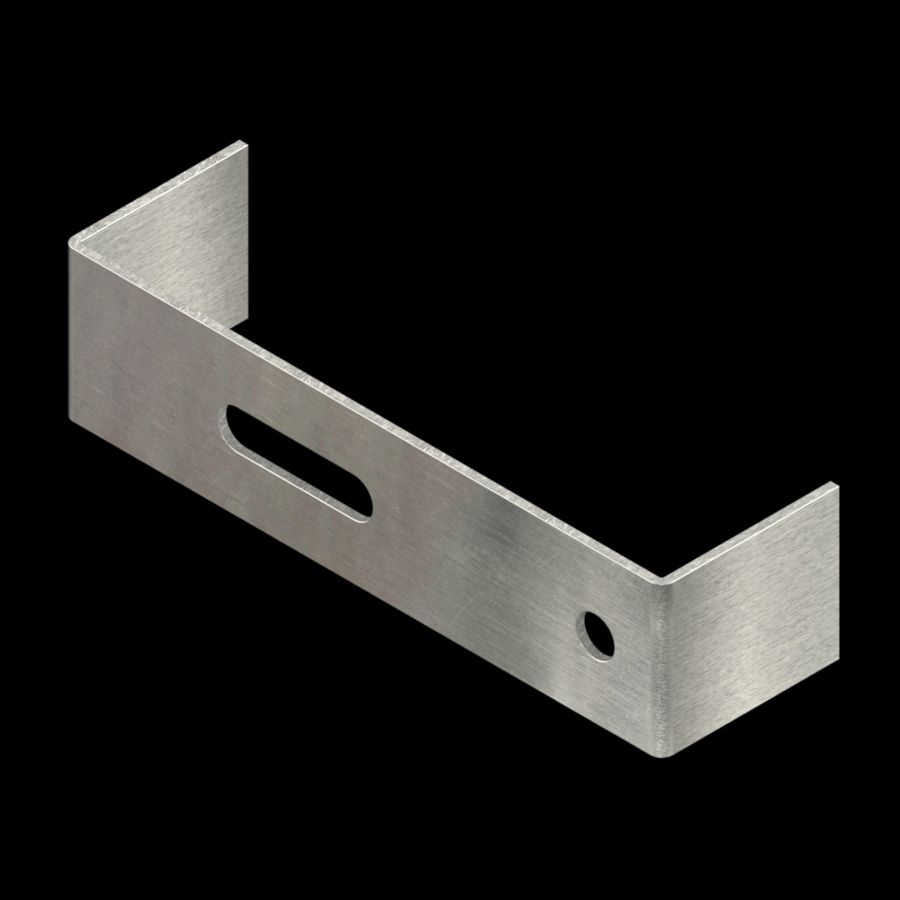

Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, .1000" Thick (10 Gauge), CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 6-3/4" Width)

McNICHOLS® Accessories, Carrier Plates - Plank Grating, Aluminum, Aluminum Alloy, Mill Finish, .1000" Thick (10 Gauge), CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 6-3/4" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are Designed to be Inserted and Welded into Channel Ends Perpendicular to Stair Tread Length (Span), Fits Aluminum 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth

ITEM 20CP320899 - 1-11/16" x 6-3/4" In-Stock!

print icon
Please Request Quote print icon



print icon BUY THIS SIZE ONLINE
Please Request Quote




print icon BUY THIS SIZE ONLINE
Please Request Quote

Item Number 20CP320899
Product Line Accessories
Accessory Type Carrier Plates - Plank Grating
Primary Material Aluminum (AL)
Alloy, Grade or Type Aluminum Alloy (ALALLY)
Material Finish Mill Finish
Gauge/Thickness .1000" Thick (10 Gauge)
Accessory Profile CP-PG-320 Plank Grating Stair Tread Carrier Plates - Pair (1-11/16" Height x 6-3/4" Width), Punched with a Mounting Slot and Bolt Hole
Height 1-11/16"
Width 6-3/4"
Flange Size 2"
Slot Size (Width x Height) 1-3/4" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top/Btm Edges 27/32"
Ctr of Slot to Ctr of Bolt Hole 3-3/8"
Ctr of Slot to Nearest Outside Edge 2-5/8"
Ctr of Bolt Hole to Nearest Outside Edge 3/4"
Compatible With Fits Aluminum 3-Diamond (7" Width) GRIP STRUT® Plank Grating with a 2" Channel Depth
Weight 0.38 Lbs./Pair
Product Form Pair
CAD Drawings PDF - Download Now
DWG - Please Log In
Sizes (Height x Width) 1-11/16" x 6-3/4"

Overview

McNICHOLS provides a wide selection of Accessories specifically for our product offerings, including Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging and more. Accessories complete Hole Product designs with a clean finish, minimal guesswork and optimal long-term results. Please allow us to start and finish your amazing design with McNICHOLS® Product Accessories!
