McNICHOLS® Accessories

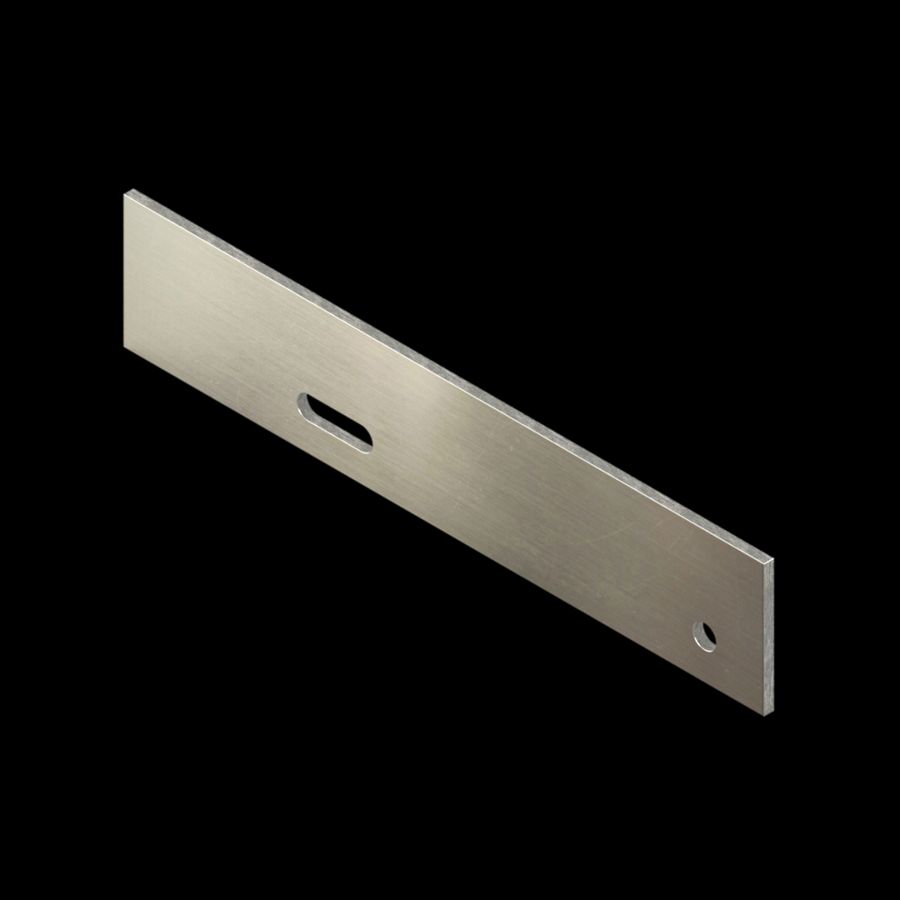

Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Gauge (.1875" Thick), CP-BG-1225 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 12-1/8" Width)
McNICHOLS® Accessories, Carrier Plates - Bar Grating, Stainless Steel, Type 304, Mill Finish, 3/16" Gauge (.1875" Thick), CP-BG-1225 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 12-1/8" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Welded to Open Bearing Bar Ends (and Optional Nosing) Perpendicular to Stair Tread Length (Span), Fits Stainless Steel Bar Grating with 1" Height Rectangular Bearing Bars and 1-1/4" Height Rectangular Bearing Bars

ITEM 6080312099 - 2-1/2" x 12-1/8" In-Stock!




Please Request Quote
To use ADD TO PROJECT LIST, please LOG IN as a Registered User.

Item Number 6080312099
Product Line Accessories
Accessory Type Carrier Plates - Bar Grating
Primary Material Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)
Material Finish Mill Finish
Gauge/Thickness 3/16" Gauge (.1875" Thick)
Accessory Profile CP-BG-1225 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 12-1/8" Width), Punched with a Mounting Slot and Bolt Hole
Height 2-1/2"
Width 12-1/8"
Slot Size (Width x Height) 1-7/16" x 7/16"
Bolt Hole Size (Diameter) 7/16"
Ctr of Slot/Bolt Hole to Top Edge 1-3/4"
Ctr of Slot/Bolt Hole to Btm Edge 3/4"
Ctr of Slot to Ctr of Bolt Hole 7"
Ctr of Slot to Nearest Outside Edge 4"
Ctr of Bolt Hole to Nearest Outside Edge 1-1/8"
Compatible With Fits Stainless Steel Bar Grating with 1" Height Rectangular Bearing Bars and 1-1/4" Height Rectangular Bearing Bars
Weight 3.00 Lbs./Pair
Product Form Pair
Sizes (Height x Width) 2-1/2" x 12-1/8"

Overview

McNICHOLS provides a wide selection of product Accessories—Angles, Carrier Plates, Clips, Flat Bar (Banding), Nosing, U-Edging, and more—specifically for our product offerings. Accessories complete Hole Product designs with a clean finish, minimal guesswork, and optimal long-term results.
