Carrier Plates - Bar Grating, Stainless Steel, Type 304, 3/16" Thick (.1875" Thick), CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 9-3/4" Width)

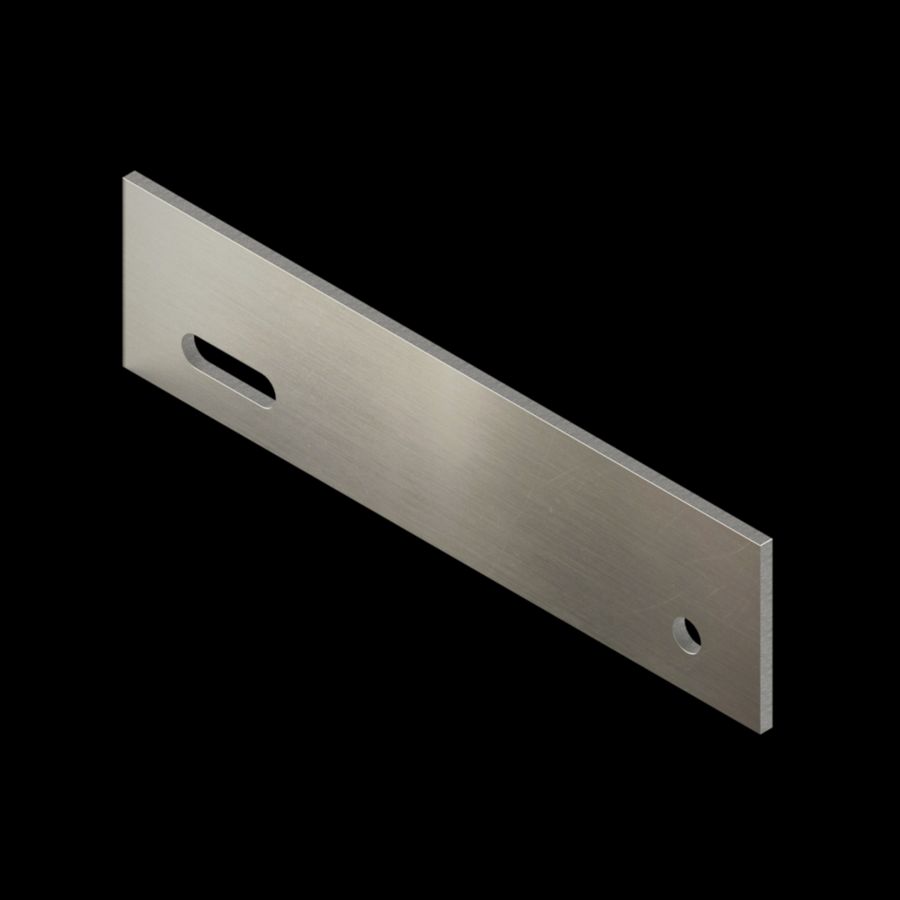

McNICHOLS® Accessories, Carrier Plates - Bar Grating, Stainless Steel, Type 304, Mill Finish, 3/16" Thick (.1875" Thick), CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 9-3/4" Width), Punched with a Mounting Slot and Bolt Hole, Carrier Plates are designed to be Welded to Open Bearing Bar Ends (and Optional Nosing) Perpendicular to Stair Tread Length (Span), Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars

ITEM 6080310999 - 2-1/2" x 9-3/4" - In-Stock!

Please Request Quote

Qty

Subtotal

Qty

Subtotal

SPECIFICATIONS

Overview

Ordering

Charts

Tables

SPECIFICATIONS

Overview

Ordering

Charts

Tables

Specifications

Item Number 6080310999	6080310999
Product Line Accessories	Accessories
Accessory Type Carrier Plates - Bar Grating	Carrier Plates - Bar Grating
Primary Material Stainless Steel (SS)	Stainless Steel (SS)
Alloy, Grade or Type Type 304 (304)	Type 304 (304)
Material Finish Mill Finish	Mill Finish
Thickness 3/16" Thick (.1875" Thick)	3/16" Thick (.1875" Thick)
Accessory Profile CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 9-3/4" Width), Punched with a Mounting Slot and Bolt Hole	CP-BG-925 Bar Grating Stair Tread Carrier Plates - Pair (2-1/2" Height x 9-3/4" Width), Punched with a Mounting Slot and Bolt Hole
Height 2-1/2"	2-1/2"
Width 9-3/4"	9-3/4"
Slot Size (Width x Height) 1-7/16" x 7/16"	1-7/16" x 7/16"

Bolt Hole Size (Diameter) 7/16"	7/16"
Ctr of Slot/Bolt Hole to Top Edge 1-3/4"	1-3/4"
Ctr of Slot/Bolt Hole to Btm Edge 3/4"	3/4"
Ctr of Slot to Ctr of Bolt Hole 7"	7"
Ctr of Slot to Nearest Outside Edge 1-5/8"	1-5/8"
Ctr of Bolt Hole to Nearest Outside Edge 1-1/8"	1-1/8"
Compatible With Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars	Fits Stainless Steel Bar Grating with 1" Height x 3/16" Thick Rectangular Bearing Bars and 1-1/4" Height x 3/16" Thick Rectangular Bearing Bars
Weight 2.75 Lbs./Pair	2.75 Lbs./Pair
Product Form Pair	Pair
CAD Drawings PDF - Download Now DWG - Please Log In	PDF - Download Now DWG - Please Log In
Sizes (Height x Width) 2-1/2" x 9-3/4"	2-1/2" x 9-3/4"
